Guerilla Stylesheet Reference

Here, you can find the stylesheet selectors for the various UI that is found primarily in Guerilla. Note that some of these may also be used in other tools - for instance, both Sapien and Foundry are capable of providing a tag editor UI - and as such, will use the same controls and thus the same stylesheet selectors as below.

Tag Editor Frame

The frame of any tag editing UI can be selected with #tag_editor_frame, and is a QFrame.

Tag Fields

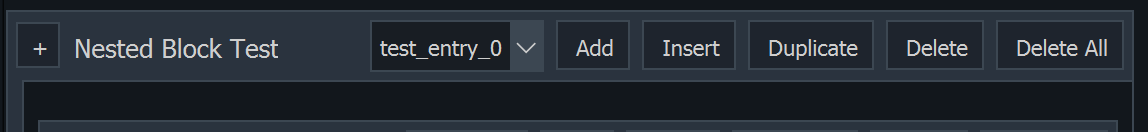

Tag Blocks

The primary selector for a tag block is #ui_tag_block. Below are the child controls of a tag block that can be selected for and styled.

Title	Selector	Description	Type
Expand/Collapse Button	#btn_expand_collapse	The expand/collapse button in the tag header.	QPushButton
Expand/Collapse Button Frame	#btn_expand_collapse_frame	A frame around the Expand/Collapse button. Used to add a second border around the button in the Classic theme.	QFrame
Block Header Panel	#block_header_bg	The top header panel of the block, containing various block controls.	QFrame
Block Left Border	#block_edge_bg	The left border edge of the tag block.	QFrame
Block Title	#lbl_block_title	The block title label.	QLabel
Entry List ComboBox	#cbox_entries	The ComboBox containing the list of block entries.	QComboBox
Add Button	#btn_add	The 'Add' button.	QPushButton
Insert Button	#btn_insert	The 'Insert' button.	QPushButton
Duplicate Button	#btn_duplicate	The 'Duplicate' button.	QPushButton
Delete Button	#btn_delete	The 'Delete' button.	QPushButton
Delete All Button	#btn_delete_all	The 'Delete All' button.	QPushButton
Field List Container	#block_fields_frame	The container that contains all block fields.	QFrame

Comments

The primary selector for a comment field is #ui_comment_field. Below are the child controls of a comment that can be selected for and styled.

Title	Selector	Description	Type
Comment Frame	#comment_frame	The frame and container around the comment.	QFrame
Comment Title	#lbl_title	The title of the comment.	QLabel
Comment Description	#lbl_explanation	The description of the comment. Not always present.	QLabel

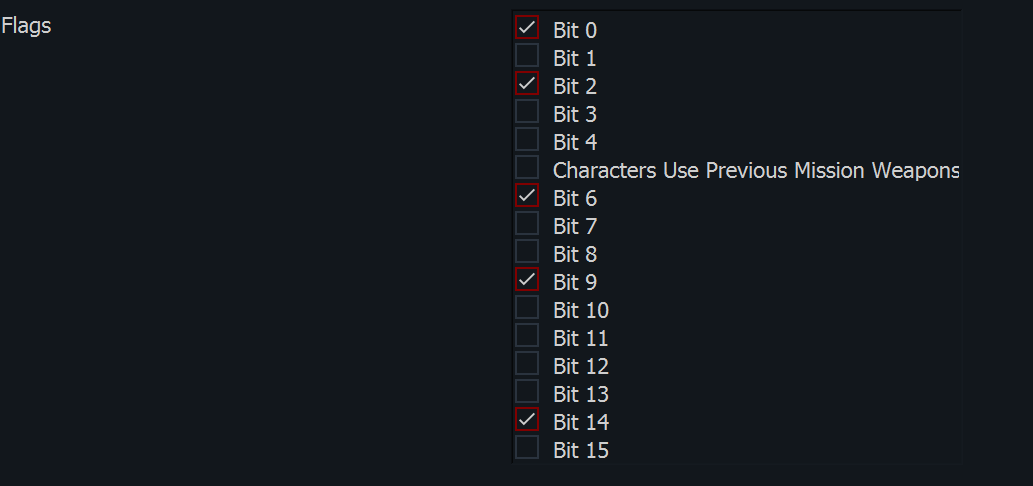

Bitfields

Bitfield fields can be selected using #bitfield_field_{id}, replacing {id} with the ID of the field.

The container of the bitfield flags a QFrame, which can be selected using #bitfield_frame.

Each bitfield bit is a QCheckBox widget. If you need or wish to select for an exact bit/flag ID, you can do so with #bitfield_bit_{id}, replacing {id} with the ID of the bit.

Enums

Enum fields can selected by using #enum_field_{id}, replacing {id} with the ID of the field. The field value is represented using a QComboBox as a child control.

Ascii

Ascii fields can selected by using #ascii_field_{id}, replacing {id} with the ID of the field. The field value is represented using a QLineEdit as a child control.

Integers (int8, int16, int32)

Integer fields can selected by using #int_field_{id}, replacing {id} with the ID of the field. The field value is represented using a QLineEdit as a child control.

Floats (float32)

Float fields can selected by using #float_field_{id}, replacing {id} with the ID of the field. The field value is represented using a QLineEdit as a child control.

Data References (dataref)

Dataref fields can be selected by using #dataref_field_{id}, replacing {id} with the ID of the field. Below are the child controls of a dataref that can be selected for and styled.

Title	Selector	Description	Type
Data Input Field	#tb_data	The large input field, used to view and modify the a dataref's data.	QPlainTextEdit
"View As" Label	#lbl_view_as	The "View As" label.	QLabel
"View As" Dropdown	#cbox_view_as	The "View As" dropdown button.	QComboBox
Data Size Label	#lbl_size	The "Size" label.	QLabel
Data Size Input Field	#tb_size	The "Size" input field, used to modify a dataref's data size.	QLineEdit

Tag References (tagref)

Dataref fields can be selected by using #tagref_field_{id}, replacing {id} with the ID of the field.

Below are the child controls of a tagref that can be selected for and styled. Fields are grouped into two tables for both the classic and modern tagref appearances.

Modern Tagref Properties (Default)

Title	Selector	Description	Type
Wrapper Frame	#frame_modern	Container frame surrounding the field. This is invisible by default and used for layout purposes.	QFrame
Tag Class Dropdown	#cbox_m_tag_class	Dropdown button allowing the user to select the class of the desired tag.	QComboBox
Tag Dropdown	#cbox_m_tag_dropdown	Dropdown button allowing the user to select a tag, filtered based on the selected tag class.	QComboBox
Browse Button	#btn_m_browse	Button that allows the user to browse the filesystem for a tag.	QPushButton
Open Button	#btn_m_open	Button that allows the user to quickly open the referenced tag for editing.	QPushButton
Import Button	#btn_m_import	Button that allows the user to quickly import an asset as a tag.	QPushButton
Search Button	#btn_m_search	Button that allows the user to search the current project for a tag.	QPushButton
Clear Button	#btn_m_clear	Button that allows the user to clear/null the current tagref value.	QPushButton

Classic Tagref Properties

Title	Selector	Description	Type
Wrapper Frame	#frame_classic	Container frame surrounding the field. This is invisible by default and used for layout purposes.	QFrame
Tag Input Field	#tb_c_tag_path	Text field allowing the user to view and/or manually type out the path to the desired tag.	QLineEdit
Browse Button	#btn_c_browse	Button that allows the user to browse the filesystem for a tag.	QPushButton
Open Button	#btn_c_open	Button that allows the user to quickly open the referenced tag for editing.	QPushButton
Import Button	#btn_c_import	Button that allows the user to quickly import an asset as a tag.	QPushButton
Clear Button	#btn_c_clear	Button that allows the user to clear/null the current tagref value.	QPushButton

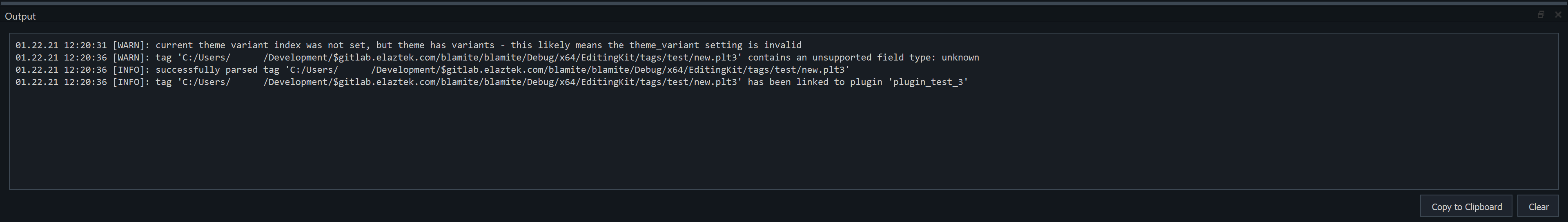

Output Window

The Output Window can be selected using #guerilla_console_output, and is a QDockWidget. To select the output text field, you can select it with #output_text.
