Shared/Common Stylesheet Reference#
Here, you can find the stylesheet selectors for UI that is found across all editing tools. These styles are used in tools and widgets that are reused across the entire editing kit.

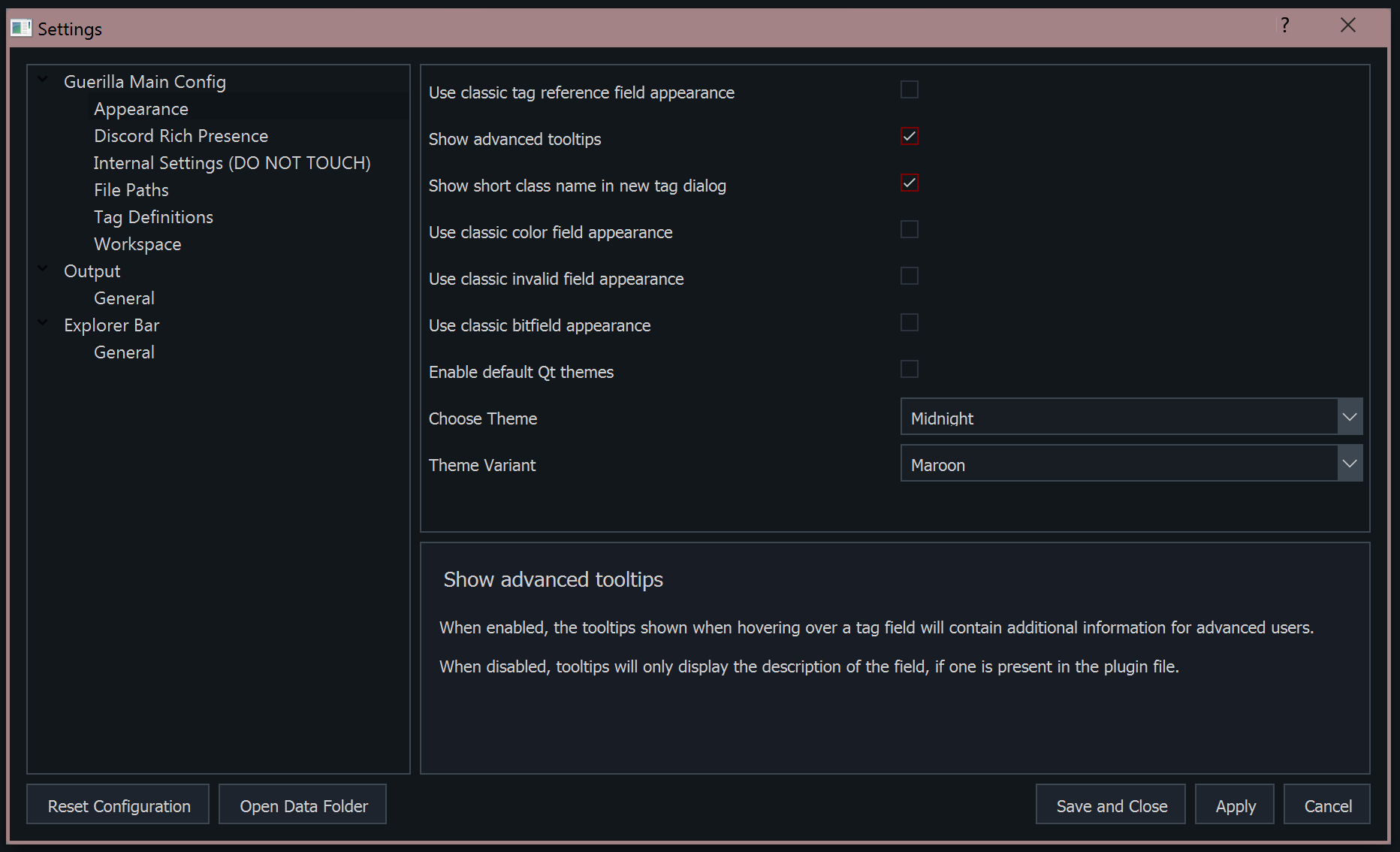

Settings Window#
The Settings Window can be selected using #shared_settings
, and is a QDialog.
Several widgets must be manually styled on a per-theme basis and lack any default styles.
Title | Selector | Description | Type |
---|---|---|---|
Settings List Container | #frame_settings_container |
The frame around the list of available settings within the current configuration file or section. | QFrame |
Current Setting Info Container | #current_setting_info_frame |
The frame around the information text for the currently active setting. | QFrame |
Current Setting Title Label | #lbl_current_title |
The title of the currently selected setting. | QLabel |
Several other widgets do have default styles, but can still be manually selected for and overridden as desired.
Title | Selector | Description | Type |
---|---|---|---|
Section Tree | #treeWidget |
The tree widget used to select a configuration file and/or section. | QTreeWidget |
Current Setting Description Label | #lbl_current_desc |
The description of the currently selected setting. This text may or may not be visible depending on which setting is selected. | QLabel |
Output Tool Window#
The Output Window can be selected using #guerilla_console_output
, and is a QDockWidget. To select the output text field, you can select it with #output_text
.
