Guerilla Stylesheet Reference#
Here, you can find the stylesheet selectors for the various UI that is found primarily in Guerilla. Note that some of these may also be used in other tools - for instance, both Sapien and Foundry are capable of providing a tag editor UI - and as such, will use the same controls and thus the same stylesheet selectors as below.
Tag Editor Frame#
The frame of any tag editing UI can be selected with #tag_editor_frame
, and is a QFrame.
Tag Fields#
Tag Blocks#
The primary selector for a tag block is #ui_tag_block
. Below are the child controls of a tag block that can be selected for and styled.
Title | Selector | Description | Type |
---|---|---|---|
Expand/Collapse Button | #btn_expand_collapse |
The expand/collapse button in the tag header. | QPushButton |
Expand/Collapse Button Frame | #btn_expand_collapse_frame |
A frame around the Expand/Collapse button. Used to add a second border around the button in the Classic theme. | QFrame |
Block Header Panel | #block_header_bg |
The top header panel of the block, containing various block controls. | QFrame |
Block Left Border | #block_edge_bg |
The left border edge of the tag block. | QFrame |
Block Title | #lbl_block_title |
The block title label. | QLabel |
Entry List ComboBox | #cbox_entries |
The ComboBox containing the list of block entries. | QComboBox |
Add Button | #btn_add |
The 'Add' button. | QPushButton |
Insert Button | #btn_insert |
The 'Insert' button. | QPushButton |
Duplicate Button | #btn_duplicate |
The 'Duplicate' button. | QPushButton |
Delete Button | #btn_delete |
The 'Delete' button. | QPushButton |
Delete All Button | #btn_delete_all |
The 'Delete All' button. | QPushButton |
Field List Container | #block_fields_frame |
The container that contains all block fields. | QFrame |
Comments#
The primary selector for a comment field is #ui_comment_field
. Below are the child controls of a comment that can be selected for and styled.
Title | Selector | Description | Type |
---|---|---|---|
Comment Frame | #comment_frame |
The frame and container around the comment. | QFrame |
Comment Title | #lbl_title |
The title of the comment. | QLabel |
Comment Description | #lbl_explanation |
The description of the comment. Not always present. | QLabel |
In some cases, comments will be given a unique appearance based on a special 'type' field. The possible types, their common use case, and selectors are found below. The selectors listed should be used instead of the normal #ui_comment_field
selector.
Type | Selector | Description |
---|---|---|
Normal/None | The default comment style. | #ui_comment_field |
Info | An informative message. | #ui_comment_field_info |
Warning | A warning message. | #ui_comment_field_warning |
Error | An error message. | #ui_comment_field_error |

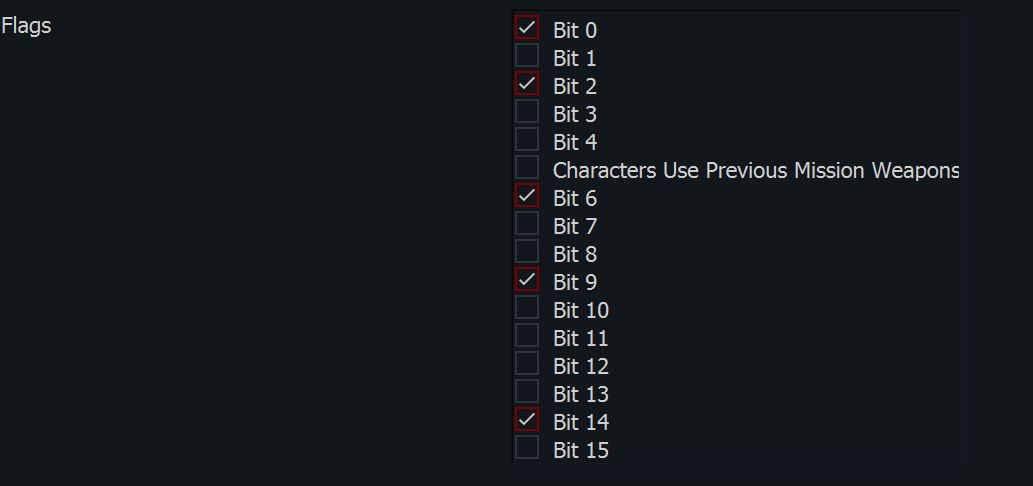

Bitfields#
Bitfield fields can be selected using #bitfield_field_{id}
, replacing {id}
with the ID of the field.
The container of the bitfield flags a QFrame, which can be selected using #bitfield_frame
.
Each bitfield bit is a QCheckBox widget. If you need or wish to select for an exact bit/flag ID, you can do so with #bitfield_bit_{id}
, replacing {id}
with the ID of the bit.
Enums#
Enum fields can selected by using #enum_field_{id}
, replacing {id}
with the ID of the field. The field value is represented using a QComboBox as a child control.
Ascii#
Ascii fields can selected by using #ascii_field_{id}
, replacing {id}
with the ID of the field. The field value is represented using a QLineEdit as a child control.
Integers (int8, int16, int32)#
Integer fields can selected by using #int_field_{id}
, replacing {id}
with the ID of the field. The field value is represented using a QLineEdit as a child control.
Floats (float32)#
Float fields can selected by using #float_field_{id}
, replacing {id}
with the ID of the field. The field value is represented using a QLineEdit as a child control.
Data References (dataref)#
Dataref fields can be selected by using #dataref_field_{id}
, replacing {id}
with the ID of the field. Below are the child controls of a dataref that can be selected for and styled.
Title | Selector | Description | Type |
---|---|---|---|
Data Input Field | #tb_data |
The large input field, used to view and modify the a dataref's data. | QPlainTextEdit |
"View As" Label | #lbl_view_as |
The "View As" label. | QLabel |
"View As" Dropdown | #cbox_view_as |
The "View As" dropdown button. | QComboBox |
Data Size Label | #lbl_size |
The "Size" label. | QLabel |
Data Size Input Field | #tb_size |
The "Size" input field, used to modify a dataref's data size. | QLineEdit |
Tag References (tagref)#
Dataref fields can be selected by using #tagref_field_{id}
, replacing {id}
with the ID of the field.
Below are the child controls of a tagref that can be selected for and styled. Fields are grouped into two tables for both the classic and modern tagref appearances.
Modern Tagref Properties (Default)#
Title | Selector | Description | Type |
---|---|---|---|
Wrapper Frame | #frame_modern |
Container frame surrounding the field. This is invisible by default and used for layout purposes. | QFrame |
Tag Class Dropdown | #cbox_m_tag_class |
Dropdown button allowing the user to select the class of the desired tag. | QComboBox |
Tag Dropdown | #cbox_m_tag_dropdown |
Dropdown button allowing the user to select a tag, filtered based on the selected tag class. | QComboBox |
Browse Button | #btn_m_browse |
Button that allows the user to browse the filesystem for a tag. | QPushButton |
Open Button | #btn_m_open |
Button that allows the user to quickly open the referenced tag for editing. | QPushButton |
Import Button | #btn_m_import |
Button that allows the user to quickly import an asset as a tag. | QPushButton |
Search Button | #btn_m_search |
Button that allows the user to search the current project for a tag. | QPushButton |
Clear Button | #btn_m_clear |
Button that allows the user to clear/null the current tagref value. | QPushButton |
Classic Tagref Properties#
Title | Selector | Description | Type |
---|---|---|---|
Wrapper Frame | #frame_classic |
Container frame surrounding the field. This is invisible by default and used for layout purposes. | QFrame |
Tag Input Field | #tb_c_tag_path |
Text field allowing the user to view and/or manually type out the path to the desired tag. | QLineEdit |
Browse Button | #btn_c_browse |
Button that allows the user to browse the filesystem for a tag. | QPushButton |
Open Button | #btn_c_open |
Button that allows the user to quickly open the referenced tag for editing. | QPushButton |
Import Button | #btn_c_import |
Button that allows the user to quickly import an asset as a tag. | QPushButton |
Clear Button | #btn_c_clear |
Button that allows the user to clear/null the current tagref value. | QPushButton |
