Tag Designer

The tag designer control can be selected using #tag_designer. Within the tag designer, there are several controls which can be styled.

Content

Title	Selector	Description	Type
Menu Wrapper Frame	#frame	Wrapper frame that surrounds the menu buttons at the top of the designer window.	QFrame
Add Field Button	#btn_add	Allows the user to add a new field to the root of the tag class.	QPushButton
Tag Class Settings Button	#btn_tag_settings	Allows the user to edit details about the tag class.	QPushButton
Save & Export Button	#btn_save_export	Allows the user to save and export the tag class to various formats.	QPushButton
Field List Widget	#scrollArea	Scroll area which contains the fields for the current tag class.	QScrollArea

No Tag Class Notice

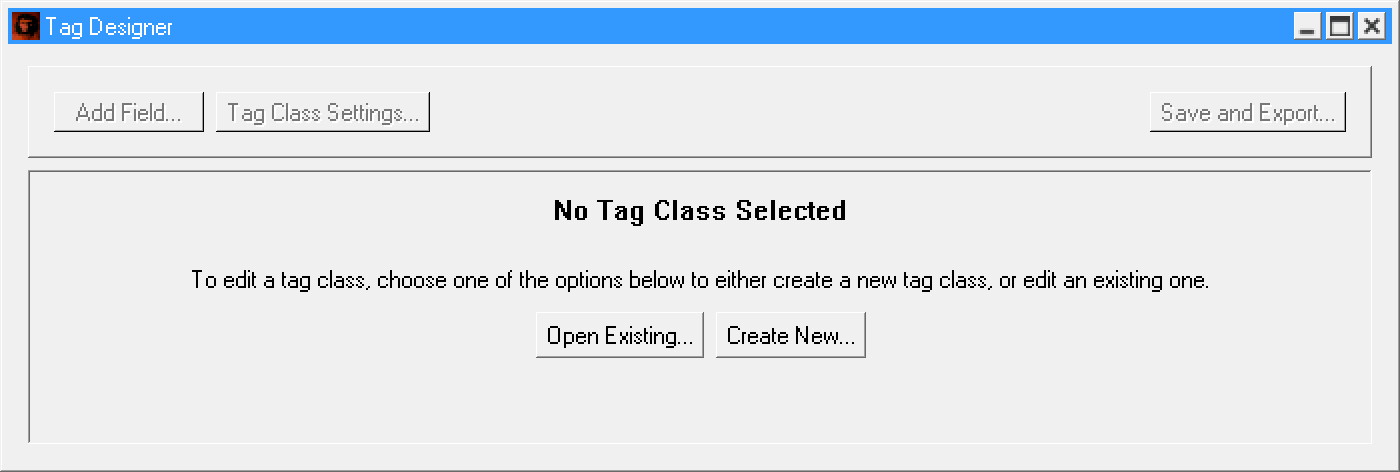

When the tag designer is first opened, no fields are displayed - instead, a message is displayed instructing the user to open or create a tag class. The controls for this message are as follows:

Title	Selector	Description	Type
Notice Title	#lbl_placeholder_title	Title label informing the user that there is no tag class opened.	QLabel
Notice Info	#lbl_placeholder_info	A label displaying a brief description on how to use the tag designer.	QLabel
Open Existing Tag Class Button	#btn_open_existing	Used to edit an existing tag class.	QPushButton
Create New Tag Class Button	#btn_create_new	Used to create a new tag class.	QPushButton

Tag Fields

When a tag class is being edited, each field displayed within the field list can be independently styled. Each of these fields are identical to the fields described in the Tag Editor styles reference, however most fields will have some additional controls that only display within the tag designer that can be styled.

Edit Fields

Most tag fields will simply have a single edit field, displayed when editing a field's display name:

Title	Selector	Description	Type
Field Title	#tb_designer_edit	A text field that is used to edit the display name of a field.	QLineEdit

However, some specific fields will have different or additional edit fields that are used instead:

Title	Selector	Description	Type	Effective On
Field Title	#tb_designer_title_edit	A text field that is used to edit the display name of a field.	QLineEdit	Comments, Tag Blocks, Colors, Tag References, Data References
Comment Explanation	#tb_designer_explanation_edit	A text field that is used to edit the description of a comment field.	QLineEdit	Comments

Drag Container

Each tag field within the designer is wrapped within a Drag Container widget, which is used to provide drag-n-drop functionality as well as extra editing features. The controls for the drag container itself (not including the tag fields displayed within) are listed below:

Title	Selector	Description	Type
Drag Container Root	#drag_container	Parent/root widget of a drag container	QFrame
Drag Container Frame	#drag_container_frame	Frame used to surround all drag container contents	QFrame
Content Frame	#content_frame	Frame which surrounds the main content area of the container	QFrame
Content Layout	#layout_contents	Layout which contains all child widgets within this container	QVBoxLayout
Control Frame	#control_frame	Frame which surrounds the edit panel of the container	QFrame
Edit Button	#btn_edit	Button which allows the user to edit certain properties of the container's widget	QPushButton
Field Type Dropdown	#cbox_field_type	Dropdown which allows the user to change the type of the tag field displayed within the container	QComboBox
Field Icon	#gv_field_icon	Icon used to indicate what type of field is being displayed	QGraphicsView
Grip Frame	#grab_frame	Frame which surrounds the drag grip sidebar	QFrame
Drag Grip	#grip_frame	Frame which is used to represent the drag grip - this is what the user clicks on to drag and drop the container	grip_frame (QFrame)

Additionally, drag containers have several dynamic states which rely on certain resources. In order to change these styles, your theme must also override these resources. The full list of resource IDs used are listed below:

Description	Resource ID	Resource Group	Default File Location
Applied when the user clicks on the drag grip, but has not started dragging the widget yet	text_css_drag_container_select	shared	{ENGINE_DIR}/content/editor/shared/text/drag_container_select.css
Applied to the user once they have started dragging the widget	text_css_drag_container_drag	shared	{ENGINE_DIR}/content/editor/shared/text/drag_container_drag.css
Applied to the widget when the drag container has been focused, and edit controls have been enabled	text_css_drag_container_focus	shared	{ENGINE_DIR}/content/editor/shared/text/drag_container_focus.css
Applied to the widget when it is unfocused, and edit controls are hidden	text_css_drag_container_unfocus	shared	{ENGINE_DIR}/content/editor/shared/text/drag_container_unfocus.css

Drop Zone

Drop Zone widgets are invisible widgets that are used to handle drag and drop. The list of selectors used within the drop zone are as follows:

Title	Selector	Description	Type
Drop Zone Container	#drag_drop_zone	The drop zone widget itself.	QFrame
Drop Zone Separator	#drop_active_separator	The frame used to represent the separator. This is what should be made visible to the user when they are intending to drag and drop a widget into this drop zone.	QFrame

Unlike most widgets, you must style them by overriding the appropriate resources. This is because the styles are changed depending on the state of the drop zone (whether it is active or not). The full list of resource IDs used by drop zones are listed below:

Description	Resource ID	Resource Group	Default File Location
Active (Hovered)	text_css_drop_active_separator	shared	{ENGINE_DIR}/content/editor/shared/text/drop_active_separator.css
Inactive (Unhovered, Default State)	text_css_drop_active_separator_inactive	shared	{ENGINE_DIR}/content/editor/shared/text/drop_active_separator_inactive.css
