Base class for all render stack objects. More...

#include <render_stack.h>

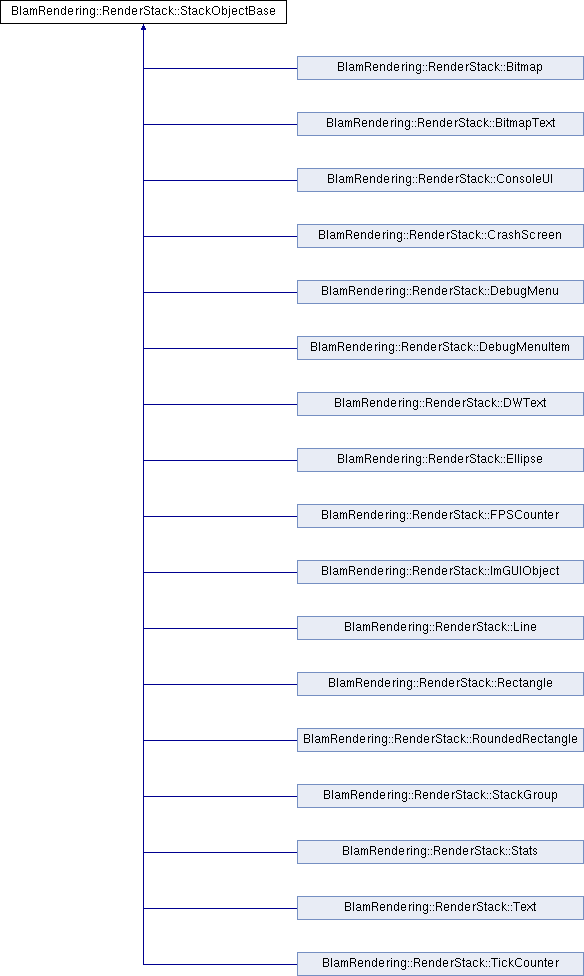

Inheritance diagram for BlamRendering::RenderStack::StackObjectBase:

Public Member Functions
	StackObjectBase ()
	Sets default values and provides a default ID to be used if none is provided. More...

	~StackObjectBase ()
	Empty destructor. More...

virtual void	Draw ()
	Draws the stack object. More...

virtual void	ShowImPropertyEditor ()
	Shows a set of ImGUI properties associated with the object. More...

virtual void	HandleResize ()
	Called upon window resize events. More...

void	SetArea (float new_area[4])
	Sets the area of the object. More...

void	SetArea (float top, float bottom, float left, float right)
	Sets the area of the object. More...

void	SetArea (D2D1_RECT_F new_area)
	Sets the area of the object. More...

void	SetColor (float new_color[3])
	Sets the color of the object. More...

void	SetColor (float r, float g, float b)
	Sets the color of the object. More...

void	SetColor (float r, float g, float b, float a)
	Sets the color of the object. More...

void	SetColor (D2D1::ColorF color)
	Sets the color of the object. More...

void	SetZOrder (int z)
	Sets the Z-Order of the object. More...

void	SetTranslation (float new_x, float new_y)
	Sets the translation of the object. More...

void	PokeTranslation ()
	Updates the area of the object to account for any x/y coordinate changes. More...

void	SetSize (float new_width, float new_height)
	Sets the size of the object. More...

void	PokeSize ()
	Updates the area of the object to account for any width/height changes. More...

void	ValidateSizeAndTranslation ()
	Validates X/Y coordinates and Width/Height sizes after the area has been modified. More...

std::string	GetType ()
	Retrieves the type of item that this stack object is. More...

std::string	GetDrawModeLabel ()
	Retrieves the current drawing mode of the object. More...

Public Attributes
D2D1_RECT_F	area
	The area of the object. More...

D2D1_COLOR_F	color
	The color of the object. More...

int	z_order = 0
	The Z-Order of the object. More...

StackType	type_label = STACKTYPE_GENERIC
	The type of the object. More...

StackItemDrawMode	draw_mode = DEFAULT_DRAWMODE
	The drawing mode of the object. More...

bool	visible = true
	Whether or not the object is visible. More...

float	x = 0
	The X coordinate of the object. More...

float	y = 0
	The Y coordinate of the object. More...

float	width = 100
	The width of the object. More...

float	height = 100
	The height of the object. More...

std::string	unique_id = ""
	The unique ID of this object. More...

Detailed Description

Base class for all render stack objects.

Constructor & Destructor Documentation

◆ StackObjectBase()

BlamRendering::RenderStack::StackObjectBase::StackObjectBase ( )

inline

Sets default values and provides a default ID to be used if none is provided.

◆ ~StackObjectBase()

BlamRendering::RenderStack::StackObjectBase::~StackObjectBase ( )

inline

Empty destructor.

Member Function Documentation

◆ Draw()

virtual void BlamRendering::RenderStack::StackObjectBase::Draw ( )

inlinevirtual

Draws the stack object.

Specific functionality may vary depending on the type of object.

◆ GetDrawModeLabel()

std::string BlamRendering::RenderStack::StackObjectBase::GetDrawModeLabel ( )

Retrieves the current drawing mode of the object.

Returns: A string containing the name of the drawing mode.

◆ GetType()

std::string BlamRendering::RenderStack::StackObjectBase::GetType ( )

Retrieves the type of item that this stack object is.

Returns: A string containing the name of the stack type.

◆ HandleResize()

virtual void BlamRendering::RenderStack::StackObjectBase::HandleResize ( )

inlinevirtual

Called upon window resize events.

Used to instruct the items to resize if need be.

Reimplemented in BlamRendering::RenderStack::ConsoleUI.

◆ PokeSize()

void BlamRendering::RenderStack::StackObjectBase::PokeSize ( )

Updates the area of the object to account for any width/height changes.

Not required if translation is modified using SetSize(). Only required if the width and height properties are modified directly.

◆ PokeTranslation()

void BlamRendering::RenderStack::StackObjectBase::PokeTranslation ( )

Updates the area of the object to account for any x/y coordinate changes.

Not required if translation is modified using SetTranslation(). Only required if the X and Y coordinate properties are modified directly.

◆ SetArea() [1/3]

void BlamRendering::RenderStack::StackObjectBase::SetArea ( D2D1_RECT_F new_area )

Sets the area of the object.

Parameters

new_area - The new area of the object.

◆ SetArea() [2/3]

void BlamRendering::RenderStack::StackObjectBase::SetArea ( float new_area[4] )

Sets the area of the object.

Parameters

new_area

- The new area of the object. Items must be in the following order:

top, bottom, left, right

◆ SetArea() [3/3]

void BlamRendering::RenderStack::StackObjectBase::SetArea	(	float	top,
		float	bottom,
		float	left,
		float	right
	)

Sets the area of the object.

Parameters

top	- The top edge of the area.
bottom	- The bottom edge of the area.
left	- The left edge of the area.
right	- The right edge of the area.

◆ SetColor() [1/4]

void BlamRendering::RenderStack::StackObjectBase::SetColor ( D2D1::ColorF color )

Sets the color of the object.

Color values range from 0.0f to 1.0f.

Parameters

color - The new color of the object.

◆ SetColor() [2/4]

void BlamRendering::RenderStack::StackObjectBase::SetColor ( float new_color[3] )

Sets the color of the object.

Color values range from 0.0f to 1.0f.

Parameters

new_color

- The new color of the object. Items must be in the following order:

red, green, blue

◆ SetColor() [3/4]

void BlamRendering::RenderStack::StackObjectBase::SetColor	(	float	r,
		float	g,
		float	b
	)

Sets the color of the object.

Color values range from 0.0f to 1.0f.

Parameters

r	- The Red value of the color.
g	- The Green value of the color.
b	- The Blue value of the color.

◆ SetColor() [4/4]

void BlamRendering::RenderStack::StackObjectBase::SetColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the object.

Color values range from 0.0f to 1.0f.

Parameters

r	- The Red value of the color.
g	- The Green value of the color.
b	- The Blue value of the color.
a	- The Alpha value of the color.

◆ SetSize()

void BlamRendering::RenderStack::StackObjectBase::SetSize	(	float	new_width,
		float	new_height
	)

Sets the size of the object.

Parameters

new_width	- The new width of the object.
new_height	- The new height of the object.

◆ SetTranslation()

void BlamRendering::RenderStack::StackObjectBase::SetTranslation	(	float	new_x,
		float	new_y
	)

Sets the translation of the object.

Parameters

new_x	- The new X coordinate of the object.
new_y	- The new Y coordinate of the object.

◆ SetZOrder()

void BlamRendering::RenderStack::StackObjectBase::SetZOrder ( int z )

Sets the Z-Order of the object.

Parameters

z	- The new Z-order.

Todo:: Make Z-Order used. Currently does nothing.

◆ ShowImPropertyEditor()

virtual void BlamRendering::RenderStack::StackObjectBase::ShowImPropertyEditor ( )

inlinevirtual

Shows a set of ImGUI properties associated with the object.

This will call functions to draw only the property controls for the item, and nothing else. The window/container for the properties must be handled externally.

◆ ValidateSizeAndTranslation()

void BlamRendering::RenderStack::StackObjectBase::ValidateSizeAndTranslation ( )

Validates X/Y coordinates and Width/Height sizes after the area has been modified.

The area placement overrides the coords and size, and as such those properties will be lost and updated to represent the configured area.

Member Data Documentation

◆ area

D2D1_RECT_F BlamRendering::RenderStack::StackObjectBase::area

The area of the object.

◆ color

D2D1_COLOR_F BlamRendering::RenderStack::StackObjectBase::color

The color of the object.

◆ draw_mode

StackItemDrawMode BlamRendering::RenderStack::StackObjectBase::draw_mode = DEFAULT_DRAWMODE

The drawing mode of the object.

◆ height

float BlamRendering::RenderStack::StackObjectBase::height = 100

The height of the object.

◆ type_label

StackType BlamRendering::RenderStack::StackObjectBase::type_label = STACKTYPE_GENERIC

The type of the object.

◆ unique_id

std::string BlamRendering::RenderStack::StackObjectBase::unique_id = ""

The unique ID of this object.

◆ visible

bool BlamRendering::RenderStack::StackObjectBase::visible = true

Whether or not the object is visible.

◆ width

float BlamRendering::RenderStack::StackObjectBase::width = 100

The width of the object.

◆ x

float BlamRendering::RenderStack::StackObjectBase::x = 0

The X coordinate of the object.

◆ y

float BlamRendering::RenderStack::StackObjectBase::y = 0

The Y coordinate of the object.

◆ z_order

int BlamRendering::RenderStack::StackObjectBase::z_order = 0

The Z-Order of the object.

The documentation for this class was generated from the following files:

blam/components/rendering/directx11/render_stack/render_stack.h
blam/components/rendering/directx11/render_stack/stack_types/StackObjectBase.cpp
