tag_designer Class Reference

Class representing the Tag Designer. More...

#include <tag_designer.h>

Inheritance diagram for tag_designer:

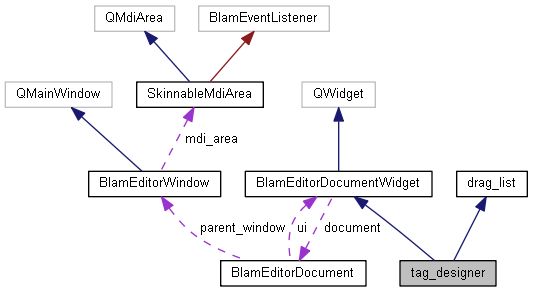

Collaboration diagram for tag_designer:

Public Member Functions
	tag_designer (QWidget *parent=Q_NULLPTR)
	~tag_designer ()
void	CloseAllLabelEditors ()
void	UnfocusAllContainers ()
void	EnablePluginEditControls ()
void	GeneratePluginFieldControl (drag_list *destination_drag_list, BlamPluginField *plugin_field)
void	CreateNewPluginField (drag_list *destination_drag_list, int *next_item_id, BlamTagFieldType type)
Public Member Functions inherited from BlamEditorDocumentWidget
	BlamEditorDocumentWidget (QWidget *parent=nullptr)
Public Member Functions inherited from drag_list
void	GenerateDropZones (bool clear_existing=true)
	Generates drop zones for the given drag list. More...
void	AddContentWidget (QWidget *widget)
	Adds a content item to the drag list. More...
std::vector< QWidget * >	GetContentWidgets ()
	Retrieves a list of all content widgets within the drag list. More...

Public Attributes
BlamPlugin *	plugin = nullptr
int	next_field_id = 0
Public Attributes inherited from BlamEditorDocumentWidget
BlamEditorDocument *	document = nullptr
	The document associated with this widget. More...
Public Attributes inherited from drag_list
QBoxLayout *	drag_layout = nullptr
	The layout container that holds all drag and drop widgets. More...

Detailed Description

Class representing the Tag Designer.

The Tag Designer provides a GUI for authoring tag class definition files, or 'plugins'. These plugins are stored as XML files on disk, and are used by the Editing Kit to interact with tag files.

These files are not directly used by the game engine - instead, the game engine itself has its tag definitions built-in using C++ code. While this reduces compatiability, it ensures that the game engine can read tags as quickly and efficiently as possible - with minimal memory overhead.

The Tag Designer saves tag files as XML by default, for use within the Editing Kit. However, tags can also be exported to C++ code for ready use in-engine, allowing the designer to be used for both project-level tags as well as our own in-engine tags.

Constructor & Destructor Documentation

tag_designer()

tag_designer::tag_designer

(

QWidget *

parent = Q_NULLPTR

)

~tag_designer()

tag_designer::~tag_designer

(

)

Member Function Documentation

CloseAllLabelEditors()

void tag_designer::CloseAllLabelEditors

(

)

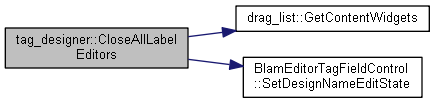

Here is the call graph for this function:

CreateNewPluginField()

void tag_designer::CreateNewPluginField	(	drag_list *	destination_drag_list,
		int *	next_item_id,
		BlamTagFieldType	type
	)

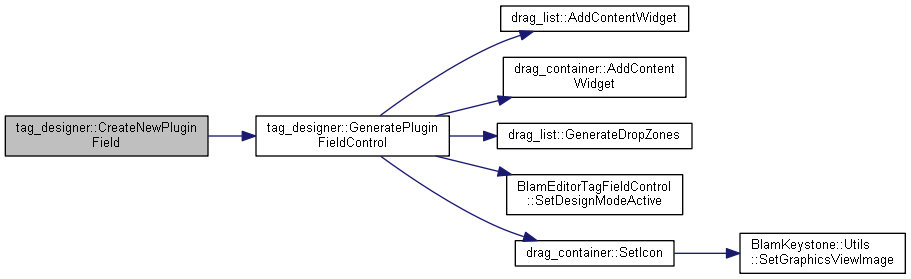

Here is the call graph for this function:

EnablePluginEditControls()

void tag_designer::EnablePluginEditControls

(

)

GeneratePluginFieldControl()

void tag_designer::GeneratePluginFieldControl	(	drag_list *	destination_drag_list,
		BlamPluginField *	plugin_field
	)

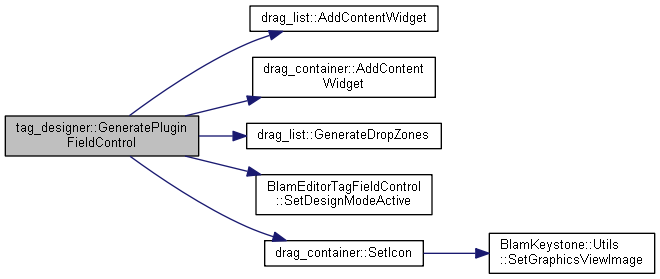

Here is the call graph for this function:

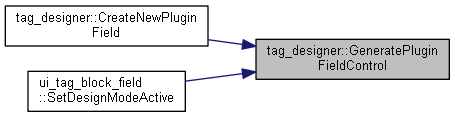

Here is the caller graph for this function:

UnfocusAllContainers()

void tag_designer::UnfocusAllContainers

(

)

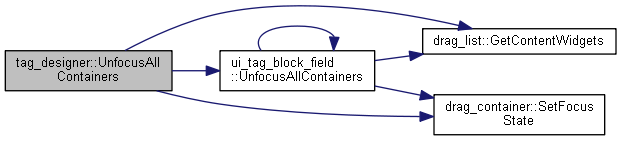

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

next_field_id

int tag_designer::next_field_id = 0

plugin

BlamPlugin* tag_designer::plugin = nullptr

---

The documentation for this class was generated from the following files:

• keystone/components/ui/shared/controls/tag_designer/tag_designer.h
• keystone/components/ui/shared/controls/tag_designer/tag_designer.cpp
