Class representing a node of XML document. More...

#include <rapidxml.hpp>

Public Member Functions
	xml_node (node_type type)
	Constructs an empty node with the specified type. More...

node_type	type () const
	Gets type of node. More...

xml_document< Ch > *	document () const
	Gets document of which node is a child. More...

xml_node< Ch > *	first_node (const Ch *name=0, std::size_t name_size=0, bool case_sensitive=true) const
	Gets first child node, optionally matching node name. More...

xml_node< Ch > *	last_node (const Ch *name=0, std::size_t name_size=0, bool case_sensitive=true) const
	Gets last child node, optionally matching node name. More...

xml_node< Ch > *	previous_sibling (const Ch *name=0, std::size_t name_size=0, bool case_sensitive=true) const
	Gets previous sibling node, optionally matching node name. More...

xml_node< Ch > *	next_sibling (const Ch *name=0, std::size_t name_size=0, bool case_sensitive=true) const
	Gets next sibling node, optionally matching node name. More...

xml_attribute< Ch > *	first_attribute (const Ch *name=0, std::size_t name_size=0, bool case_sensitive=true) const
	Gets first attribute of node, optionally matching attribute name. More...

xml_attribute< Ch > *	last_attribute (const Ch *name=0, std::size_t name_size=0, bool case_sensitive=true) const
	Gets last attribute of node, optionally matching attribute name. More...

void	type (node_type type)
	Sets type of node. More...

void	prepend_node (xml_node< Ch > *child)
	Prepends a new child node. More...

void	append_node (xml_node< Ch > *child)
	Appends a new child node. More...

void	insert_node (xml_node< Ch > where, xml_node< Ch > child)
	Inserts a new child node at specified place inside the node. More...

void	remove_first_node ()
	Removes first child node. More...

void	remove_last_node ()
	Removes last child of the node. More...

void	remove_node (xml_node< Ch > *where)
	Removes specified child from the node. More...

void	remove_all_nodes ()
	Removes all child nodes (but not attributes). More...

void	prepend_attribute (xml_attribute< Ch > *attribute)
	Prepends a new attribute to the node. More...

void	append_attribute (xml_attribute< Ch > *attribute)
	Appends a new attribute to the node. More...

void	insert_attribute (xml_attribute< Ch > where, xml_attribute< Ch > attribute)
	Inserts a new attribute at specified place inside the node. More...

void	remove_first_attribute ()
	Removes first attribute of the node. More...

void	remove_last_attribute ()
	Removes last attribute of the node. More...

void	remove_attribute (xml_attribute< Ch > *where)
	Removes specified attribute from node. More...

void	remove_all_attributes ()
	Removes all attributes of node. More...

Detailed Description

template<class Ch = char>
class rapidxml::xml_node< Ch >

Class representing a node of XML document.

Each node may have associated name and value strings, which are available through name() and value() functions. Interpretation of name and value depends on type of the node. Type of node can be determined by using type() function.

Note that after parse, both name and value of node, if any, will point interior of source text used for parsing. Thus, this text must persist in the memory for the lifetime of node.

Parameters

Ch	Character type to use.

Constructor & Destructor Documentation

◆ xml_node()

template<class Ch = char>

rapidxml::xml_node< Ch >::xml_node ( node_type type )

inline

Constructs an empty node with the specified type.

Consider using memory_pool of appropriate document to allocate nodes manually.

Parameters

type	Type of node to construct.

Member Function Documentation

◆ append_attribute()

template<class Ch = char>

void rapidxml::xml_node< Ch >::append_attribute ( xml_attribute< Ch > * attribute )

inline

Appends a new attribute to the node.

Parameters

attribute Attribute to append.

Here is the caller graph for this function:

◆ append_node()

template<class Ch = char>

void rapidxml::xml_node< Ch >::append_node ( xml_node< Ch > * child )

inline

Appends a new child node.

The appended child becomes the last child.

Parameters

child Node to append.

Here is the caller graph for this function:

◆ document()

template<class Ch = char>

xml_document<Ch>* rapidxml::xml_node< Ch >::document ( ) const

inline

Gets document of which node is a child.

Returns: Pointer to document that contains this node, or 0 if there is no parent document.

◆ first_attribute()

template<class Ch = char>

xml_attribute<Ch>* rapidxml::xml_node< Ch >::first_attribute	(	const Ch *	name = `0`,
		std::size_t	name_size = `0`,
		bool	case_sensitive = `true`
	)		const

inline

Gets first attribute of node, optionally matching attribute name.

Parameters

name	Name of attribute to find, or 0 to return first attribute regardless of its name; this string doesn't have to be zero-terminated if name_size is non-zero
name_size	Size of name, in characters, or 0 to have size calculated automatically from string
case_sensitive	Should name comparison be case-sensitive; non case-sensitive comparison works properly only for ASCII characters

Returns: Pointer to found attribute, or 0 if not found.

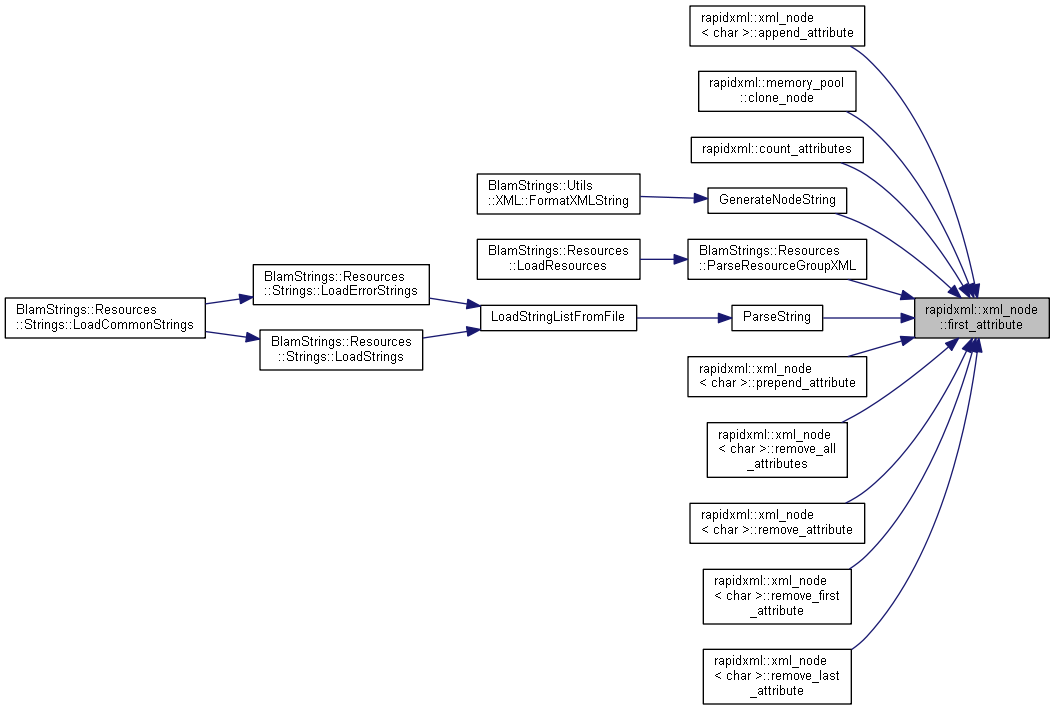

Here is the caller graph for this function:

◆ first_node()

template<class Ch = char>

xml_node<Ch>* rapidxml::xml_node< Ch >::first_node	(	const Ch *	name = `0`,
		std::size_t	name_size = `0`,
		bool	case_sensitive = `true`
	)		const

inline

Gets first child node, optionally matching node name.

Parameters

name	Name of child to find, or 0 to return first child regardless of its name; this string doesn't have to be zero-terminated if name_size is non-zero
name_size	Size of name, in characters, or 0 to have size calculated automatically from string
case_sensitive	Should name comparison be case-sensitive; non case-sensitive comparison works properly only for ASCII characters

Returns: Pointer to found child, or 0 if not found.

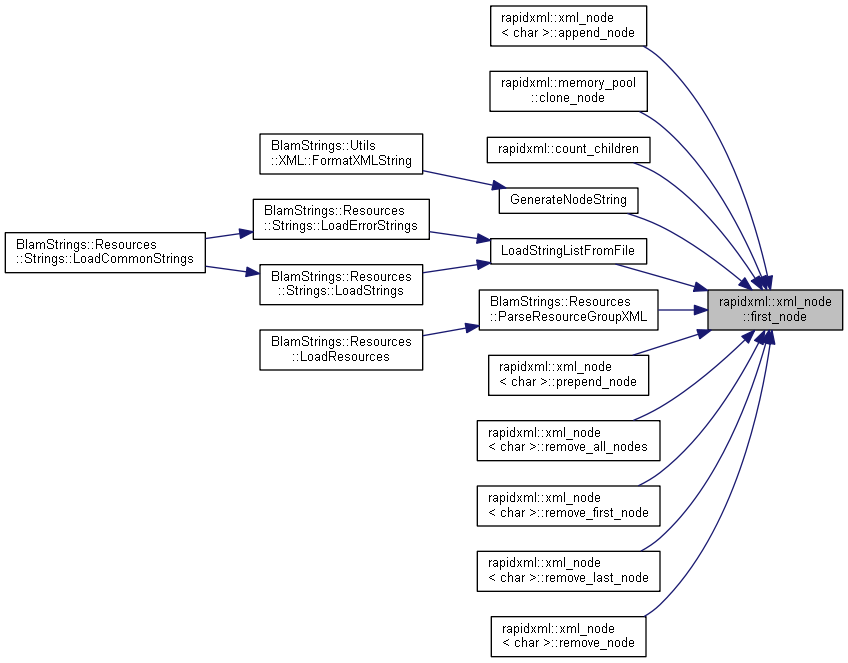

Here is the caller graph for this function:

◆ insert_attribute()

template<class Ch = char>

void rapidxml::xml_node< Ch >::insert_attribute	(	xml_attribute< Ch > *	where,
		xml_attribute< Ch > *	attribute
	)

inline

Inserts a new attribute at specified place inside the node.

All attributes after and including the specified attribute are moved one position back.

Parameters

where	Place where to insert the attribute, or 0 to insert at the back.
attribute	Attribute to insert.

◆ insert_node()

template<class Ch = char>

void rapidxml::xml_node< Ch >::insert_node	(	xml_node< Ch > *	where,
		xml_node< Ch > *	child
	)

inline

Inserts a new child node at specified place inside the node.

All children after and including the specified node are moved one position back.

Parameters

where	Place where to insert the child, or 0 to insert at the back.
child	Node to insert.

◆ last_attribute()

template<class Ch = char>

xml_attribute<Ch>* rapidxml::xml_node< Ch >::last_attribute	(	const Ch *	name = `0`,
		std::size_t	name_size = `0`,
		bool	case_sensitive = `true`
	)		const

inline

Gets last attribute of node, optionally matching attribute name.

Parameters

name	Name of attribute to find, or 0 to return last attribute regardless of its name; this string doesn't have to be zero-terminated if name_size is non-zero
name_size	Size of name, in characters, or 0 to have size calculated automatically from string
case_sensitive	Should name comparison be case-sensitive; non case-sensitive comparison works properly only for ASCII characters

Returns: Pointer to found attribute, or 0 if not found.

◆ last_node()

template<class Ch = char>

xml_node<Ch>* rapidxml::xml_node< Ch >::last_node	(	const Ch *	name = `0`,
		std::size_t	name_size = `0`,
		bool	case_sensitive = `true`
	)		const

inline

Gets last child node, optionally matching node name.

Behaviour is undefined if node has no children. Use first_node() to test if node has children.

Parameters

name	Name of child to find, or 0 to return last child regardless of its name; this string doesn't have to be zero-terminated if name_size is non-zero
name_size	Size of name, in characters, or 0 to have size calculated automatically from string
case_sensitive	Should name comparison be case-sensitive; non case-sensitive comparison works properly only for ASCII characters

Returns: Pointer to found child, or 0 if not found.

◆ next_sibling()

template<class Ch = char>

xml_node<Ch>* rapidxml::xml_node< Ch >::next_sibling	(	const Ch *	name = `0`,
		std::size_t	name_size = `0`,
		bool	case_sensitive = `true`
	)		const

inline

Gets next sibling node, optionally matching node name.

Behaviour is undefined if node has no parent. Use parent() to test if node has a parent.

Parameters

name	Name of sibling to find, or 0 to return next sibling regardless of its name; this string doesn't have to be zero-terminated if name_size is non-zero
name_size	Size of name, in characters, or 0 to have size calculated automatically from string
case_sensitive	Should name comparison be case-sensitive; non case-sensitive comparison works properly only for ASCII characters

Returns: Pointer to found sibling, or 0 if not found.

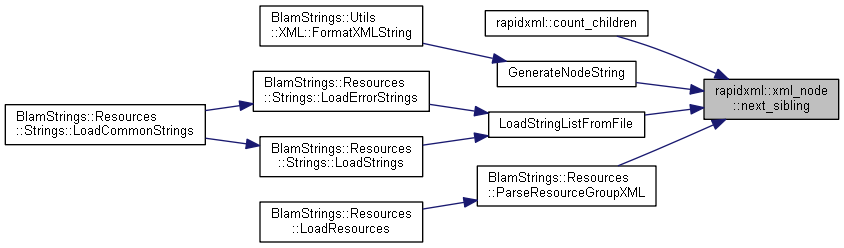

Here is the caller graph for this function:

◆ prepend_attribute()

template<class Ch = char>

void rapidxml::xml_node< Ch >::prepend_attribute ( xml_attribute< Ch > * attribute )

inline

Prepends a new attribute to the node.

Parameters

attribute Attribute to prepend.

Here is the caller graph for this function:

◆ prepend_node()

template<class Ch = char>

void rapidxml::xml_node< Ch >::prepend_node ( xml_node< Ch > * child )

inline

Prepends a new child node.

The prepended child becomes the first child, and all existing children are moved one position back.

Parameters

child Node to prepend.

Here is the caller graph for this function:

◆ previous_sibling()

template<class Ch = char>

xml_node<Ch>* rapidxml::xml_node< Ch >::previous_sibling	(	const Ch *	name = `0`,
		std::size_t	name_size = `0`,
		bool	case_sensitive = `true`
	)		const

inline

Gets previous sibling node, optionally matching node name.

Behaviour is undefined if node has no parent. Use parent() to test if node has a parent.

Parameters

name	Name of sibling to find, or 0 to return previous sibling regardless of its name; this string doesn't have to be zero-terminated if name_size is non-zero
name_size	Size of name, in characters, or 0 to have size calculated automatically from string
case_sensitive	Should name comparison be case-sensitive; non case-sensitive comparison works properly only for ASCII characters

Returns: Pointer to found sibling, or 0 if not found.

◆ remove_all_attributes()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_all_attributes ( )

inline

Removes all attributes of node.

◆ remove_all_nodes()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_all_nodes ( )

inline

Removes all child nodes (but not attributes).

◆ remove_attribute()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_attribute ( xml_attribute< Ch > * where )

inline

Removes specified attribute from node.

Parameters

where Pointer to attribute to be removed.

◆ remove_first_attribute()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_first_attribute ( )

inline

Removes first attribute of the node.

If node has no attributes, behaviour is undefined. Use first_attribute() to test if node has attributes.

Here is the caller graph for this function:

◆ remove_first_node()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_first_node ( )

inline

Removes first child node.

If node has no children, behaviour is undefined. Use first_node() to test if node has children.

Here is the caller graph for this function:

◆ remove_last_attribute()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_last_attribute ( )

inline

Removes last attribute of the node.

If node has no attributes, behaviour is undefined. Use first_attribute() to test if node has attributes.

Here is the caller graph for this function:

◆ remove_last_node()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_last_node ( )

inline

Removes last child of the node.

If node has no children, behaviour is undefined. Use first_node() to test if node has children.

Here is the caller graph for this function:

◆ remove_node()

template<class Ch = char>

void rapidxml::xml_node< Ch >::remove_node ( xml_node< Ch > * where )

inline

Removes specified child from the node.

◆ type() [1/2]

template<class Ch = char>

node_type rapidxml::xml_node< Ch >::type ( ) const

inline

Gets type of node.

Returns: Type of node.

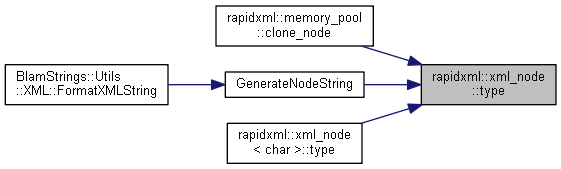

Here is the caller graph for this function:

◆ type() [2/2]

template<class Ch = char>

void rapidxml::xml_node< Ch >::type ( node_type type )

inline

Sets type of node.

Parameters

type	Type of node to set.

The documentation for this class was generated from the following file:

Strings/components/3rdparty/rapidxml/rapidxml.hpp

Public Member Functions

Detailed Description

template<class Ch = char> class rapidxml::xml_node< Ch >

Constructor & Destructor Documentation

◆ xml_node()

Member Function Documentation

◆ append_attribute()

◆ append_node()

◆ document()

◆ first_attribute()

◆ first_node()

◆ insert_attribute()

◆ insert_node()

◆ last_attribute()

◆ last_node()

◆ next_sibling()

◆ prepend_attribute()

◆ prepend_node()

◆ previous_sibling()

◆ remove_all_attributes()

◆ remove_all_nodes()

◆ remove_attribute()

◆ remove_first_attribute()

◆ remove_first_node()

◆ remove_last_attribute()

◆ remove_last_node()

◆ remove_node()

◆ type() [1/2]

◆ type() [2/2]

template<class Ch = char>
class rapidxml::xml_node< Ch >
