Class representing a plugin field. More...

#include <fields.h>

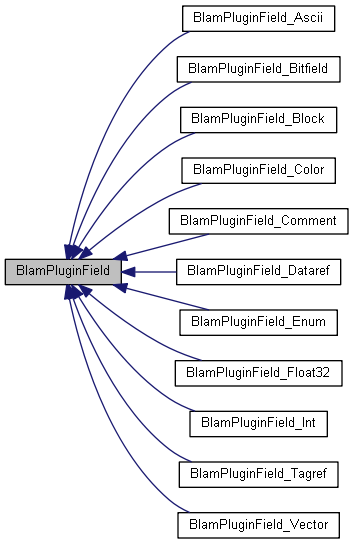

Inheritance diagram for BlamPluginField:

Public Member Functions
	BlamPluginField (BlamPlugin *_plugin, BlamTagFieldType _type)
	Constructs a new plugin field. More...

	BlamPluginField (BlamPluginField *_old_field)
	Constructs a new plugin field. More...

BlamTagFieldType	GetType ()
	Retrieves the type of this field. More...

BlamPlugin *	GetPlugin ()
	Retrieves the plugin this field is associated with. More...

virtual BlamTagField *	GenerateTagField (BlamTag *tag)
	Generates a new tag field from this plugin field. More...

virtual BlamTagField *	GenerateTagField (BlamTagField *existing_tag_field)
	Generates a new tag field from this plugin field. More...

virtual BlamTagField *	GenerateTagField (BlamTag tag, void address)
	Generates a new tag field from this plugin field. More...

virtual std::string	GenerateXMLString ()
	Generates a string representing this plugin field. More...

virtual void	UpdateOffsetData (int new_offset)
	Updates any offsets or lengths for the given field. More...

virtual std::string	GenerateCppStructString (std::string line_prefix="")
	Generates a string containing C++ code representing this plugin field. More...

virtual std::string	GenerateCppClassString (std::string line_prefix="")
	Generates a string containing C++ code representing this plugin field. More...

virtual bool	ParseXMLData (rapidxml::xml_node<> *field_node)
	Populates data within the plugin field from an XML node. More...

Public Attributes
int	offset = 0x0
	The offset of the field data. More...

int	length = 0x0
	The length of the field data. More...

bool	visible = true
	Whether or not the field is visible. More...

std::string	display_name = ""
	The display name of the field. More...

std::string	description = ""
	An optional description of the field. More...

std::string	field_id = ""
	The ID of the field. More...

std::string	input_hint = ""
	An additional piece of short text that can be used to suggest valid input for a field. More...

bool	require_unused_visible = false
	If enabled, this field will only be visible when "Show Unused Fields" is enabled. More...

Detailed Description

Class representing a plugin field.

Plugin fields are used to store additional, non-data information related to a tag field. This information can include things display names, descriptions, and visibility. It also stores the offset and length of the data - which is required for tag compilation.

Constructor & Destructor Documentation

◆ BlamPluginField() [1/2]

BlamPluginField::BlamPluginField	(	BlamPlugin *	_plugin,
		BlamTagFieldType	_type
	)

Constructs a new plugin field.

Parameters

_plugin	- The plugin this field should be associated with.
_type	- The type of the field.

Here is the call graph for this function:

◆ BlamPluginField() [2/2]

BlamPluginField::BlamPluginField ( BlamPluginField * _old_field )

Constructs a new plugin field.

Parameters

_old_field - The old field to load data from. Becomes invalid after construction.

Member Function Documentation

◆ GenerateCppClassString()

std::string BlamPluginField::GenerateCppClassString ( std::string line_prefix = "" )

virtual

Generates a string containing C++ code representing this plugin field.

This method will generate a string containing C++ code that is intended for use within the BlamTagClass class. This class is used by the game engine to store a tag class layout, allowing for in-engine tools to present a tag data editing UI among other things.

Parameters

line_prefix - A string that should be placed before each line, such as a certain amount of indentation spaces.

Returns: A string containing C++ code representing the field and its data.

Reimplemented in BlamPluginField_Block, BlamPluginField_Comment, BlamPluginField_Bitfield, BlamPluginField_Enum, BlamPluginField_Tagref, BlamPluginField_Ascii, BlamPluginField_Vector, BlamPluginField_Color, BlamPluginField_Dataref, BlamPluginField_Float32, and BlamPluginField_Int.

◆ GenerateCppStructString()

std::string BlamPluginField::GenerateCppStructString ( std::string line_prefix = "" )

virtual

Generates a string containing C++ code representing this plugin field.

This method will generate a string containing C++ code that is intended for use within the tag class data structure. This is intended to be used when exporting a tag class to C++ code.

Parameters

line_prefix - A string that should be placed before each line, such as a certain amount of indentation spaces.

Returns: A string containing C++ code representing the field and its data.

Reimplemented in BlamPluginField_Block, BlamPluginField_Bitfield, BlamPluginField_Comment, BlamPluginField_Enum, BlamPluginField_Tagref, BlamPluginField_Ascii, BlamPluginField_Vector, BlamPluginField_Color, BlamPluginField_Dataref, BlamPluginField_Float32, and BlamPluginField_Int.

◆ GenerateTagField() [1/3]

BlamTagField * BlamPluginField::GenerateTagField ( BlamTag * tag )

virtual

Generates a new tag field from this plugin field.

With this overload, a brand new tag field is created with no value.

Parameters

tag	- The tag the new field should belong to.

Returns: Pointer to the new tag field.

Reimplemented in BlamPluginField_Block, BlamPluginField_Bitfield, BlamPluginField_Comment, BlamPluginField_Enum, BlamPluginField_Tagref, BlamPluginField_Ascii, BlamPluginField_Vector, BlamPluginField_Color, BlamPluginField_Dataref, BlamPluginField_Float32, and BlamPluginField_Int.

Here is the caller graph for this function:

◆ GenerateTagField() [2/3]

BlamTagField * BlamPluginField::GenerateTagField	(	BlamTag *	tag,
		void *	address
	)

virtual

Generates a new tag field from this plugin field.

With this overload, a new field is created and its value(s) are read from the tag data. This should only be used when reading binary (compiled) tag files.

Parameters

tag	- The tag the new field should belong to.
address	- The address of the field value.

Returns: Pointer to the new tag field.

Reimplemented in BlamPluginField_Block, BlamPluginField_Bitfield, BlamPluginField_Enum, BlamPluginField_Tagref, BlamPluginField_Ascii, BlamPluginField_Vector, BlamPluginField_Color, BlamPluginField_Dataref, BlamPluginField_Float32, and BlamPluginField_Int.

◆ GenerateTagField() [3/3]

BlamTagField * BlamPluginField::GenerateTagField ( BlamTagField * existing_tag_field )

virtual

Generates a new tag field from this plugin field.

With this overload, the tag field remains unchanged but has this plugin field assigned to it.

Parameters

existing_tag_field - The existing tag field to associate this plugin field with.

Returns: Pointer to the new tag field. Will be identical to existing_tag_field.

◆ GenerateXMLString()

std::string BlamPluginField::GenerateXMLString ( )

virtual

Generates a string representing this plugin field.

Returns: An XML string containing the field ID and other attributes.

Reimplemented in BlamPluginField_Block, BlamPluginField_Bitfield, BlamPluginField_Comment, and BlamPluginField_Enum.

Here is the call graph for this function:

◆ GetPlugin()

BlamPlugin * BlamPluginField::GetPlugin ( )

Retrieves the plugin this field is associated with.

Returns: A pointer to the plugin associated with this field.

Here is the caller graph for this function:

◆ GetType()

BlamTagFieldType BlamPluginField::GetType ( )

Retrieves the type of this field.

See BlamTagFieldType for details.

Returns: The type of this field.

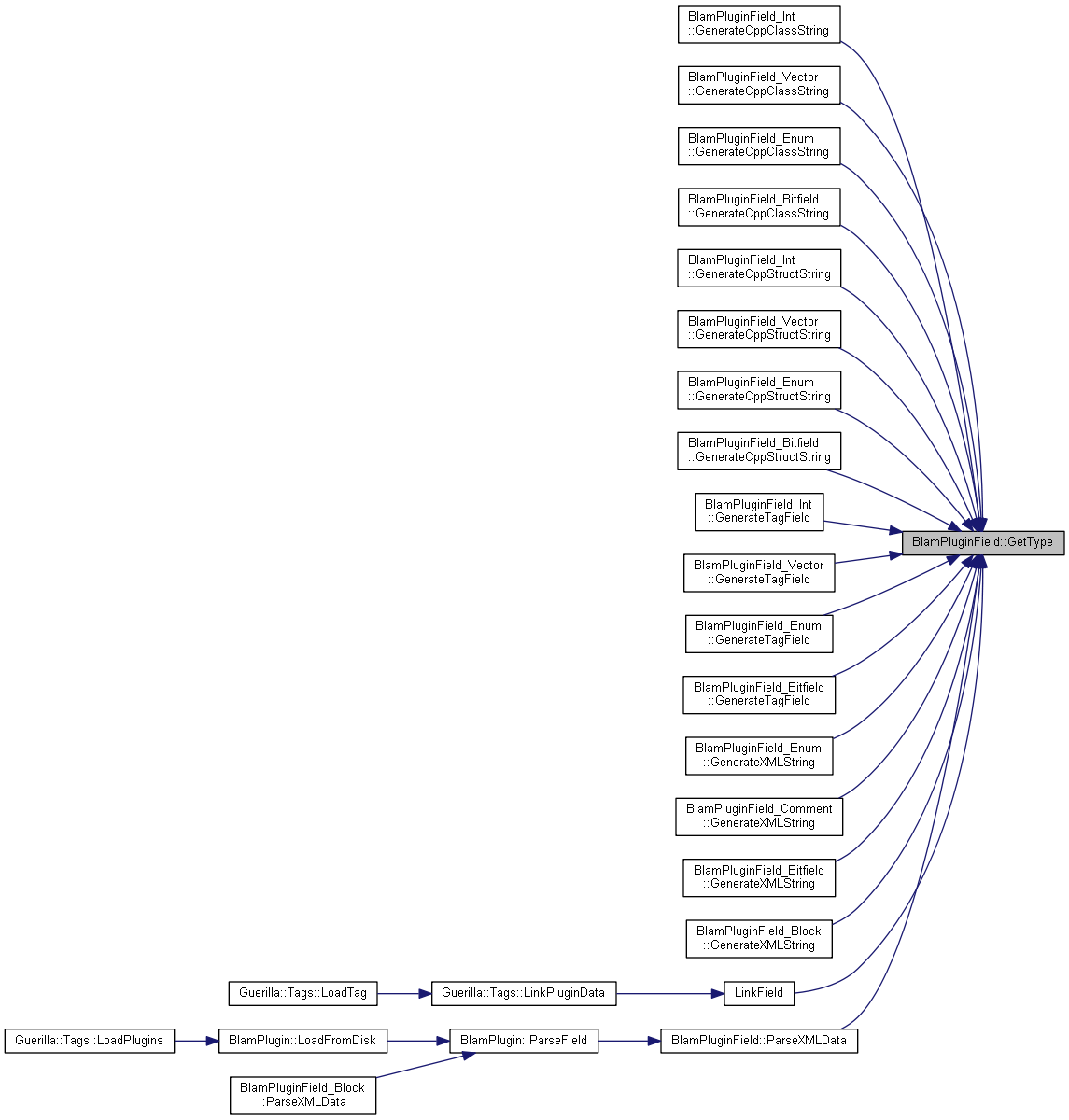

Here is the caller graph for this function:

◆ ParseXMLData()

bool BlamPluginField::ParseXMLData ( rapidxml::xml_node<> * field_node )

virtual

Populates data within the plugin field from an XML node.

This is intended for use when loading a plugin from an XML document.

Parameters

field_node - Pointer to the XML node to parse plugin field data from.

Returns: true if all required field data was parsed, otherwise returns false. If this returns false, this field should be deleted and should NOT be added to the plugin - as this indicates an issue with the original plugin file.

Reimplemented in BlamPluginField_Block, BlamPluginField_Comment, BlamPluginField_Bitfield, BlamPluginField_Enum, and BlamPluginField_Tagref.

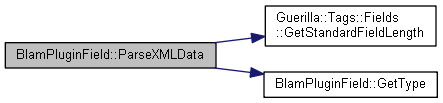

Here is the call graph for this function:

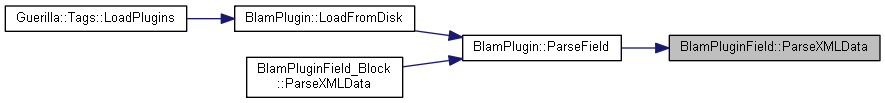

Here is the caller graph for this function:

◆ UpdateOffsetData()

void BlamPluginField::UpdateOffsetData ( int new_offset )

virtual

Updates any offsets or lengths for the given field.

In most cases, this simply updates the offset field to the new value. However, in some cases, additional steps may need to be performed, such as recalculating the entry size of a block. This method will also perform these operations as needed, depending on the plugin field type.

Parameters

new_offset - The new offset for the plugin field.

Reimplemented in BlamPluginField_Block.

Member Data Documentation

◆ description

std::string BlamPluginField::description = ""

An optional description of the field.

◆ display_name

std::string BlamPluginField::display_name = ""

The display name of the field.

◆ field_id

std::string BlamPluginField::field_id = ""

The ID of the field.

◆ input_hint

std::string BlamPluginField::input_hint = ""

An additional piece of short text that can be used to suggest valid input for a field.

◆ length

int BlamPluginField::length = 0x0

The length of the field data.

◆ offset

int BlamPluginField::offset = 0x0

The offset of the field data.

◆ require_unused_visible

bool BlamPluginField::require_unused_visible = false

If enabled, this field will only be visible when "Show Unused Fields" is enabled.

◆ visible

bool BlamPluginField::visible = true

Whether or not the field is visible.

The documentation for this class was generated from the following files:

HEKGuerilla/components/tags/fields/fields.h
HEKGuerilla/components/tags/fields/BlamPluginField.cpp
