drag_container Class Reference

Class representing a draggable widget container. More...

#include <drag_container.h>

Inheritance diagram for drag_container:

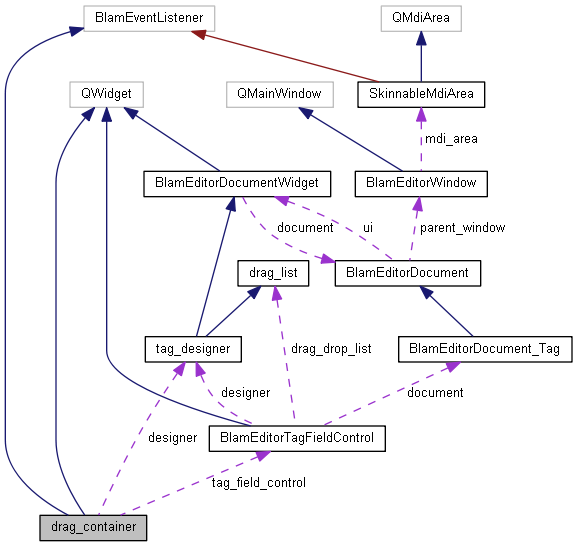

Collaboration diagram for drag_container:

Public Member Functions
	drag_container (drag_list *_parent_list, tag_designer *_designer)
	Creates a new drag_container instance. More...
	~drag_container ()
void	mousePressEvent (QMouseEvent *mouse_event) override
void	mouseMoveEvent (QMouseEvent *event) override
void	mouseReleaseEvent (QMouseEvent *mouse_event) override
void	OnEditorThemeChangeEvent (EditorThemeChangeEvent *event) override
void	AddContentWidget (QWidget *widget)
	Adds a widget to this drag container. More...
void	SetIconVisiblity (bool icon_visible_state)
	Sets whether or not the drag container's sidebar icon should be visible. More...
void	SetIcon (std::string group_id, std::string resource_id)
	Sets the drag container's sidebar icon. More...
void	SetFocusState (bool focus_state, bool force_update=false)
	Sets the drag container's focus state. More...

Public Attributes
BlamPluginField *	field_data = nullptr
	The plugin field that belongs to this container. More...
BlamEditorTagFieldControl *	tag_field_control = nullptr
	The tag field widget that belongs to this container. More...
tag_designer *	designer = nullptr
	The Tag Designer that this container exists within. More...

Detailed Description

Class representing a draggable widget container.

Currently, this is only used for the Tag Designer - however in the future, it could be adapted to be used as a general purpose drag-and-drop widget.

Constructor & Destructor Documentation

drag_container()

drag_container::drag_container	(	drag_list *	_parent_list,
		tag_designer *	_designer
	)

Creates a new drag_container instance.

Parameters

_parent_list

- The drag list that this container belongs to.

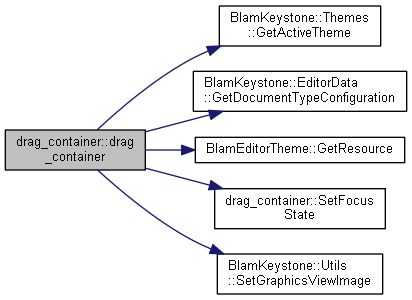

Here is the call graph for this function:

~drag_container()

drag_container::~drag_container

(

)

Member Function Documentation

AddContentWidget()

void drag_container::AddContentWidget

(

QWidget *

widget

)

Adds a widget to this drag container.

Parameters

widget

- Pointer to the widget to add to the container.

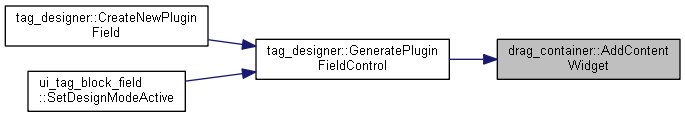

Here is the caller graph for this function:

mouseMoveEvent()

void drag_container::mouseMoveEvent ( QMouseEvent *  event )

override

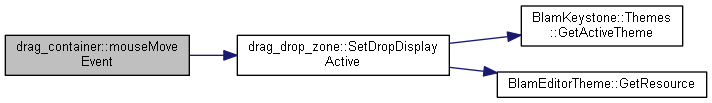

Here is the call graph for this function:

mousePressEvent()

void drag_container::mousePressEvent ( QMouseEvent *  mouse_event )

override

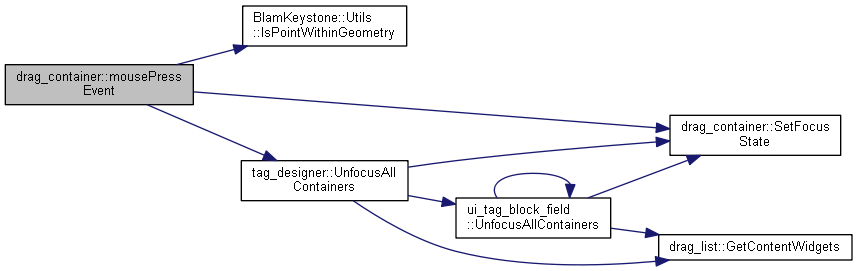

Here is the call graph for this function:

mouseReleaseEvent()

void drag_container::mouseReleaseEvent ( QMouseEvent *  mouse_event )

override

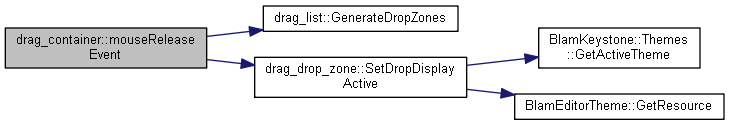

Here is the call graph for this function:

OnEditorThemeChangeEvent()

void drag_container::OnEditorThemeChangeEvent ( EditorThemeChangeEvent *  event )

override

SetFocusState()

void drag_container::SetFocusState	(	bool	focus_state,
		bool	force_update = false
	)

Sets the drag container's focus state.

When focused, the drag container will display slightly differently - exposing certain editing controls to the user.

Parameters

focus_state	- Whether or not the container should be focused.
force_update	- Whether or not to force a UI update. Note that this is only required if the container already has the specified focus state - if the focus state is actually being changed from this method, the UI will update regardless. Defaults to false.

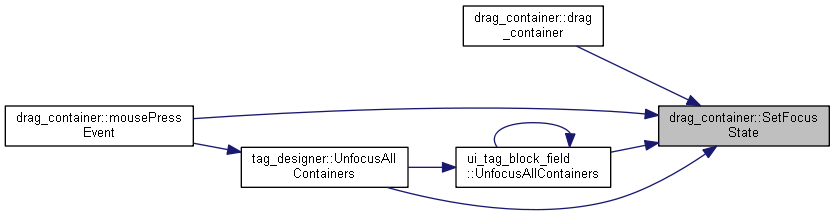

Here is the caller graph for this function:

SetIcon()

void drag_container::SetIcon	(	std::string	group_id,
		std::string	resource_id
	)

Sets the drag container's sidebar icon.

Parameters

group_id	- The ID of the resource group to pull the icon from.
resource_id	- The ID of the resource to use for the icon.

Here is the call graph for this function:

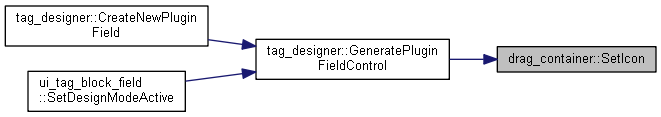

Here is the caller graph for this function:

SetIconVisiblity()

void drag_container::SetIconVisiblity

(

bool

icon_visible_state

)

Sets whether or not the drag container's sidebar icon should be visible.

Parameters

icon_visible_state

- Whether or not the icon should be visible.

Member Data Documentation

designer

tag_designer* drag_container::designer = nullptr

The Tag Designer that this container exists within.

field_data

BlamPluginField* drag_container::field_data = nullptr

The plugin field that belongs to this container.

tag_field_control

BlamEditorTagFieldControl* drag_container::tag_field_control = nullptr

The tag field widget that belongs to this container.

---

The documentation for this class was generated from the following files:

• keystone/components/ui/shared/controls/drag_container/drag_container.h
• keystone/components/ui/shared/controls/drag_container/drag_container.cpp
