fields.h File Reference

#include <string>
#include <vector>
#include <blam/api/v1/types/tags.h>
#include <Strings/components/3rdparty/rapidxml/rapidxml.hpp>

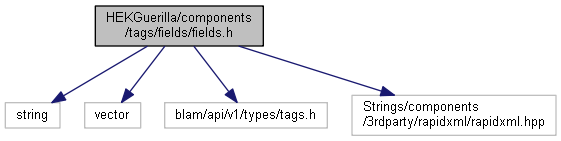

Include dependency graph for fields.h:

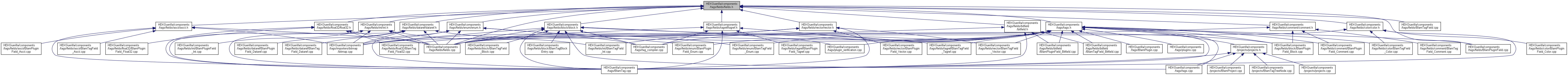

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BlamPluginField
	Class representing a plugin field. More...
class	BlamTagField
	Class representing a tag field. More...

Namespaces
	Guerilla
	Guerilla::Tags
	Namespace containing functions relating to tags and plugins.
	Guerilla::Tags::Fields
	Namespace containing functions relating to tag fields.

Macros
#define	GUERILLA_LIB_INTERNAL
#define	GUERILLA_LIB_API   __declspec(dllimport)

Enumerations
enum	BlamDatarefValueHintType {   BlamDatarefValueHintType::ASM, BlamDatarefValueHintType::BASH, BlamDatarefValueHintType::C, BlamDatarefValueHintType::CPP,   BlamDatarefValueHintType::CMK, BlamDatarefValueHintType::CS, BlamDatarefValueHintType::CSS, BlamDatarefValueHintType::GO,   BlamDatarefValueHintType::HSC, BlamDatarefValueHintType::HTML, BlamDatarefValueHintType::INI, BlamDatarefValueHintType::JS,   BlamDatarefValueHintType::JAVA, BlamDatarefValueHintType::JSON, BlamDatarefValueHintType::LUA, BlamDatarefValueHintType::MAKE,   BlamDatarefValueHintType::PHP, BlamDatarefValueHintType::PY, BlamDatarefValueHintType::QML, BlamDatarefValueHintType::RUST,   BlamDatarefValueHintType::SQL, BlamDatarefValueHintType::TEXT, BlamDatarefValueHintType::TS, BlamDatarefValueHintType::V,   BlamDatarefValueHintType::VEX, BlamDatarefValueHintType::XML, BlamDatarefValueHintType::YAML, BlamDatarefValueHintType::NONE }
	Enumerator listing all supported dataref value hint types. More...
enum	BlamTagFieldType {   BlamTagFieldType::Ascii, BlamTagFieldType::StringId, BlamTagFieldType::Int8, BlamTagFieldType::Int16,   BlamTagFieldType::Int32, BlamTagFieldType::Int64, BlamTagFieldType::Real, BlamTagFieldType::Bitfield8,   BlamTagFieldType::Bitfield16, BlamTagFieldType::Bitfield32, BlamTagFieldType::Enum8, BlamTagFieldType::Enum16,   BlamTagFieldType::Enum32, BlamTagFieldType::Block, BlamTagFieldType::Dataref, BlamTagFieldType::Tagref,   BlamTagFieldType::Comment, BlamTagFieldType::Color, BlamTagFieldType::Vector2, BlamTagFieldType::Vector3,   BlamTagFieldType::Vector4, BlamTagFieldType::Unspecified }
	Enumerator containing all possible tag field types. More...

Functions
GUERILLA_LIB_API int	Guerilla::Tags::Fields::GetStandardFieldLength (BlamTagFieldType type)
	Retrieves the length of a tag field. More...
GUERILLA_LIB_API BlamTagFieldType	Guerilla::Tags::Fields::DetermineFieldType (std::string node_name)
	Determines the field type from a string, used to determine the field type when parsing XML tags and plugins. More...
GUERILLA_LIB_API std::string	Guerilla::Tags::Fields::GetFieldTypeName (BlamTagFieldType type)
	Generates a string name based on the provided tag field type. More...
GUERILLA_LIB_API BlamPluginField *	Guerilla::Tags::Fields::ConfigurePluginField (BlamPluginField *field, BlamTagFieldType field_type, bool *configured=nullptr)
	Configures a specialized plugin field based on a base plugin field, and the desired type. More...
GUERILLA_LIB_API std::string	Guerilla::Tags::Fields::GetDatarefValueHintString (BlamDatarefValueHintType value_hint)
	Generates a string from a given dataref value hint type. More...
GUERILLA_LIB_API BlamDatarefValueHintType	Guerilla::Tags::Fields::ParseDatarefValueHint (std::string value_hint_str)
	Determines a dataref value hint type from a string representation. More...

Macro Definition Documentation

GUERILLA_LIB_API

#define GUERILLA_LIB_API   __declspec(dllimport)

GUERILLA_LIB_INTERNAL

#define GUERILLA_LIB_INTERNAL

Enumeration Type Documentation

BlamDatarefValueHintType

enum BlamDatarefValueHintType

strong

Enumerator listing all supported dataref value hint types.

Dataref Value Hints are used by the Editing Kit to identify the type of data being stored within the data reference. This can be used to provide more interactive editing capabilities, syntax highlighting, and so on.

Each enumerator value should not exceed 4 characters.

Enumerator
ASM	Assembly Code.
BASH	Bash Script.
C	C Code.
CPP	C++ Code.
CMK	CMake Script.
CS	C# Code.
CSS	CSS Stylesheet.
GO	Go (Golang) Code.
HSC	BlamScript/HaloScript Script.
HTML	HTML Markup.
INI	INI Configuration.
JS	JavaScript Code.
JAVA	Java Code.
JSON	JSON Data.
LUA	Lua Script.
MAKE	Make Script.
PHP	PHP Code.
PY	Python Code.
QML	QML Markup.
RUST	Rust Code.
SQL	SQL Statements.
TEXT	Plain Text.
TS	TypeScript Code.
V	V Code.
VEX	Vex Code.
XML	XML Markup.
YAML	YAML Configuration.
NONE	No value hint, no special treatment will be given to the data.

BlamTagFieldType

enum BlamTagFieldType

strong

Enumerator containing all possible tag field types.

Enumerator
Ascii	Indicates that the field is a string of text.
StringId	Indicates that the field is a String ID.
Int8	Indicates that the field is an 8-bit integer.
Int16	Indicates that the field is a 16-bit integer.
Int32	Indicates that the field is a 32-bit integer.
Int64	Indicates that the field is a 32-bit integer.
Real	Indicates that the field is a Float32.
Bitfield8	Indicates that the field is a Bitfield8.
Bitfield16	Indicates that the field is a Bitfield16.
Bitfield32	Indicates that the field is a Bitfield32.
Enum8	Indicates that the field is an Enum8.
Enum16	Indicates that the field is an Enum16.
Enum32	Indicates that the field is an Enum32.
Block	Indicates that the field is a tag block.
Dataref	Indicates that the field is a data reference.
Tagref	Indicates that the field is a tag reference.
Comment	Indicates that the field is a comment. These do not store any tag data.
Color	Indicates that the field is a color.
Vector2	Indicates that the field is a vector2.
Vector3	Indicates that the field is a vector3.
Vector4	Indicates that the field is a vector4.
Unspecified	Indicates that the field's type is not specified. Fields with this type should be considered invalid.
