Demo::Mq::MessageQueueSystem Class Reference

#include <MessageQueueSystem.h>

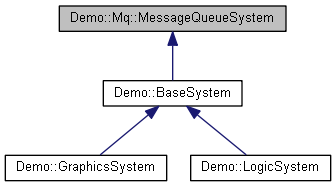

Inheritance diagram for Demo::Mq::MessageQueueSystem:

Public Member Functions
virtual	~MessageQueueSystem ()
template<typename T >
void	queueSendMessage (MessageQueueSystem *dstSystem, Mq::MessageId messageId, const T &msg)
	Queues message 'msg' to be sent to a destination MessageQueueSystem. More...
void	flushQueuedMessages (void)
	Sends all the messages queued via see queueSendMessage(); Must be called from the thread that owns 'this'. More...
template<typename T >
void	receiveMessageImmediately (Mq::MessageId messageId, const T &msg)
	Sends a message to 'this' base system immediately. More...

Protected Member Functions
void	processIncomingMessages (void)
	Processes all incoming messages received from other threads. More...
virtual void	processIncomingMessage (Mq::MessageId messageId, const void *data)=0
	Derived classes must implement this function to process the incoming message. More...

Constructor & Destructor Documentation

~MessageQueueSystem()

virtual Demo::Mq::MessageQueueSystem::~MessageQueueSystem ( )

inlinevirtual

Member Function Documentation

flushQueuedMessages()

void Demo::Mq::MessageQueueSystem::flushQueuedMessages ( void  )

inline

Sends all the messages queued via see queueSendMessage(); Must be called from the thread that owns 'this'.

Here is the caller graph for this function:

processIncomingMessage()

virtual void Demo::Mq::MessageQueueSystem::processIncomingMessage ( Mq::MessageId  messageId, const void *  data  )

protectedpure virtual

Derived classes must implement this function to process the incoming message.

Implemented in Demo::GraphicsSystem, and Demo::LogicSystem.

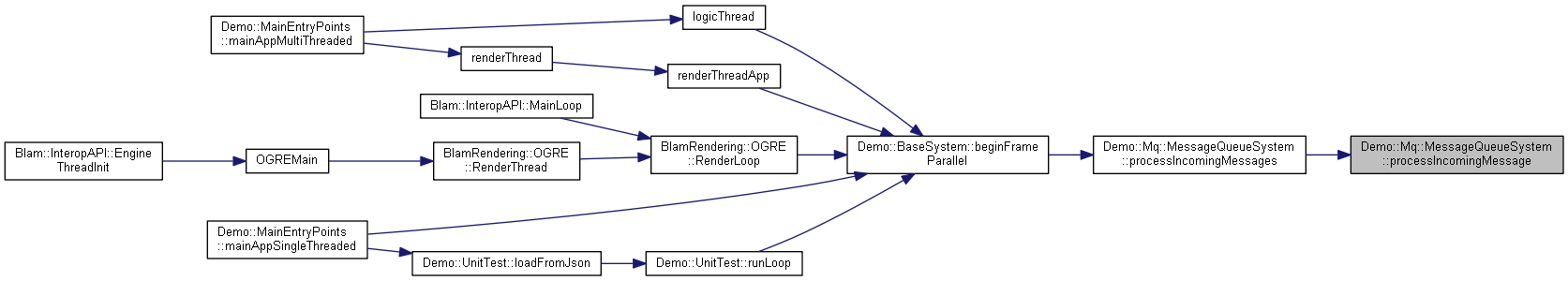

Here is the caller graph for this function:

processIncomingMessages()

void Demo::Mq::MessageQueueSystem::processIncomingMessages ( void  )

inlineprotected

Processes all incoming messages received from other threads.

Should be called from the thread that owns 'this'

Here is the call graph for this function:

Here is the caller graph for this function:

queueSendMessage()

template<typename T >

void Demo::Mq::MessageQueueSystem::queueSendMessage ( MessageQueueSystem *  dstSystem, Mq::MessageId  messageId, const T &  msg  )

inline

Queues message 'msg' to be sent to a destination MessageQueueSystem.

This function must be called from the thread that owns 'this' The 'dstSystem' may live in any other thread.

Remarks

The message is not instantely delivered. It will be sent when flushQueuedMessages gets called.

Parameters

dstSystem	The MessageQueueSystem we want to send a message to.
msg	The message itself. Structure must be POD.

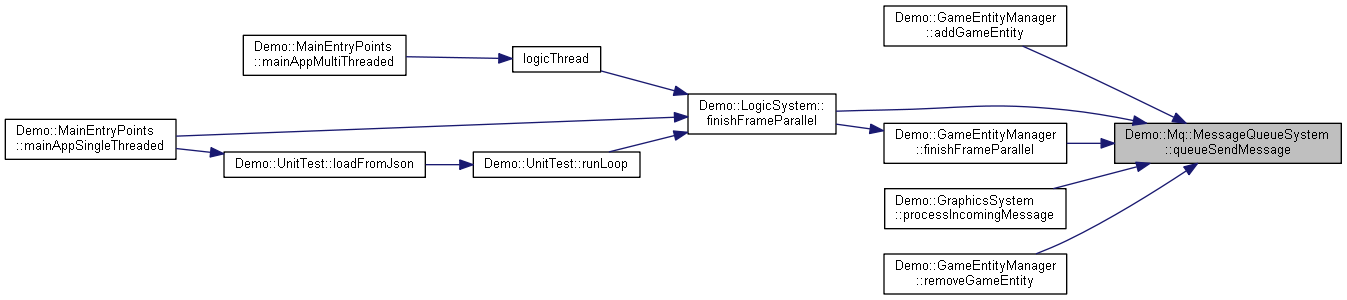

Here is the caller graph for this function:

receiveMessageImmediately()

template<typename T >

void Demo::Mq::MessageQueueSystem::receiveMessageImmediately ( Mq::MessageId  messageId, const T &  msg  )

inline

Sends a message to 'this' base system immediately.

Use it only for time critical messages or if the sender thread doesn't own its own MessageQueueSystem class. Abusing this function can degrade performance as it would perform frequent locking. See queueSendMessage

---

The documentation for this class was generated from the following files:

• blam/components/3rdparty/ogre2/Threading/MessageQueueSystem.h
• blam/components/3rdparty/ogre2/Threading/MessageQueueSystem.cpp
