ImFont Struct Reference

#include <imgui.h>

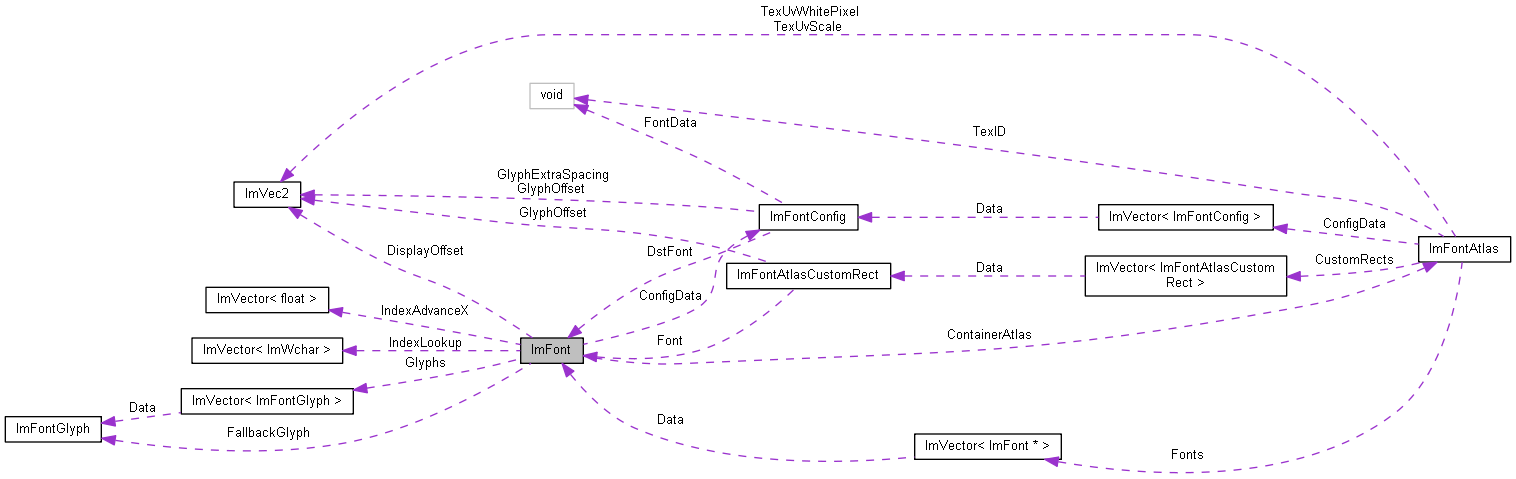

Collaboration diagram for ImFont:

Public Types
typedef ImFontGlyph	Glyph

Public Member Functions
IMGUI_API	ImFont ()
IMGUI_API	~ImFont ()
const IMGUI_API ImFontGlyph *	FindGlyph (ImWchar c) const
const IMGUI_API ImFontGlyph *	FindGlyphNoFallback (ImWchar c) const
float	GetCharAdvance (ImWchar c) const
bool	IsLoaded () const
const char *	GetDebugName () const
IMGUI_API ImVec2	CalcTextSizeA (float size, float max_width, float wrap_width, const char *text_begin, const char *text_end=NULL, const char **remaining=NULL) const
const IMGUI_API char *	CalcWordWrapPositionA (float scale, const char *text, const char *text_end, float wrap_width) const
IMGUI_API void	RenderChar (ImDrawList *draw_list, float size, ImVec2 pos, ImU32 col, ImWchar c) const
IMGUI_API void	RenderText (ImDrawList *draw_list, float size, ImVec2 pos, ImU32 col, const ImVec4 &clip_rect, const char *text_begin, const char *text_end, float wrap_width=0.0f, bool cpu_fine_clip=false) const
IMGUI_API void	BuildLookupTable ()
IMGUI_API void	ClearOutputData ()
IMGUI_API void	GrowIndex (int new_size)
IMGUI_API void	AddGlyph (ImWchar c, float x0, float y0, float x1, float y1, float u0, float v0, float u1, float v1, float advance_x)
IMGUI_API void	AddRemapChar (ImWchar dst, ImWchar src, bool overwrite_dst=true)
IMGUI_API void	SetFallbackChar (ImWchar c)

Public Attributes
ImVector< float >	IndexAdvanceX
float	FallbackAdvanceX
float	FontSize
ImVector< ImWchar >	IndexLookup
ImVector< ImFontGlyph >	Glyphs
const ImFontGlyph *	FallbackGlyph
ImVec2	DisplayOffset
ImFontAtlas *	ContainerAtlas
const ImFontConfig *	ConfigData
short	ConfigDataCount
ImWchar	FallbackChar
ImWchar	EllipsisChar
float	Scale
float	Ascent
float	Descent
int	MetricsTotalSurface
bool	DirtyLookupTables

Member Typedef Documentation

Glyph

typedef ImFontGlyph ImFont::Glyph

Constructor & Destructor Documentation

ImFont()

ImFont::ImFont

(

)

~ImFont()

ImFont::~ImFont

(

)

Member Function Documentation

AddGlyph()

void ImFont::AddGlyph	(	ImWchar	c,
		float	x0,
		float	y0,
		float	x1,
		float	y1,
		float	u0,
		float	v0,
		float	u1,
		float	v1,
		float	advance_x
	)

AddRemapChar()

void ImFont::AddRemapChar	(	ImWchar	dst,
		ImWchar	src,
		bool	overwrite_dst = true
	)

BuildLookupTable()

void ImFont::BuildLookupTable

(

)

CalcTextSizeA()

ImVec2 ImFont::CalcTextSizeA	(	float	size,
		float	max_width,
		float	wrap_width,
		const char *	text_begin,
		const char *	text_end = NULL,
		const char **	remaining = NULL
	)		const

CalcWordWrapPositionA()

const char * ImFont::CalcWordWrapPositionA	(	float	scale,
		const char *	text,
		const char *	text_end,
		float	wrap_width
	)		const

Here is the call graph for this function:

ClearOutputData()

void ImFont::ClearOutputData

(

)

FindGlyph()

const ImFontGlyph * ImFont::FindGlyph

(

ImWchar

c

)

const

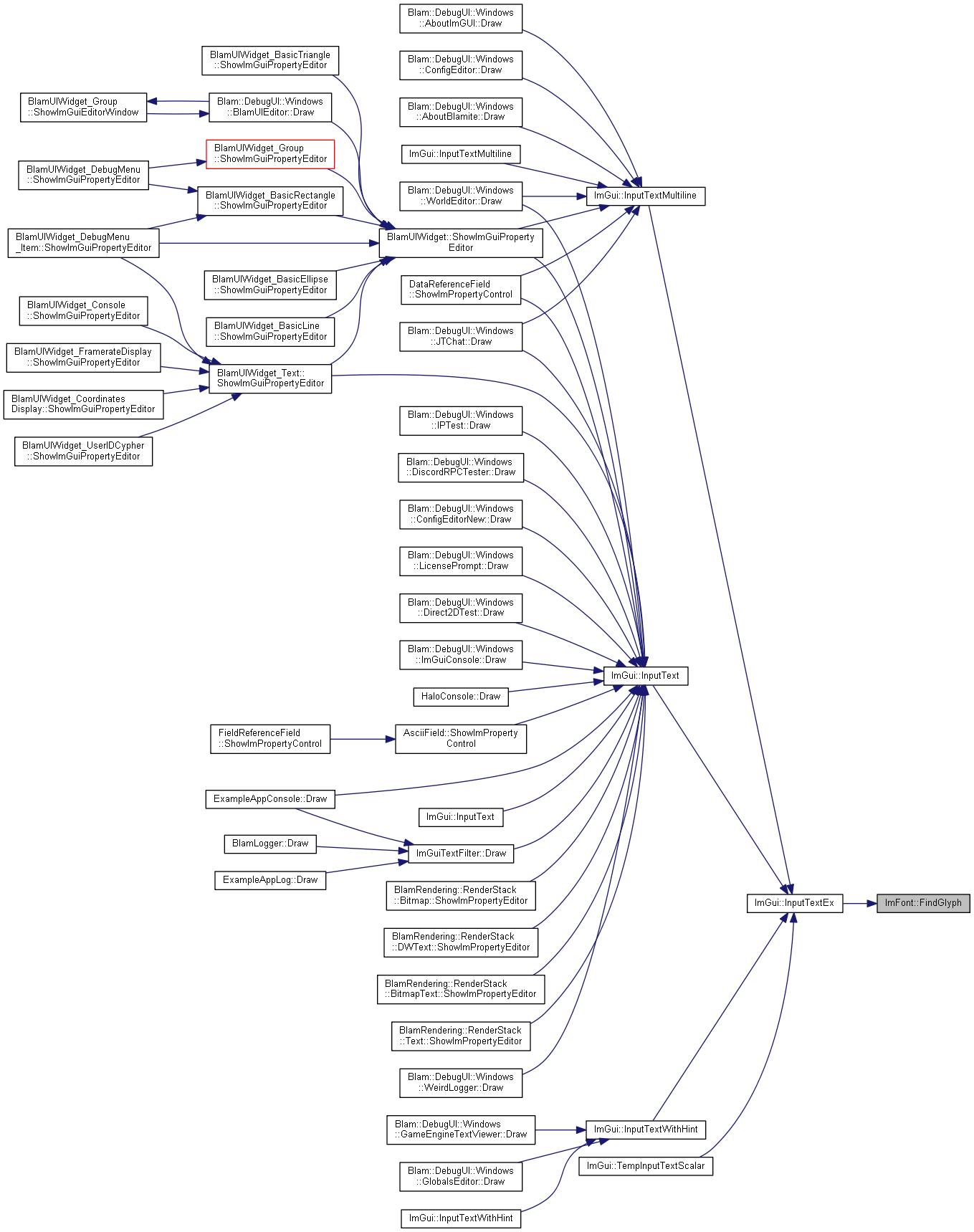

Here is the caller graph for this function:

FindGlyphNoFallback()

const ImFontGlyph * ImFont::FindGlyphNoFallback

(

ImWchar

c

)

const

GetCharAdvance()

float ImFont::GetCharAdvance ( ImWchar  c ) const

inline

GetDebugName()

const char* ImFont::GetDebugName ( ) const

inline

Here is the caller graph for this function:

GrowIndex()

void ImFont::GrowIndex

(

int

new_size

)

IsLoaded()

bool ImFont::IsLoaded ( ) const

inline

Here is the caller graph for this function:

RenderChar()

void ImFont::RenderChar	(	ImDrawList *	draw_list,
		float	size,
		ImVec2	pos,
		ImU32	col,
		ImWchar	c
	)		const

Here is the call graph for this function:

RenderText()

void ImFont::RenderText	(	ImDrawList *	draw_list,
		float	size,
		ImVec2	pos,
		ImU32	col,
		const ImVec4 &	clip_rect,
		const char *	text_begin,
		const char *	text_end,
		float	wrap_width = 0.0f,
		bool	cpu_fine_clip = false
	)		const

Here is the call graph for this function:

SetFallbackChar()

void ImFont::SetFallbackChar

(

ImWchar

c

)

Member Data Documentation

Ascent

float ImFont::Ascent

ConfigData

const ImFontConfig* ImFont::ConfigData

ConfigDataCount

short ImFont::ConfigDataCount

ContainerAtlas

ImFontAtlas* ImFont::ContainerAtlas

Descent

float ImFont::Descent

DirtyLookupTables

bool ImFont::DirtyLookupTables

DisplayOffset

ImVec2 ImFont::DisplayOffset

EllipsisChar

ImWchar ImFont::EllipsisChar

FallbackAdvanceX

float ImFont::FallbackAdvanceX

FallbackChar

ImWchar ImFont::FallbackChar

FallbackGlyph

const ImFontGlyph* ImFont::FallbackGlyph

FontSize

float ImFont::FontSize

Glyphs

ImVector<ImFontGlyph> ImFont::Glyphs

IndexAdvanceX

ImVector<float> ImFont::IndexAdvanceX

IndexLookup

ImVector<ImWchar> ImFont::IndexLookup

MetricsTotalSurface

int ImFont::MetricsTotalSurface

Scale

float ImFont::Scale

---

The documentation for this struct was generated from the following files:

• blam/components/3rdparty/imgui/imgui.h
• blam/components/3rdparty/imgui/imgui_draw.cpp
