Clas representing a bitfield plugin field. More...

#include <bitfield.h>

Inheritance diagram for BlamPluginField_Bitfield:

Collaboration diagram for BlamPluginField_Bitfield:

Public Member Functions
	BlamPluginField_Bitfield (BlamPluginField *base_field)
	Constructs a new bitfield plugin field from an existing generic plugin field. More...

std::string	GenerateXMLString () override
	Generates a string representing this plugin field. More...

std::string	GenerateCppStructString (std::string line_prefix="", bool generate_doxygen_comments=true) override
	Generates a string containing C++ code representing this plugin field. More...

std::string	GenerateCppClassString (std::string line_prefix="") override
	Generates a string containing C++ code representing this plugin field. More...

bool	ParseXMLData (rapidxml::xml_node<> *field_node) override
	Populates data within the plugin field from an XML node. More...

BlamTagField *	GenerateTagField (BlamTag tag, void address) override
	Generates a new tag field from this plugin field. More...

BlamTagField *	GenerateTagField (BlamTag *tag) override
	Generates a new tag field from this plugin field. More...

Public Member Functions inherited from BlamPluginField
	BlamPluginField (BlamPlugin *_plugin, BlamTagFieldType _type)
	Constructs a new plugin field. More...

	BlamPluginField (BlamPluginField *_old_field)
	Constructs a new plugin field. More...

BlamTagFieldType	GetType ()
	Retrieves the type of this field. More...

BlamPlugin *	GetPlugin ()
	Retrieves the plugin this field is associated with. More...

virtual BlamTagField *	GenerateTagField (BlamTagField *existing_tag_field)
	Generates a new tag field from this plugin field. More...

virtual void	UpdateOffsetData (int new_offset)
	Updates any offsets or lengths for the given field. More...

void	ChangeType (BlamTagFieldType new_type)
	Changes the type of a plugin field. More...

Public Attributes
std::vector< BlamBitfieldBitInfo >	bits
	The list of bits within this bitfield. More...

Public Attributes inherited from BlamPluginField
int	offset = 0x0
	The offset of the field data. More...

int	length = 0x0
	The length of the field data. More...

bool	visible = true
	Whether or not the field is visible. More...

std::string	display_name = ""
	The display name of the field. More...

std::string	description = ""
	An optional description of the field. More...

std::string	field_id = ""
	The ID of the field. More...

std::string	input_hint = ""
	An additional piece of short text that can be used to suggest valid input for a field. More...

bool	require_unused_visible = false
	If enabled, this field will only be visible when "Show Unused Fields" is enabled. More...

std::string	default_value = ""
	The default text value for the field. More...

Detailed Description

Clas representing a bitfield plugin field.

Bitfields contain a series of flags, or 'bits'.

Constructor & Destructor Documentation

◆ BlamPluginField_Bitfield()

BlamPluginField_Bitfield::BlamPluginField_Bitfield ( BlamPluginField * base_field )

Constructs a new bitfield plugin field from an existing generic plugin field.

Parameters

base_field - The base plugin data to use for this field.

Member Function Documentation

◆ GenerateCppClassString()

std::string BlamPluginField_Bitfield::GenerateCppClassString ( std::string line_prefix = "" )

overridevirtual

Generates a string containing C++ code representing this plugin field.

This method will generate a string containing C++ code that is intended for use within the BlamTagClass class. This class is used by the game engine to store a tag class layout, allowing for in-engine tools to present a tag data editing UI among other things.

Parameters

line_prefix - A string that should be placed before each line, such as a certain amount of indentation spaces.

Returns: A string containing C++ code representing the field and its data.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateCppStructString()

std::string BlamPluginField_Bitfield::GenerateCppStructString	(	std::string	line_prefix = `""`,
		bool	generate_doxygen_comments = `true`
	)

overridevirtual

Generates a string containing C++ code representing this plugin field.

This method will generate a string containing C++ code that is intended for use within the tag class data structure. This is intended to be used when exporting a tag class to C++ code.

Parameters

line_prefix - A string that should be placed before each line, such as a certain amount of indentation spaces.

Returns: A string containing C++ code representing the field and its data.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateTagField() [1/2]

BlamTagField * BlamPluginField_Bitfield::GenerateTagField ( BlamTag * tag )

overridevirtual

Generates a new tag field from this plugin field.

With this overload, a brand new tag field is created with no value.

Parameters

tag	- The tag the new field should belong to.

Returns: Pointer to the new tag field.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateTagField() [2/2]

BlamTagField * BlamPluginField_Bitfield::GenerateTagField	(	BlamTag *	tag,
		void *	address
	)

overridevirtual

Generates a new tag field from this plugin field.

With this overload, a new field is created and its value(s) are read from the tag data. This should only be used when reading binary (compiled) tag files.

Parameters

tag	- The tag the new field should belong to.
address	- The address of the field value.

Returns: Pointer to the new tag field.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateXMLString()

std::string BlamPluginField_Bitfield::GenerateXMLString ( )

overridevirtual

Generates a string representing this plugin field.

Returns: An XML string containing the field ID and other attributes.

Reimplemented from BlamPluginField.

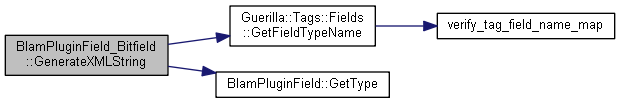

Here is the call graph for this function:

◆ ParseXMLData()

bool BlamPluginField_Bitfield::ParseXMLData ( rapidxml::xml_node<> * field_node )

overridevirtual

Populates data within the plugin field from an XML node.

This is intended for use when loading a plugin from an XML document.

Parameters

field_node - Pointer to the XML node to parse plugin field data from.

Returns: true if all required field data was parsed, otherwise returns false. If this returns false, this field should be deleted and should NOT be added to the plugin - as this indicates an issue with the original plugin file.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

Member Data Documentation

◆ bits

std::vector<BlamBitfieldBitInfo> BlamPluginField_Bitfield::bits

The list of bits within this bitfield.

The documentation for this class was generated from the following files:

HEKGuerilla/components/tags/fields/bitfield/bitfield.h
HEKGuerilla/components/tags/fields/bitfield/BlamPluginField_Bitfield.cpp
