Class representing a plugin enum field. More...

#include <enum.h>

Inheritance diagram for BlamPluginField_Enum:

Collaboration diagram for BlamPluginField_Enum:

Public Member Functions
	BlamPluginField_Enum (BlamPluginField *base_field)
	Constructs a new block plugin field from an existing generic plugin field. More...

std::string	GenerateXMLString () override
	Generates a string representing this plugin field. More...

std::string	GenerateCppStructString (std::string line_prefix="", bool generate_doxygen_comments=true) override
	Generates a string containing C++ code representing this plugin field. More...

std::string	GenerateCppClassString (std::string line_prefix="") override
	Generates a string containing C++ code representing this plugin field. More...

bool	ParseXMLData (rapidxml::xml_node<> *field_node) override
	Populates data within the plugin field from an XML node. More...

BlamTagField *	GenerateTagField (BlamTag tag, void address) override
	Generates a new tag field from this plugin field. More...

BlamTagField *	GenerateTagField (BlamTag *tag) override
	Generates a new tag field from this plugin field. More...

std::string	GenerateCppGlobalEnumString (std::string line_prefix="", bool generate_doxygen_comments=true)

std::string	GetGlobalEnumName ()

Public Member Functions inherited from BlamPluginField
	BlamPluginField (BlamPlugin *_plugin, BlamTagFieldType _type)
	Constructs a new plugin field. More...

	BlamPluginField (BlamPluginField *_old_field)
	Constructs a new plugin field. More...

BlamTagFieldType	GetType ()
	Retrieves the type of this field. More...

BlamPlugin *	GetPlugin ()
	Retrieves the plugin this field is associated with. More...

virtual BlamTagField *	GenerateTagField (BlamTagField *existing_tag_field)
	Generates a new tag field from this plugin field. More...

virtual void	UpdateOffsetData (int new_offset)
	Updates any offsets or lengths for the given field. More...

void	ChangeType (BlamTagFieldType new_type)
	Changes the type of a plugin field. More...

Public Attributes
std::vector< BlamEnumFieldOption >	options
	The list of options within the enum. More...

bool	define_in_global_scope = false

std::string	global_enum_name = ""

bool	bound_to_global_enum = false

std::string	bound_enum_id = ""

BlamPluginField_Enum *	bound_enum = nullptr

Public Attributes inherited from BlamPluginField
int	offset = 0x0
	The offset of the field data. More...

int	length = 0x0
	The length of the field data. More...

bool	visible = true
	Whether or not the field is visible. More...

std::string	display_name = ""
	The display name of the field. More...

std::string	description = ""
	An optional description of the field. More...

std::string	field_id = ""
	The ID of the field. More...

std::string	input_hint = ""
	An additional piece of short text that can be used to suggest valid input for a field. More...

bool	require_unused_visible = false
	If enabled, this field will only be visible when "Show Unused Fields" is enabled. More...

std::string	default_value = ""
	The default text value for the field. More...

Detailed Description

Class representing a plugin enum field.

Enum fields allow for the selection of one of any number of preset values.

Plugin enum fields store all possible options within the enum.

Constructor & Destructor Documentation

◆ BlamPluginField_Enum()

BlamPluginField_Enum::BlamPluginField_Enum ( BlamPluginField * base_field )

Constructs a new block plugin field from an existing generic plugin field.

Parameters

base_field - The base plugin data to use for this field.

Member Function Documentation

◆ GenerateCppClassString()

std::string BlamPluginField_Enum::GenerateCppClassString ( std::string line_prefix = "" )

overridevirtual

Generates a string containing C++ code representing this plugin field.

This method will generate a string containing C++ code that is intended for use within the BlamTagClass class. This class is used by the game engine to store a tag class layout, allowing for in-engine tools to present a tag data editing UI among other things.

Parameters

line_prefix - A string that should be placed before each line, such as a certain amount of indentation spaces.

Returns: A string containing C++ code representing the field and its data.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateCppGlobalEnumString()

std::string BlamPluginField_Enum::GenerateCppGlobalEnumString	(	std::string	line_prefix = `""`,
		bool	generate_doxygen_comments = `true`
	)

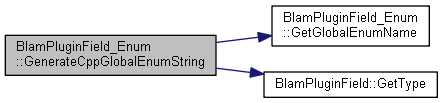

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GenerateCppStructString()

std::string BlamPluginField_Enum::GenerateCppStructString	(	std::string	line_prefix = `""`,
		bool	generate_doxygen_comments = `true`
	)

overridevirtual

Generates a string containing C++ code representing this plugin field.

This method will generate a string containing C++ code that is intended for use within the tag class data structure. This is intended to be used when exporting a tag class to C++ code.

Parameters

line_prefix - A string that should be placed before each line, such as a certain amount of indentation spaces.

Returns: A string containing C++ code representing the field and its data.

Reimplemented from BlamPluginField.

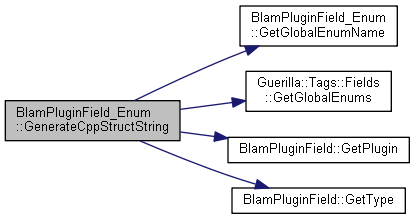

Here is the call graph for this function:

◆ GenerateTagField() [1/2]

BlamTagField * BlamPluginField_Enum::GenerateTagField ( BlamTag * tag )

overridevirtual

Generates a new tag field from this plugin field.

With this overload, a brand new tag field is created with no value.

Parameters

tag	- The tag the new field should belong to.

Returns: Pointer to the new tag field.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateTagField() [2/2]

BlamTagField * BlamPluginField_Enum::GenerateTagField	(	BlamTag *	tag,
		void *	address
	)

overridevirtual

Generates a new tag field from this plugin field.

With this overload, a new field is created and its value(s) are read from the tag data. This should only be used when reading binary (compiled) tag files.

Parameters

tag	- The tag the new field should belong to.
address	- The address of the field value.

Returns: Pointer to the new tag field.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GenerateXMLString()

std::string BlamPluginField_Enum::GenerateXMLString ( )

overridevirtual

Generates a string representing this plugin field.

Returns: An XML string containing the field ID and other attributes.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

◆ GetGlobalEnumName()

std::string BlamPluginField_Enum::GetGlobalEnumName ( )

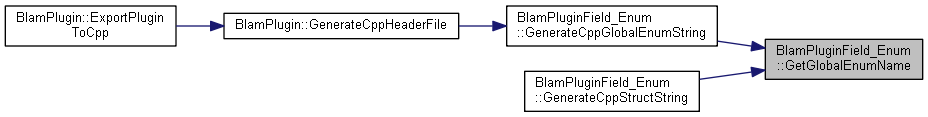

Here is the caller graph for this function:

◆ ParseXMLData()

bool BlamPluginField_Enum::ParseXMLData ( rapidxml::xml_node<> * field_node )

overridevirtual

Populates data within the plugin field from an XML node.

This is intended for use when loading a plugin from an XML document.

Parameters

field_node - Pointer to the XML node to parse plugin field data from.

Returns: true if all required field data was parsed, otherwise returns false. If this returns false, this field should be deleted and should NOT be added to the plugin - as this indicates an issue with the original plugin file.

Reimplemented from BlamPluginField.

Here is the call graph for this function:

Member Data Documentation

◆ bound_enum

BlamPluginField_Enum* BlamPluginField_Enum::bound_enum = nullptr

◆ bound_enum_id

std::string BlamPluginField_Enum::bound_enum_id = ""

◆ bound_to_global_enum

bool BlamPluginField_Enum::bound_to_global_enum = false

◆ define_in_global_scope

bool BlamPluginField_Enum::define_in_global_scope = false

◆ global_enum_name

std::string BlamPluginField_Enum::global_enum_name = ""

◆ options

std::vector<BlamEnumFieldOption> BlamPluginField_Enum::options

The list of options within the enum.

The documentation for this class was generated from the following files:

HEKGuerilla/components/tags/fields/enum/enum.h
HEKGuerilla/components/tags/fields/enum/BlamPluginField_Enum.cpp
