Class representing Blamite theme metrics. More...
#include <themes.h>
Collaboration diagram for BlamThemeMetrics:Public Member Functions | |
| void | ApplyMetrics () |
| Applies the metrics to the engine UI. More... | |
Public Attributes | |
| std::string | name |
| The name of the theme metrics. More... | |
| std::string | id |
| The ID of the theme metrics. More... | |
| ImVec2 | window_padding = ImVec2(8, 8) |
| Window padding. More... | |
| ImVec2 | frame_padding = ImVec2(4, 3) |
| Frame padding. More... | |
| ImVec2 | item_spacing = ImVec2(8, 4) |
| Outer item spacing. More... | |
| ImVec2 | item_inner_spacing = ImVec2(4, 4) |
| Inner item spacing. More... | |
| ImVec2 | touch_extra_padding = ImVec2(0, 0) |
| Extra padding to use when using touch UI. More... | |
| float | indent_spacing = 21 |
| Default indentation spacing amount. More... | |
| float | scrollbar_size = 14 |
| Scrollbar size. More... | |
| float | grab_min_size = 10 |
| Minimum grab handle size. More... | |
| float | window_border = 1 |
| Window border thickness. More... | |
| float | child_border = 1 |
| Child window border thickness. More... | |
| float | popup_border = 1 |
| Popup modal border thickness. More... | |
| float | frame_border = 0 |
| Frame border thickness. More... | |
| float | tab_border = 0 |
| Tab border thickness. More... | |
| float | window_rounding = 7 |
| The amount of rounding to apply to window frames. More... | |
| float | child_rounding = 0 |
| The amount of rounding to apply to child window frames. More... | |
| float | frame_rounding = 0 |
| The amount of rounding to apply to non-window frames. More... | |
| float | popup_rounding = 0 |
| The amount of rounding to apply to popup modals. More... | |
| float | grab_rounding = 0 |
| The amount of rounding to apply to grab handles. More... | |
| float | tab_rounding = 4 |
| The amount of rounding to apply to tab corners. More... | |
| float | scrollbar_rounding = 9 |
| The amount of rounding to apply to scrollbars. More... | |
| ImGuiDir | window_menu_button_pos = ImGuiDir_Left |
| Window button alignment direction. More... | |
| ImGuiDir | color_button_pos = ImGuiDir_Right |
| Color button alignment direction. More... | |
| ImVec2 | window_title_align = ImVec2(0, 0.5f) |
| Window title alignment. More... | |
| ImVec2 | button_text_align = ImVec2(0.5f, 0.5f) |
| Button text alignment. More... | |
| ImVec2 | selectable_text_align = ImVec2(0, 0) |
| Selectable text alignment. More... | |
| ImVec2 | safe_area_padding = ImVec2(3, 3) |
| Safe area padding. More... | |
| ImVec2 | display_window_padding = ImVec2(19, 19) |
| Display window padding. More... | |
| bool | anti_aliased_lines = true |
| Whether or not lines should be anti-aliased. More... | |
| bool | anti_aliased_fill = true |
| Whether or not filled areas should be anti-aliased. More... | |
| float | curve_tesselation_tolerance = 1.25f |
| Curve tesselation tolerance. More... | |
| float | global_alpha = 1.0f |
| Global alpha. More... | |
| ImVec2 | window_min_size = ImVec2(32, 32) |
| Minimum window size. More... | |
| float | imgui_mouse_scale = 1.0f |
| Custom cursor scale. More... | |
| float | column_min_spacing = 6.0f |
| Minimum column spacing. More... | |
Class representing Blamite theme metrics.
Theme metrics are used to control the sizes, padding, and margins of the UI - rather than the colors.
| void BlamThemeMetrics::ApplyMetrics | ( | ) |
Applies the metrics to the engine UI.

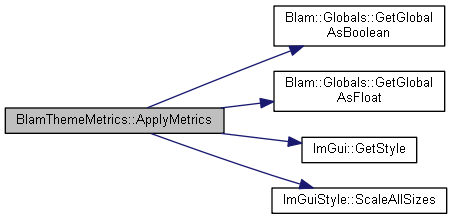

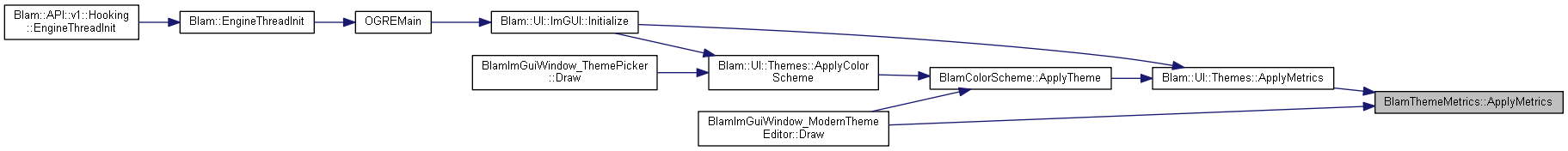

Here is the call graph for this function: Here is the caller graph for this function:| bool BlamThemeMetrics::anti_aliased_fill = true |
Whether or not filled areas should be anti-aliased.
| bool BlamThemeMetrics::anti_aliased_lines = true |
Whether or not lines should be anti-aliased.
| float BlamThemeMetrics::child_border = 1 |
Child window border thickness.
| float BlamThemeMetrics::child_rounding = 0 |
The amount of rounding to apply to child window frames.
| ImGuiDir BlamThemeMetrics::color_button_pos = ImGuiDir_Right |
Color button alignment direction.
| float BlamThemeMetrics::column_min_spacing = 6.0f |
Minimum column spacing.
| float BlamThemeMetrics::curve_tesselation_tolerance = 1.25f |
Curve tesselation tolerance.
| float BlamThemeMetrics::frame_border = 0 |
Frame border thickness.
| float BlamThemeMetrics::frame_rounding = 0 |
The amount of rounding to apply to non-window frames.
| float BlamThemeMetrics::global_alpha = 1.0f |
Global alpha.
| float BlamThemeMetrics::grab_min_size = 10 |
Minimum grab handle size.
| float BlamThemeMetrics::grab_rounding = 0 |
The amount of rounding to apply to grab handles.
| std::string BlamThemeMetrics::id |
The ID of the theme metrics.
| float BlamThemeMetrics::imgui_mouse_scale = 1.0f |
Custom cursor scale.
| float BlamThemeMetrics::indent_spacing = 21 |
Default indentation spacing amount.
| std::string BlamThemeMetrics::name |
The name of the theme metrics.
| float BlamThemeMetrics::popup_border = 1 |
Popup modal border thickness.
| float BlamThemeMetrics::popup_rounding = 0 |
The amount of rounding to apply to popup modals.
| float BlamThemeMetrics::scrollbar_rounding = 9 |
The amount of rounding to apply to scrollbars.
| float BlamThemeMetrics::scrollbar_size = 14 |
Scrollbar size.
| float BlamThemeMetrics::tab_border = 0 |
Tab border thickness.
| float BlamThemeMetrics::tab_rounding = 4 |
The amount of rounding to apply to tab corners.
Extra padding to use when using touch UI.
| float BlamThemeMetrics::window_border = 1 |
Window border thickness.
| ImGuiDir BlamThemeMetrics::window_menu_button_pos = ImGuiDir_Left |
Window button alignment direction.
| float BlamThemeMetrics::window_rounding = 7 |
The amount of rounding to apply to window frames.
