BlamWorldObject_Primitive Class Reference

Class representing a primitive-based world object. More...

#include <world_objects.h>

Inheritance diagram for BlamWorldObject_Primitive:

Collaboration diagram for BlamWorldObject_Primitive:

Public Member Functions
	BlamWorldObject_Primitive (Blam3DPrimitiveType _primitive_type, BlamWorldState *_world)
	Creates a new primitive world object. More...
	~BlamWorldObject_Primitive ()
void	Render ()
	Renders the object to the screen. More...
Public Member Functions inherited from BlamWorldObject
	BlamWorldObject (BlamWorldState *_world, BlamWorldObjectType _type)
	Creates a new world object. More...
virtual	~BlamWorldObject ()

Public Attributes
Blam3DPrimitiveType	primitive_type = Blam3DPrimitiveType::Cuboid
	The type of primitive this object represents. More...
Ogre::ManualObject *	manual_object = nullptr
Ogre::SceneNode *	node = nullptr
Ogre::HlmsDatablock *	datablock = nullptr
float	radius_0 = 1.0f
	The radius of the primitive. Only used in cylinders. More...
float	radius_1 = 1.0f
	A secondary radius of the primitive. Only used in cylinders. More...
int	resolution = 5
	The level of detail to use for the primitive. Only used in cylinders. More...
BlamColor	color = BlamColor(255, 255, 255)
bool	solid = true
Public Attributes inherited from BlamWorldObject
std::string	name = "unnamed"
	The unique name of this object. More...
std::string	description = ""
	An optional description of this object. More...
int	editor_folder_id = 0
	The editor folder that this object exists within. Only used within the editing kit. More...
uint64_t	id = 0
	A unique identifier for this object. Used to identify objects during runtime. More...
BlamWorldState *	world = nullptr
	The world state this object belongs to. More...
BlamVector3	position = { 0, 0, 0 }
	The position of this object in world space. More...
BlamVector3	rotation = { 0, 0, 0 }
	The rotation of this object in world space. More...
BlamVector3	scale = { 1, 1, 1 }
	The scale/size of the object. More...
BlamWorldObjectType	type = BlamWorldObjectType::Unspecified
	The type of this world object. More...

Detailed Description

Class representing a primitive-based world object.

Primitive world objects are simple world objects that render a generic 3D shape. These are currently planned to only be used for early testing and debugging, and will be eventually be replaced with tags once the proper tag classes are implemented.

For all possible primitive types, see Blam3DPrimitiveType.

Constructor & Destructor Documentation

BlamWorldObject_Primitive()

BlamWorldObject_Primitive::BlamWorldObject_Primitive	(	Blam3DPrimitiveType	_primitive_type,
		BlamWorldState *	_world
	)

Creates a new primitive world object.

Parameters

_tag_data	- The tag data that this object should represent.
_world	- The world state this object should belong to.

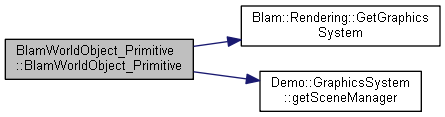

Here is the call graph for this function:

~BlamWorldObject_Primitive()

BlamWorldObject_Primitive::~BlamWorldObject_Primitive

(

)

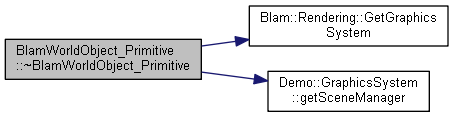

Here is the call graph for this function:

Member Function Documentation

Render()

void BlamWorldObject_Primitive::Render ( )

virtual

Renders the object to the screen.

Reimplemented from BlamWorldObject.

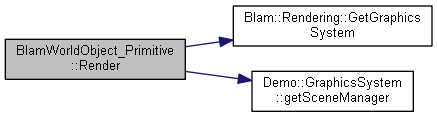

Here is the call graph for this function:

Member Data Documentation

color

BlamColor BlamWorldObject_Primitive::color = BlamColor(255, 255, 255)

datablock

Ogre::HlmsDatablock* BlamWorldObject_Primitive::datablock = nullptr

manual_object

Ogre::ManualObject* BlamWorldObject_Primitive::manual_object = nullptr

node

Ogre::SceneNode* BlamWorldObject_Primitive::node = nullptr

primitive_type

Blam3DPrimitiveType BlamWorldObject_Primitive::primitive_type = Blam3DPrimitiveType::Cuboid

The type of primitive this object represents.

radius_0

float BlamWorldObject_Primitive::radius_0 = 1.0f

The radius of the primitive. Only used in cylinders.

radius_1

float BlamWorldObject_Primitive::radius_1 = 1.0f

A secondary radius of the primitive. Only used in cylinders.

resolution

int BlamWorldObject_Primitive::resolution = 5

The level of detail to use for the primitive. Only used in cylinders.

solid

bool BlamWorldObject_Primitive::solid = true

---

The documentation for this class was generated from the following files:

• blam/api/v1/types/world_objects.h
• blam/api/v1/types/world/BlamWorldObject_Primitive.cpp
