Blam Namespace Reference

Namespace surrounding all major engine components. More...

Namespaces
	Animation
	Namespace for animation data.
	API
	Cache
	Namespace containing functions related to caching.
	Content
	CrashScreen
	Namespace for the engine's crash screen and error handling.
	Diagnostics
	Namespace containing functions related to engine diagnostics, profiling, error handling, and logging.
	DialogHelpers
	Namespace containing helper functions for Win32 dialogs.
	Dialogs
	Namespace containing things related to the displaying of Win32 dialogs.
	Director
	Namespace for things related to the debug camera (director).
	DiscordRPC
	Namespace containing things related to Discord Rich Presence.
	EngineDefs
	Namespace containing core engine information.
	EngineText
	Namespace for things related to game engine strings.
	Extensions
	Namespace containing functions for extensions.
	Globals
	Namespace containing functions relating to game engine globals.
	Input
	Namespace containing functions for handling input from keyboards, mice, etc.
	Logger
	Namespace containing things related to the Blamite Logger.
	Modules
	Network
	Namespace containing things related to networking.
	Networking
	Placeholders
	Namespace containing things related to the Placeholders system.
	Reader
	Rendering
	Namespace for things relating to rendering.
	Resources
	Sentry
	Namespace for things relating to Sentry.
	Settings
	Namespace containing functions used to access various game engine settings.
	Tick
	Namespace containing components relating to the game tick.
	UI
	Namespace containing functions relating to the Blamite UI system.
	User
	TBA.
	Utils
	Namespace containing general-purpose utilities.
	World
	Namespace containing functions for interacting with the current world state.
	Writer

Classes
struct	Endpoint
struct	LinearAllocator
struct	Socket

Functions
BLAM void	Assert (const char *expression, const char *file, int line)
	Forces an engine assertion failure, and shows the crash screen. More...
BLAM void	Assert (const char *expression, const char *file, int line, std::string message)
	Forces an engine assertion failure, and shows the crash screen, with additional details. More...
BLAM void	linearAllocCreate (Blam::LinearAllocator *alloc, UINT64 size)
BLAM UINT8 *	linearAlloc (Blam::LinearAllocator *alloc, UINT64 size)
BLAM BlamRuntimeConfiguration	GetCurrentRuntimeConfig ()
	Retrieves the current runtime configuration. More...
BLAM BlamContentSource	GetContentSource ()
	Retrieves the current content source. More...
BLAM HWND	GetWin32MainWindowHandle ()
	Retrieves the main window handle of the application. More...
BLAM HMODULE	GetEngineDLLHandle ()
	Retrieves the module handle for the engine. More...
BLAM SDL_Window *	GetMainWindowHandle ()
	Retrieves the main window handle of the application, when using SDL. More...
BLAM bool	MainWindowProcedure (SDL_Event event)
	Window procedure for the main application window. More...
BLAM int	StartEngine (int args_count, char *args[], SDL_Window *window)
	Entry point for the engine. More...
BLAM int	EngineThreadInit ()
	Performs any additional engine initialization that needs to be called within the engine loop thread. More...
BLAM void	MainLoop ()
	Function for the engine's main loop. More...
BLAM void	CleanupEngineResources ()
	Instructs the engine to clean up any resources. More...

Detailed Description

Namespace surrounding all major engine components.

Function Documentation

Assert() [1/2]

void Blam::Assert	(	const char *	expression,
		const char *	file,
		int	line
	)

Forces an engine assertion failure, and shows the crash screen.

This function should NOT be called directly - use the BLAM_ASSERT macro instead.

Parameters

exc	- The value, function, or equation that failed to return true.
file	- The .cpp file that caused the assertion.
line	- The line number of the .cpp file that caused the assertion.

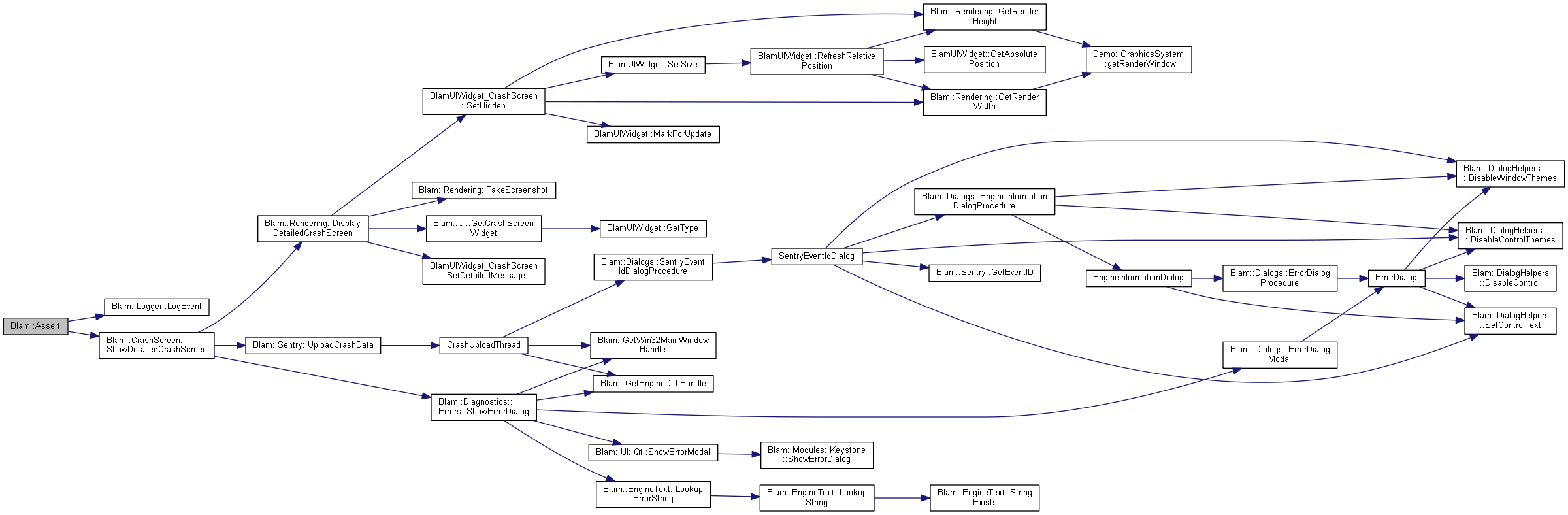

Here is the call graph for this function:

Assert() [2/2]

void Blam::Assert	(	const char *	expression,
		const char *	file,
		int	line,
		std::string	message
	)

Forces an engine assertion failure, and shows the crash screen, with additional details.

This function should NOT be called directly - use the BLAM_ASSERTM macro instead.

Parameters

exc	- The value, function, or equation that failed to return true.
file	- The .cpp file that caused the assertion.
line	- The line number of the .cpp file that caused the assertion.
message	- A message shown to the user containing any additional related information.

Here is the call graph for this function:

CleanupEngineResources()

void Blam::CleanupEngineResources

(

)

Instructs the engine to clean up any resources.

Should be called at shutdown.

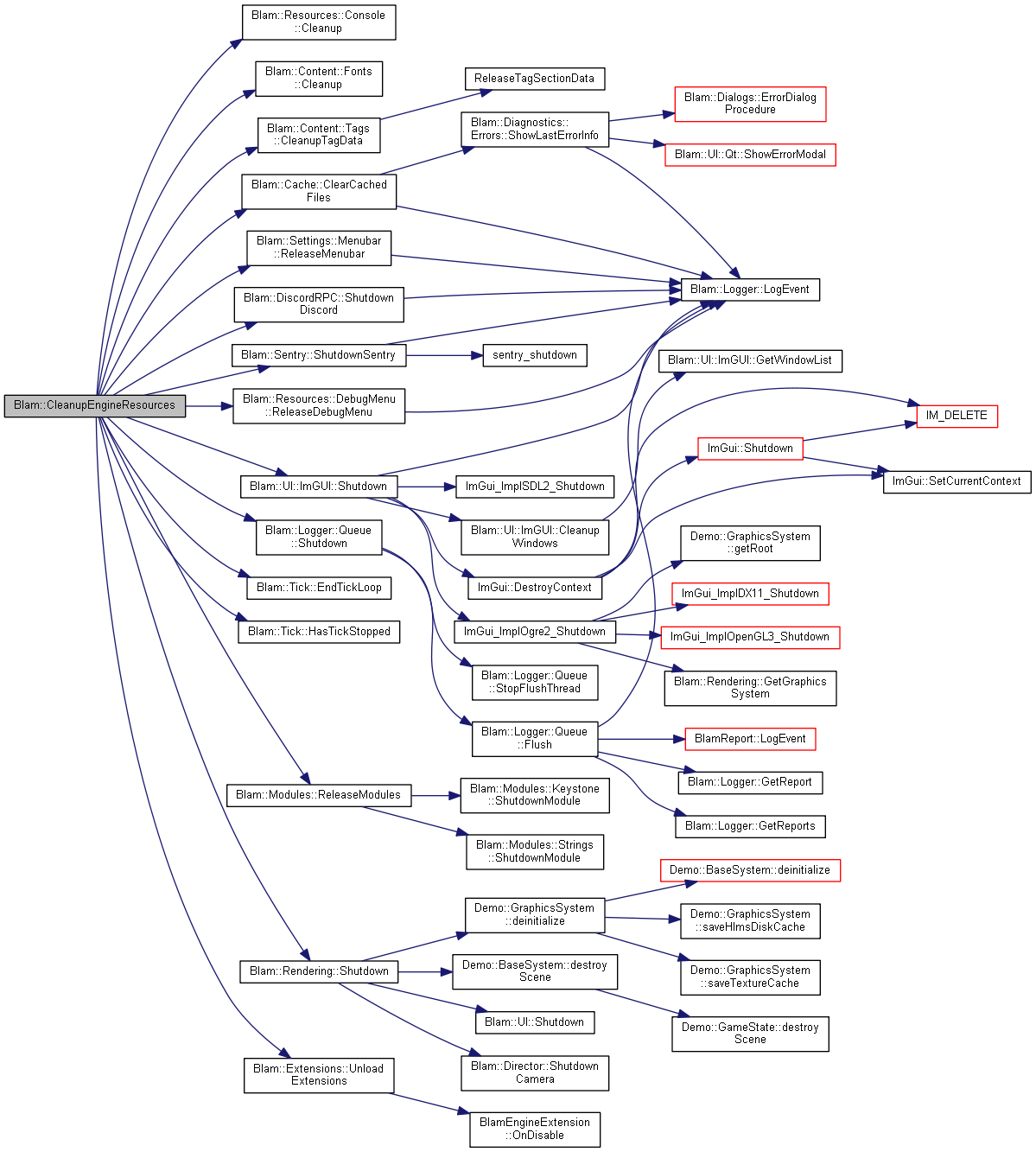

Here is the call graph for this function:

Here is the caller graph for this function:

EngineThreadInit()

int Blam::EngineThreadInit

(

)

Performs any additional engine initialization that needs to be called within the engine loop thread.

When using multiple threads for engine and main loop, this MUST be called from the same thread that MainLoop is called from.

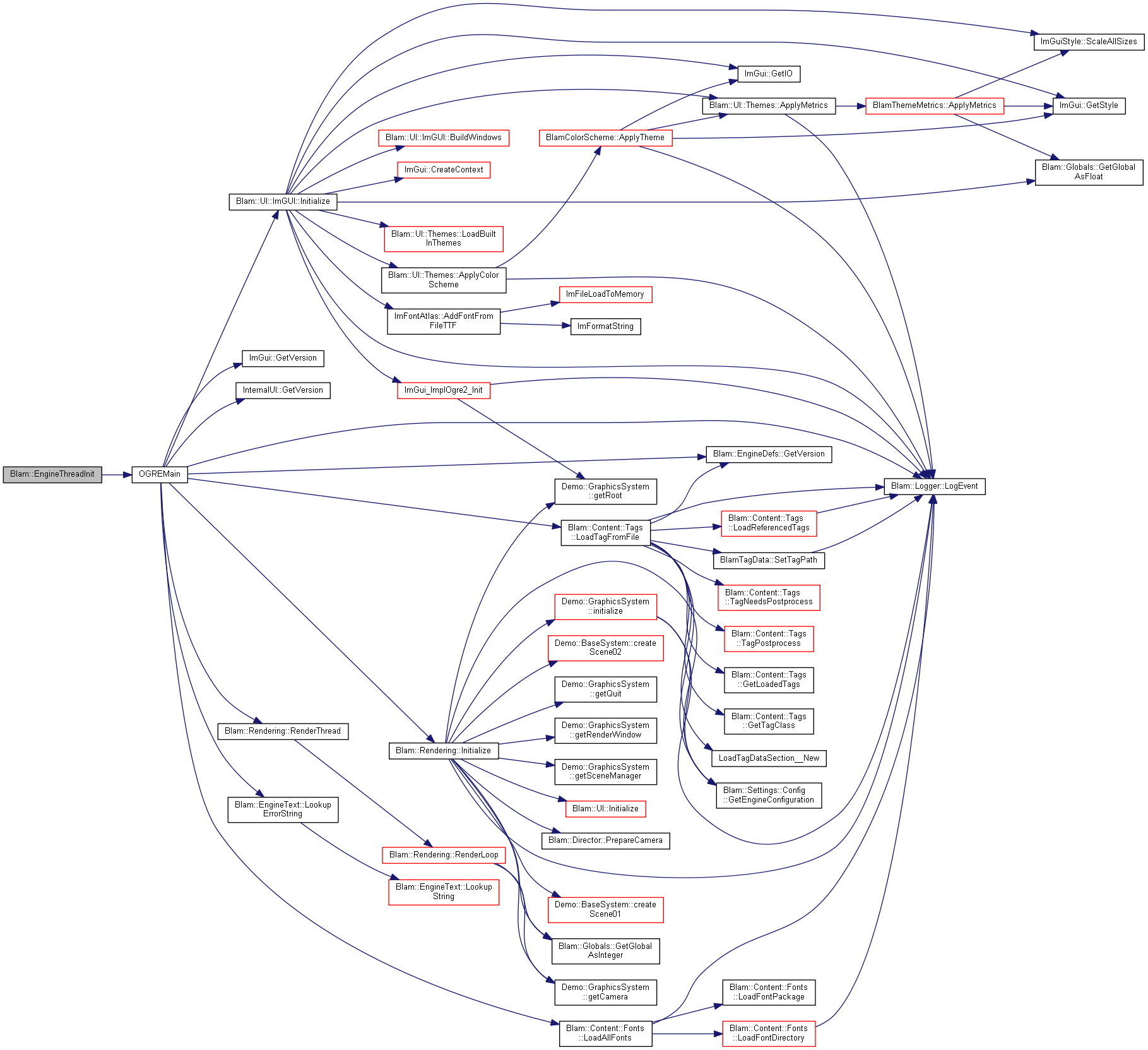

Here is the call graph for this function:

Here is the caller graph for this function:

GetContentSource()

BlamContentSource Blam::GetContentSource

(

)

Retrieves the current content source.

When running under different runtime configurations, the engine will load content from loose tag files, or from cache files. For cases where we don't need the exact runtime configuration and simply need to know how to load content, we can use this as an easier check.

Returns

The current content source.

Here is the call graph for this function:

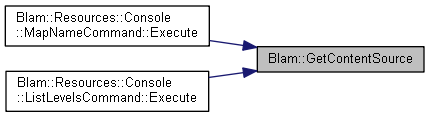

Here is the caller graph for this function:

GetCurrentRuntimeConfig()

BlamRuntimeConfiguration Blam::GetCurrentRuntimeConfig

(

)

Retrieves the current runtime configuration.

The value of this will depend on the configuration used to compile the engine. See BlamRuntimeConfiguration for details.

Returns

The current runtime configuration.

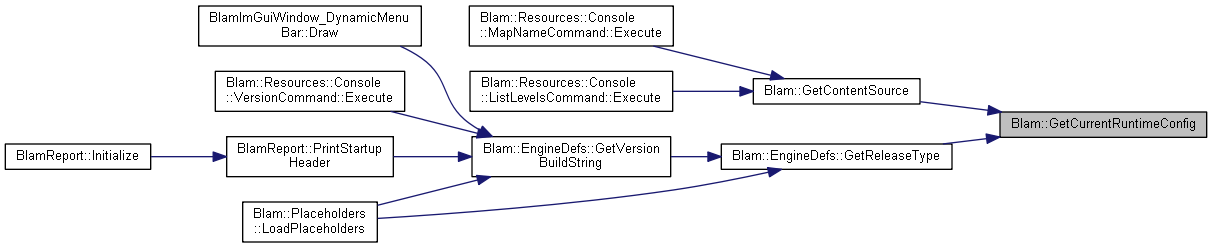

Here is the caller graph for this function:

GetEngineDLLHandle()

HMODULE Blam::GetEngineDLLHandle

(

)

Retrieves the module handle for the engine.

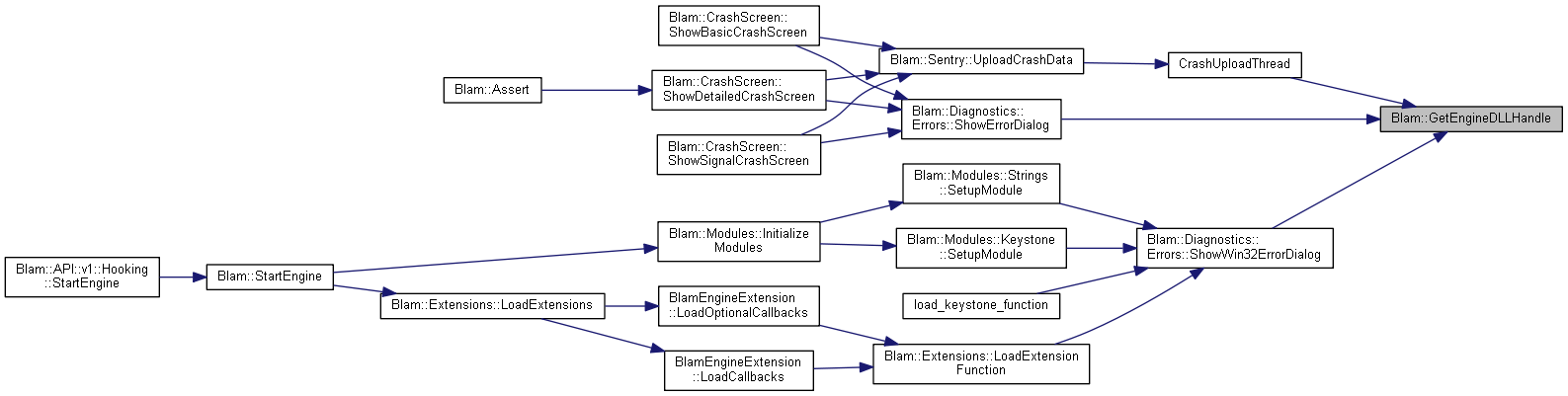

Here is the caller graph for this function:

GetMainWindowHandle()

SDL_Window * Blam::GetMainWindowHandle

(

)

Retrieves the main window handle of the application, when using SDL.

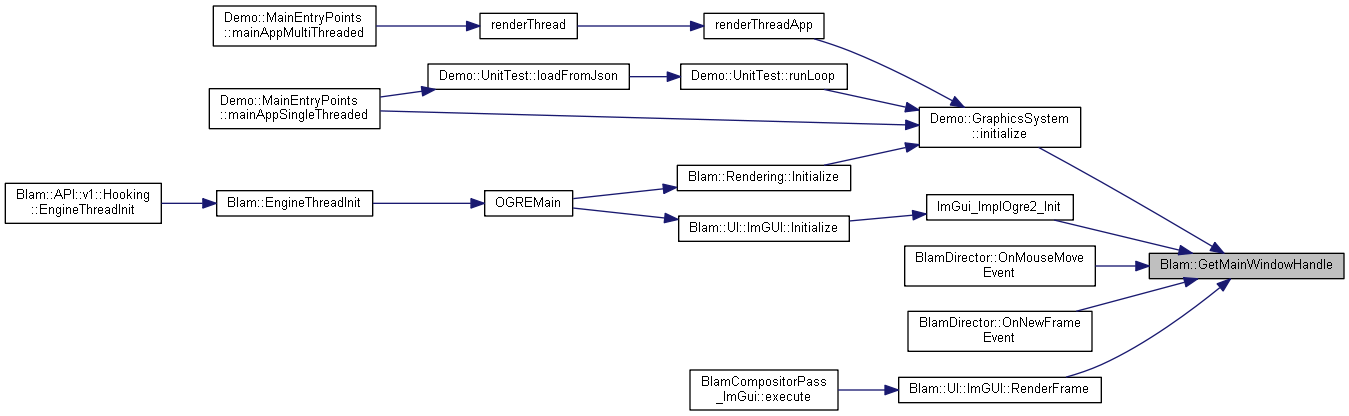

Here is the caller graph for this function:

GetWin32MainWindowHandle()

HWND Blam::GetWin32MainWindowHandle

(

)

Retrieves the main window handle of the application.

Deprecated:

This returns the native window handle that the engine is using as its primary display, and should only be used in cases where the native window handle is absolutely needed. Whenever possible, please use Blam::GetMainWindowHandle instead.

Note

Formerly named Blam::GetMainWindowHandle, was renamed as SDL is now used for window creation instead.

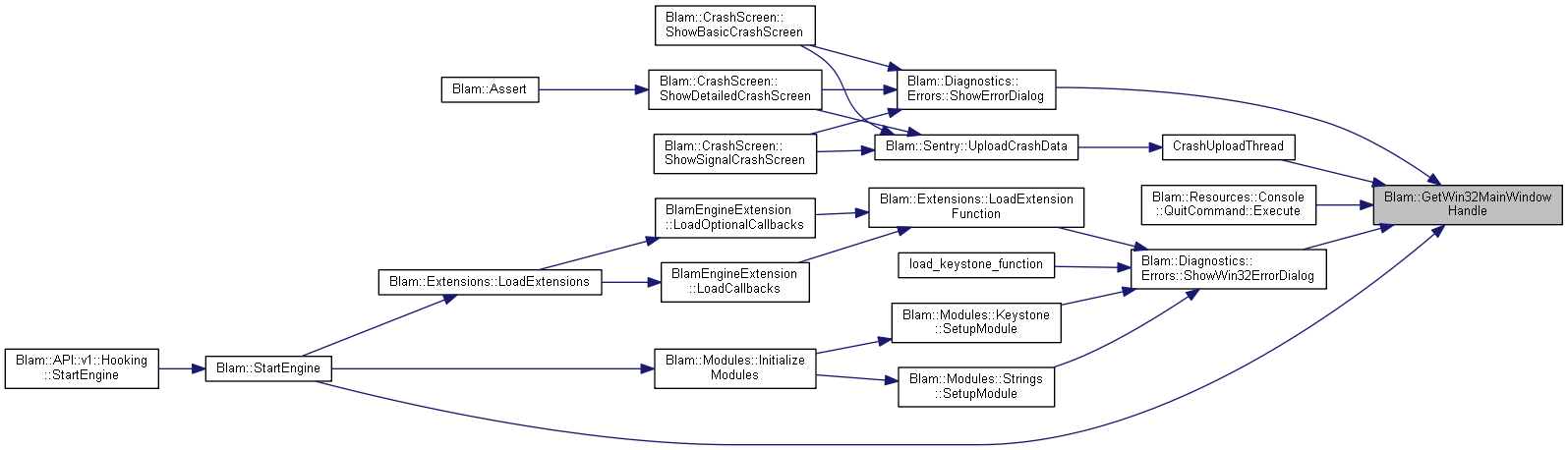

Here is the caller graph for this function:

linearAlloc()

UINT8 * Blam::linearAlloc	(	Blam::LinearAllocator *	alloc,
		UINT64	size
	)

Here is the caller graph for this function:

linearAllocCreate()

void Blam::linearAllocCreate	(	Blam::LinearAllocator *	alloc,
		UINT64	size
	)

Here is the caller graph for this function:

MainLoop()

void Blam::MainLoop

(

)

Function for the engine's main loop.

Should be called from the parent application's message loop.

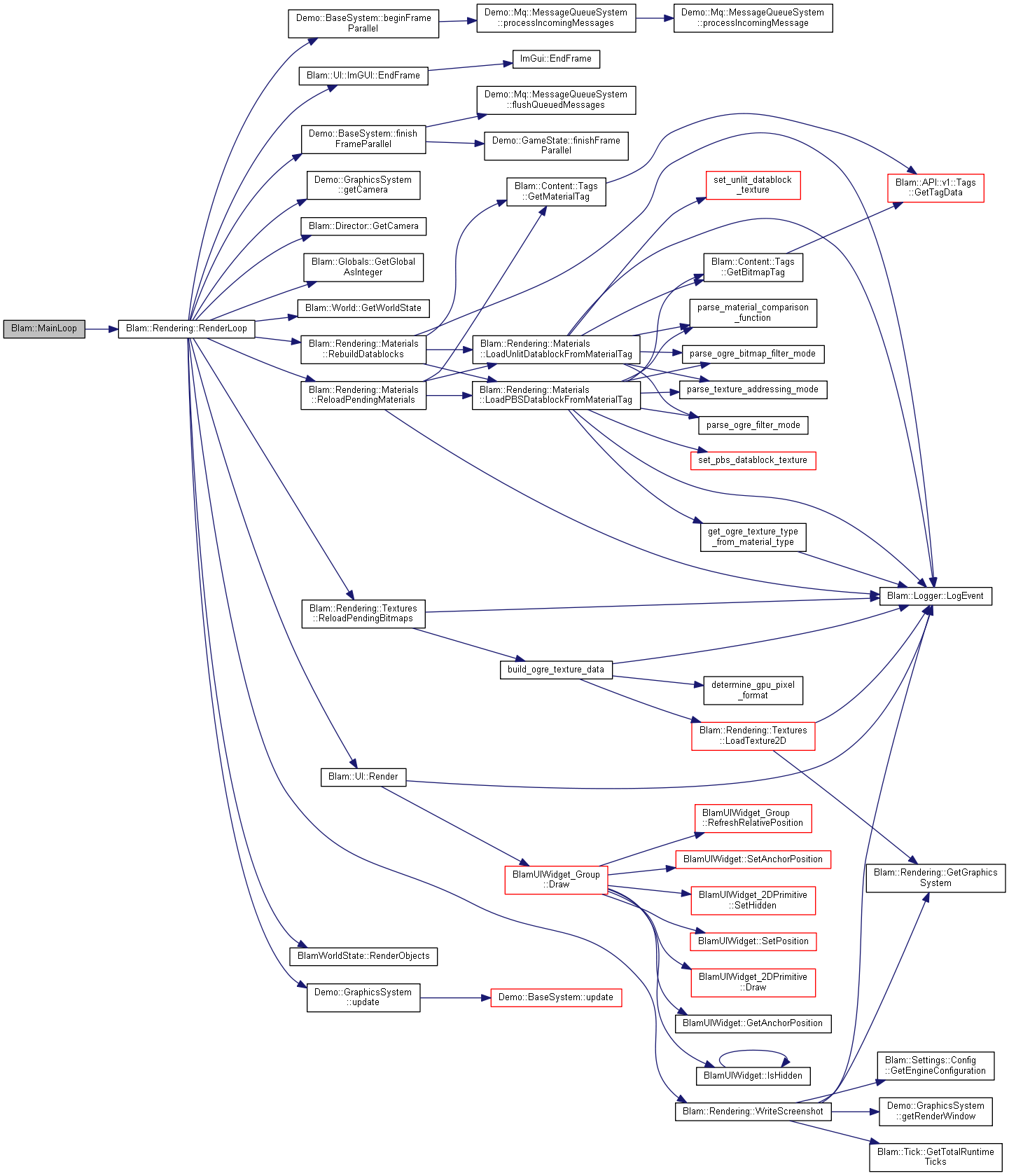

Here is the call graph for this function:

Here is the caller graph for this function:

MainWindowProcedure()

bool Blam::MainWindowProcedure

(

SDL_Event

event

)

Window procedure for the main application window.

Parameters

event

- The SDL event that was fired.

Returns

false if the window should start closing, otherwise returns true.

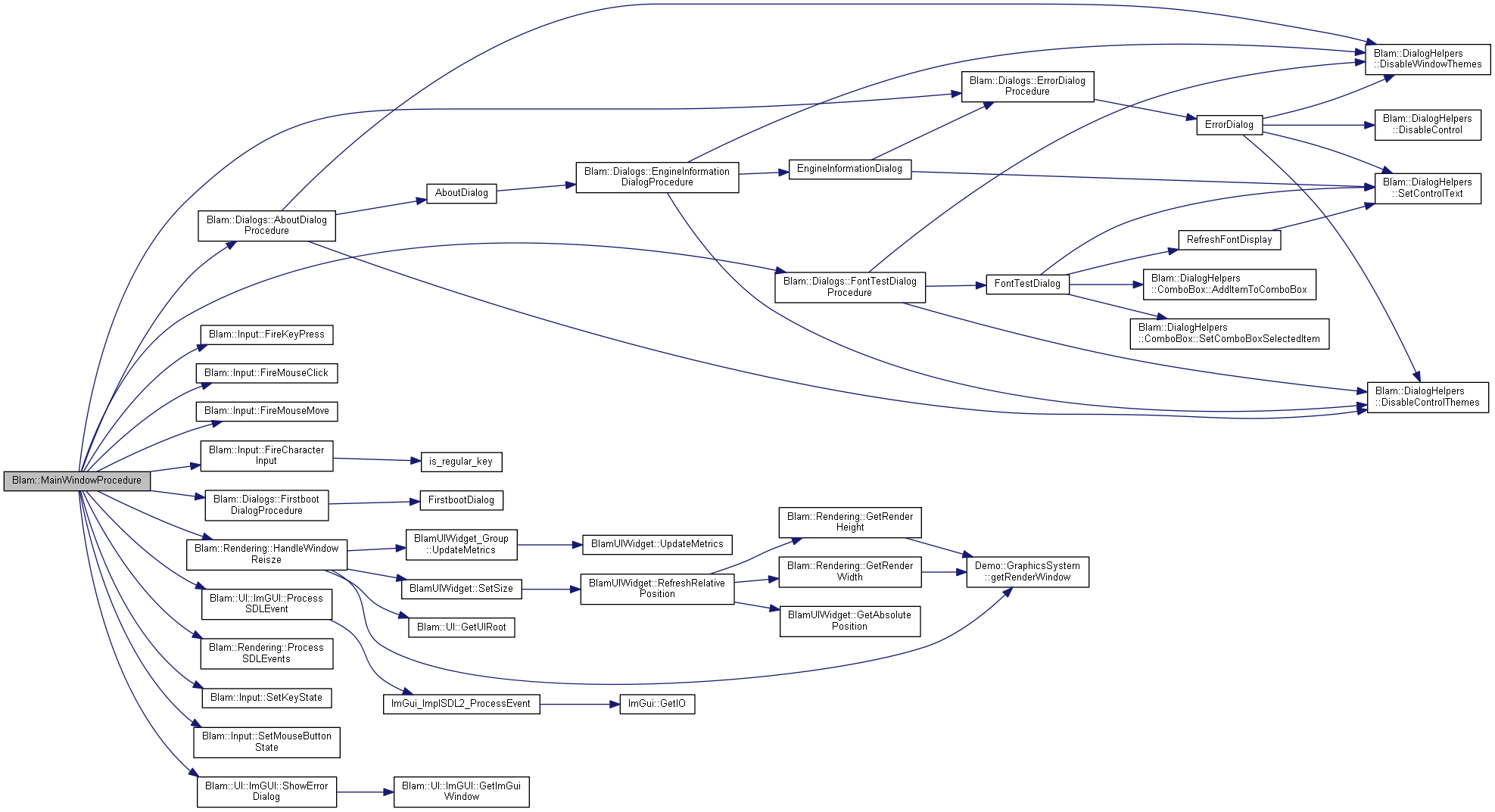

Here is the call graph for this function:

Here is the caller graph for this function:

StartEngine()

int Blam::StartEngine	(	int	args_count,
		char *	args[],
		SDL_Window *	window
	)

Entry point for the engine.

Parameters

args_count	- Number of command-line arguments passed to the application.
args	- Array of command-line arguments passed to the application.
window	- Pointer to the window handle to run the game engine within.

Todo:

Show firstboot dialog

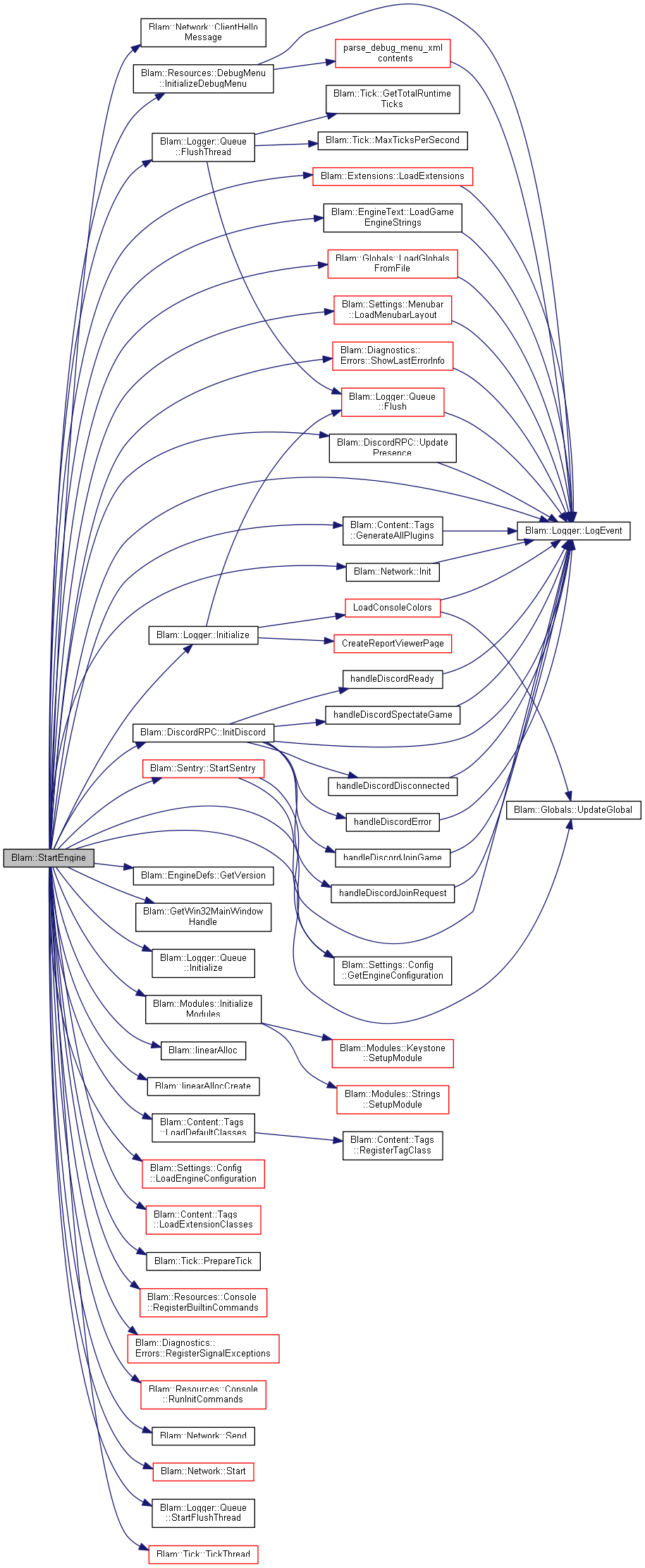

Here is the call graph for this function:

Here is the caller graph for this function:
