Interface class that all main editing tool windows inherit from. More...

#include <BlamEditorWindow.h>

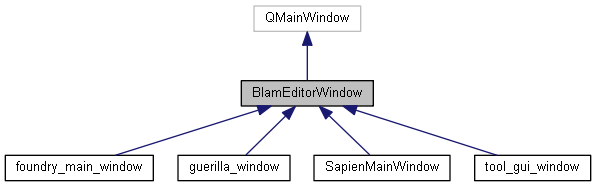

Inheritance diagram for BlamEditorWindow:

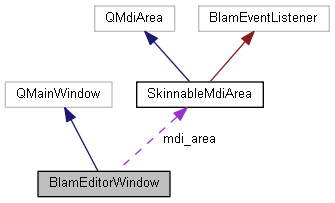

Collaboration diagram for BlamEditorWindow:

Public Member Functions
	BlamEditorWindow (BlamEditorWindowType window_type)
	Constructs a new editor window. More...

void	SetupWindow ()
	Prepares the main window layout. More...

BlamEditorWindowType	GetEditorWindowType ()
	Retrieves the type of the editor window. More...

virtual void	OnThemeChange (BlamEditorTheme *new_theme)
	Called when the active theme is changed. More...

bool	OpenDocument (std::string file_path, BlamTagTreeNode *tree_node, BlamEditorDocumentType doctype)
	Attempts to open the specified document in the main window. More...

void	OpenDocument (BlamEditorDocument *document)
	Opens a pre-prepared document and associates it with this window. More...

void	CloseDocument (int index)
	Attempts to close the specified document. More...

void	CloseDocument (BlamEditorDocument *document)
	Attempts to close the specified document. More...

void	CloseAllDocuments ()
	Closes all open documents. More...

void	SaveAllDocuments ()
	Attempts to save all open documents. More...

bool	OpenToolWindow (BlamEditorToolWindowType tool_type, Qt::DockWidgetArea position)
	Opens the specified tool window within the main window. More...

bool	OpenToolWindow (BlamEditorToolWindowType tool_type)
	Opens the specified tool window within the main window. More...

void	CloseToolWindow (BlamEditorToolWindowType tool_type)
	Closes the specified tool window. More...

void	CloseAllToolWindows ()
	Closes all tool windows. More...

void	ToggleToolWindow (BlamEditorToolWindowType tool_type)
	Toggles the specified tool window. More...

bool	IsToolWindowOpen (BlamEditorToolWindowType tool_type)
	Checks if a given tool window type is open. More...

BlamEditorToolWindow *	GetToolWindow (BlamEditorToolWindowType tool_type)
	Retrieves a specific tool window. More...

BlamEditorDocument *	GetActiveDocument ()
	Get the current active document. More...

void	UpdateDefaultIcon ()
	Updates the default icon for the window (and all child MDI subwindows). More...

std::string	GetApplicationTitle ()
	Retrieves the application title of this Editor Window. More...

Public Attributes
BlamWorkspaceLayoutType	workspace_type = BlamWorkspaceLayoutType::MDI
	The layout type the window is currently using. More...

SkinnableMdiArea *	mdi_area = nullptr
	The MDI area used for documents. Only set when using MDI layout. More...

QTabWidget *	tab_area = nullptr
	The tab widget used for documents. Only set when using Tab layout. More...

std::vector< BlamEditorToolWindow * >	open_tool_windows = std::vector<BlamEditorToolWindow*>()
	The list of open tool windows. More...

std::vector< BlamEditorDocument * >	open_documents = std::vector<BlamEditorDocument*>()
	The list of open documents. More...

BlamConfigurationFile *	config = nullptr
	The configuration file for this editor window. More...

Detailed Description

Interface class that all main editing tool windows inherit from.

Currently, the primary purpose of this class is to allow for the main editor window to be known at all times, and to allow for most functionality to work cross-tool (ie, using the Guerilla explorer bar in Foundry).

Constructor & Destructor Documentation

◆ BlamEditorWindow()

BlamEditorWindow::BlamEditorWindow ( BlamEditorWindowType window_type )

Constructs a new editor window.

Parameters

window_type - The type of window being created.

Member Function Documentation

◆ CloseAllDocuments()

void BlamEditorWindow::CloseAllDocuments ( )

Closes all open documents.

Here is the caller graph for this function:

◆ CloseAllToolWindows()

void BlamEditorWindow::CloseAllToolWindows ( )

Closes all tool windows.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CloseDocument() [1/2]

void BlamEditorWindow::CloseDocument ( BlamEditorDocument * document )

Attempts to close the specified document.

If no document was found, then no actions are performed.

Parameters

document - The document to close.

Here is the call graph for this function:

◆ CloseDocument() [2/2]

void BlamEditorWindow::CloseDocument ( int index )

Attempts to close the specified document.

If no document was found, then no actions are performed.

Parameters

index - The index of the document to close.

◆ CloseToolWindow()

void BlamEditorWindow::CloseToolWindow ( BlamEditorToolWindowType tool_type )

Closes the specified tool window.

If the specified window is not open, then no action is performed.

Parameters

tool_type - The tool window to close.

Here is the call graph for this function:

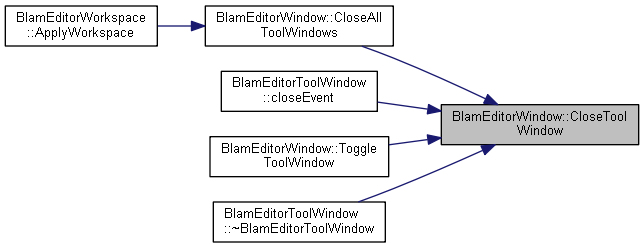

Here is the caller graph for this function:

◆ GetActiveDocument()

BlamEditorDocument * BlamEditorWindow::GetActiveDocument ( )

Get the current active document.

Here is the caller graph for this function:

◆ GetApplicationTitle()

std::string BlamEditorWindow::GetApplicationTitle ( )

Retrieves the application title of this Editor Window.

Returns: The application title of this Editor Window. This will usually be something such as Sapien, Guerilla, Tool, or Foundry. In the case of an unknown editor window type, then this will return as Blamite.

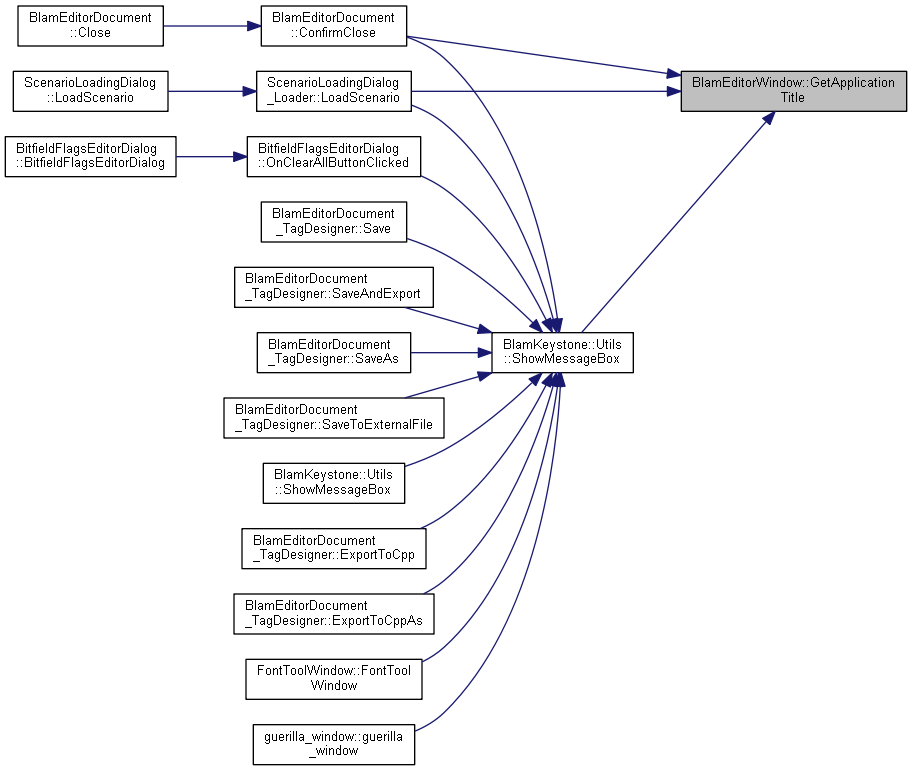

Here is the caller graph for this function:

◆ GetEditorWindowType()

BlamEditorWindowType BlamEditorWindow::GetEditorWindowType ( )

Retrieves the type of the editor window.

Returns: The editor window type.

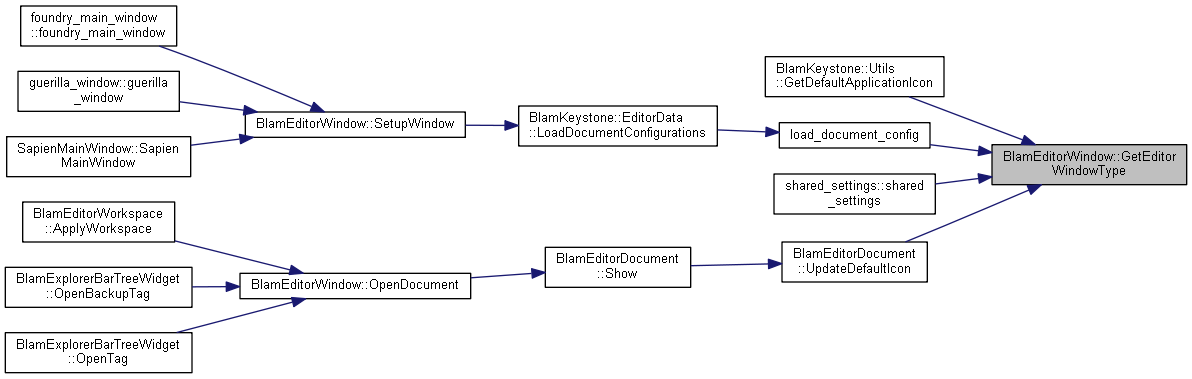

Here is the caller graph for this function:

◆ GetToolWindow()

BlamEditorToolWindow * BlamEditorWindow::GetToolWindow ( BlamEditorToolWindowType tool_type )

Retrieves a specific tool window.

Parameters

tool_type - The type of the desired tool window.

Returns: Pointer to the tool window if it is currently open. If it is not open, then this will return nullptr.

Here is the caller graph for this function:

◆ IsToolWindowOpen()

bool BlamEditorWindow::IsToolWindowOpen ( BlamEditorToolWindowType tool_type )

Checks if a given tool window type is open.

Parameters

tool_type - The type of window to check the open state of.

Returns: true if the specified tool window is open, otherwise returns false.

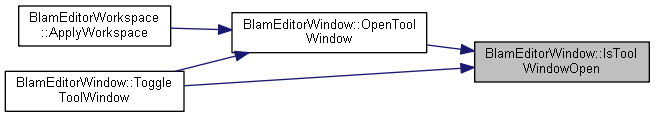

Here is the caller graph for this function:

◆ OnThemeChange()

void BlamEditorWindow::OnThemeChange ( BlamEditorTheme * new_theme )

virtual

Called when the active theme is changed.

Parameters

new_theme - The newly applied theme.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OpenDocument() [1/2]

void BlamEditorWindow::OpenDocument ( BlamEditorDocument * document )

Opens a pre-prepared document and associates it with this window.

Parameters

document - The document to open.

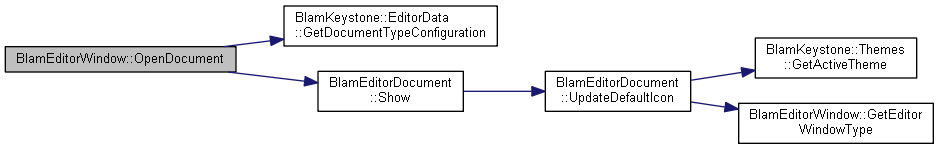

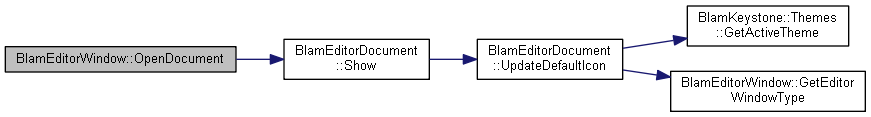

Here is the call graph for this function:

◆ OpenDocument() [2/2]

bool BlamEditorWindow::OpenDocument	(	std::string	file_path,
		BlamTagTreeNode *	tree_node,
		BlamEditorDocumentType	doctype
	)

Attempts to open the specified document in the main window.

Parameters

file_path	- Path to the document file.
doctype	- The type of document that the file should be treated as.

Here is the call graph for this function:

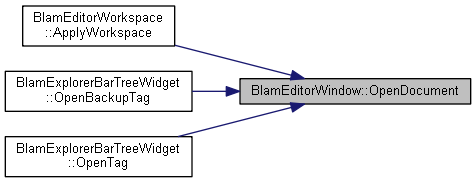

Here is the caller graph for this function:

◆ OpenToolWindow() [1/2]

bool BlamEditorWindow::OpenToolWindow ( BlamEditorToolWindowType tool_type )

Opens the specified tool window within the main window.

Parameters

tool_type - The type of tool window to show.

Returns: true if the window was shown successfully. If the specified tool window type is not supported for this window's BlamEditorWindowType, then this will return false and the window will not be shown.

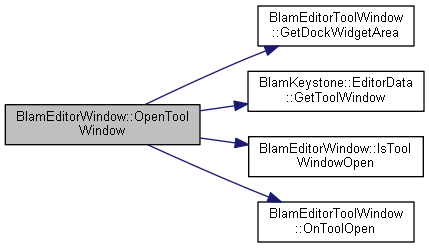

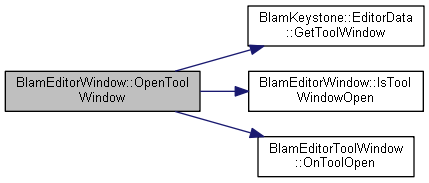

Here is the call graph for this function:

◆ OpenToolWindow() [2/2]

bool BlamEditorWindow::OpenToolWindow	(	BlamEditorToolWindowType	tool_type,
		Qt::DockWidgetArea	position
	)

Opens the specified tool window within the main window.

Parameters

tool_type	- The type of tool window to show.
position	- The dock position to place the window at.

Returns: true if the window was shown successfully. If the specified tool window type is not supported for this window's BlamEditorWindowType, then this will return false and the window will not be shown.

Here is the call graph for this function:

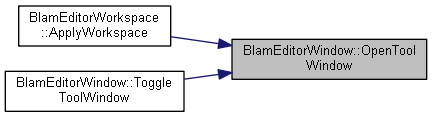

Here is the caller graph for this function:

◆ SaveAllDocuments()

void BlamEditorWindow::SaveAllDocuments ( )

Attempts to save all open documents.

◆ SetupWindow()

void BlamEditorWindow::SetupWindow ( )

Prepares the main window layout.

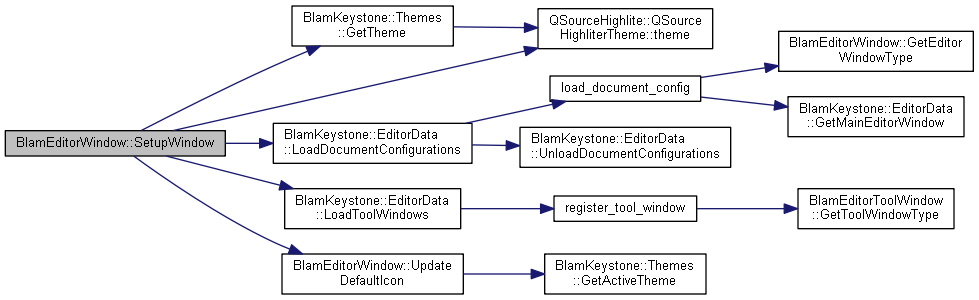

Here is the call graph for this function:

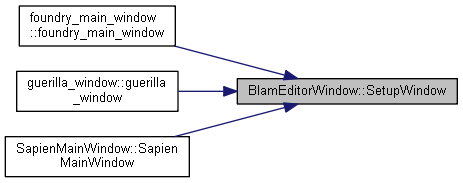

Here is the caller graph for this function:

◆ ToggleToolWindow()

void BlamEditorWindow::ToggleToolWindow ( BlamEditorToolWindowType tool_type )

Toggles the specified tool window.

If the specified window is open, it will be closed. If the specified window does not exist, it will be opened (only if the tool window is supported within the given tool).

Parameters

tool_type - The tool window to toggle.

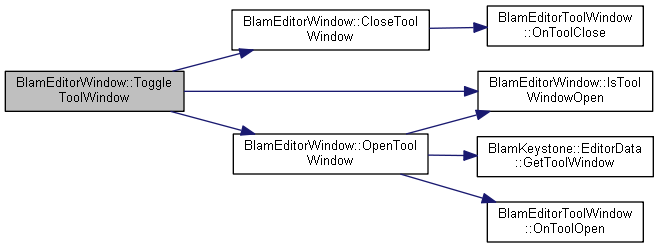

Here is the call graph for this function:

◆ UpdateDefaultIcon()

void BlamEditorWindow::UpdateDefaultIcon ( )

Updates the default icon for the window (and all child MDI subwindows).

This will update the icon of the application and its child windows from the current active theme. This may be desired in the case of a theme changing the default application icon.

Here is the call graph for this function:

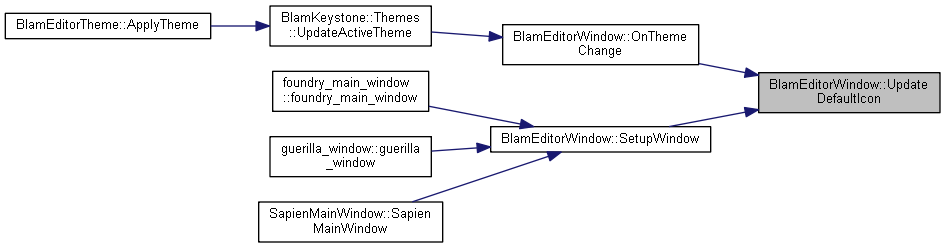

Here is the caller graph for this function:

Member Data Documentation

◆ config

BlamConfigurationFile* BlamEditorWindow::config = nullptr

The configuration file for this editor window.

◆ mdi_area

SkinnableMdiArea* BlamEditorWindow::mdi_area = nullptr

The MDI area used for documents. Only set when using MDI layout.

◆ open_documents

std::vector<BlamEditorDocument*> BlamEditorWindow::open_documents = std::vector<BlamEditorDocument*>()

The list of open documents.

◆ open_tool_windows

std::vector<BlamEditorToolWindow*> BlamEditorWindow::open_tool_windows = std::vector<BlamEditorToolWindow*>()

The list of open tool windows.

◆ tab_area

QTabWidget* BlamEditorWindow::tab_area = nullptr

The tab widget used for documents. Only set when using Tab layout.

◆ workspace_type

BlamWorkspaceLayoutType BlamEditorWindow::workspace_type = BlamWorkspaceLayoutType::MDI

The layout type the window is currently using.

The documentation for this class was generated from the following files:

keystone/components/editor_data/editor_window/BlamEditorWindow.h
keystone/components/editor_data/editor_window/BlamEditorWindow.cpp
