BlamWorldObject_Primitive Class Reference

Class representing a primitive-based world object. More...

#include <world_objects.h>

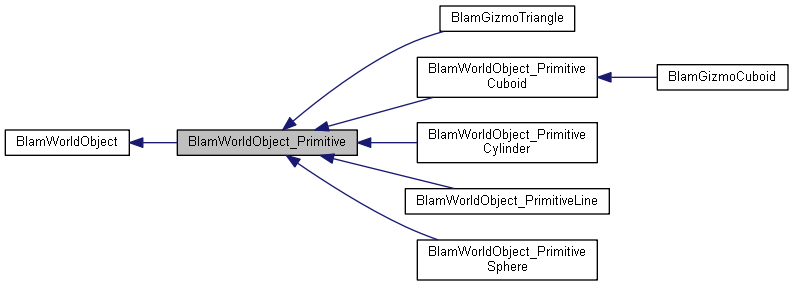

Inheritance diagram for BlamWorldObject_Primitive:

Collaboration diagram for BlamWorldObject_Primitive:

Public Member Functions
	BlamWorldObject_Primitive (BlamWorldObjectType _type, BlamWorldState *_world)
	Creates a new primitive world object. More...
	BlamWorldObject_Primitive (BlamWorldObjectType _type, BlamWorldObject *_parent)
	~BlamWorldObject_Primitive ()
void	Render () override
	Renders the object to the screen. More...
void	SetCustomDatabablock (Ogre::HlmsDatablock *datablock, bool wireframe)
void	ShowImGuiEditControls () override
void	MarkForRebuild ()
void	SetDepthCheckEnabled (bool enable)
void	SetQueryMask (uint32_t mask)
Public Member Functions inherited from BlamWorldObject
	BlamWorldObject (BlamWorldState *_world, BlamWorldObjectType _type)
	Creates a new world object. More...
	BlamWorldObject (BlamWorldObject *_parent, BlamWorldObjectType _type)
virtual	~BlamWorldObject ()
uint64_t	GetID ()
Ogre::SceneNode *	GetParentSceneNode ()
BlamVector3	GetRotation ()
void	SetRotation (BlamVector3 _rotation, bool local_axes=false)
void	SetRotation (float x, float y, float z, bool local_axes=false)
void	SetRotation (BlamAxis axis, float amount, bool local_axes=false)
BlamVector3	GetPosition ()
void	SetPosition (BlamVector3 position)
void	SetPosition (float x, float y, float z)
BlamVector3	GetScale ()
void	SetScale (BlamVector3 scale)
void	SetScale (float x, float y, float z)
BlamVector3	GetScaleModifier ()
void	SetScaleModifier (BlamVector3 scale)
void	SetScaleModifier (float x, float y, float z)
bool	GetHidden ()
void	SetHidden (bool hidden)
std::string	GetName ()
void	SetName (std::string name)
virtual void	OnMouseHoverEnter ()
virtual void	OnMouseHoverExit ()
virtual void	OnMouseMove (MouseMoveEvent *event)
virtual void	OnMouseClick (MouseClickEvent *event)
virtual void	OnMouseUnclick (MouseUnclickEvent *event)

Public Attributes
Ogre::ManualObject *	manual_object = nullptr
Ogre::HlmsDatablock *	datablock = nullptr
Ogre::HlmsDatablock *	datablock_wireframe = nullptr
BlamColor	color = BlamColor(255, 255, 255)
BlamColor	color_wireframe = BlamColor(255, 255, 255)
Blam3DPrimitiveRenderMode	render_mode = Blam3DPrimitiveRenderMode::Solid
bool	show_backfaces = false
bool	cast_shadows = true
Public Attributes inherited from BlamWorldObject
uint64_t	id = 0
	A unique identifier for this object. Used to identify objects during runtime. More...
std::string	description = ""
	An optional description of this object. More...
int	editor_folder_id = 0
	The editor folder that this object exists within. Only used within the editing kit. More...
BlamWorldState *	world = nullptr
	The world state this object belongs to. More...
BlamWorldObject *	parent = nullptr
BlamWorldObjectType	type = BlamWorldObjectType::Unspecified
	The type of this world object. More...
Ogre::SceneNode *	scene_node = nullptr

Protected Member Functions
virtual void	CreateManualObject ()

Protected Attributes
bool	custom_datablock = false
bool	custom_wireframe_datablock = false

Detailed Description

Class representing a primitive-based world object.

Primitive world objects are simple world objects that render a generic 3D shape. These are currently planned to only be used for early testing and debugging, and will be eventually be replaced with tags once the proper tag classes are implemented.

For all possible primitive types, see #Blam3DPrimitiveType.

Constructor & Destructor Documentation

BlamWorldObject_Primitive() [1/2]

BlamWorldObject_Primitive::BlamWorldObject_Primitive	(	BlamWorldObjectType	_type,
		BlamWorldState *	_world
	)

Creates a new primitive world object.

Parameters

_tag_data	- The tag data that this object should represent.
_world	- The world state this object should belong to.

BlamWorldObject_Primitive() [2/2]

BlamWorldObject_Primitive::BlamWorldObject_Primitive	(	BlamWorldObjectType	_type,
		BlamWorldObject *	_parent
	)

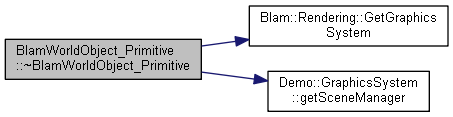

~BlamWorldObject_Primitive()

BlamWorldObject_Primitive::~BlamWorldObject_Primitive

(

)

Here is the call graph for this function:

Member Function Documentation

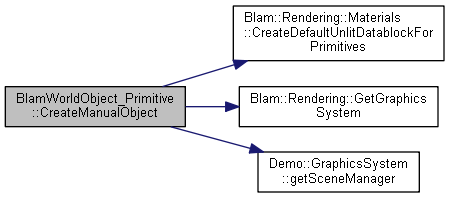

CreateManualObject()

void BlamWorldObject_Primitive::CreateManualObject ( )

protectedvirtual

Reimplemented in BlamGizmoTriangle.

Here is the call graph for this function:

Here is the caller graph for this function:

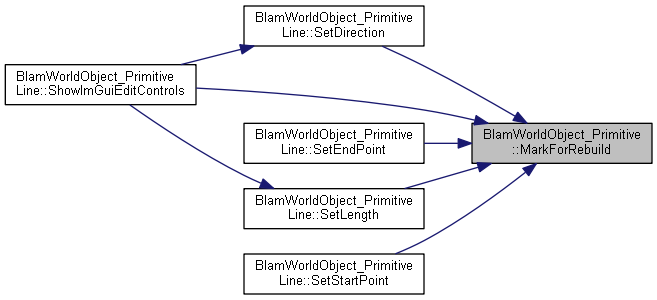

MarkForRebuild()

void BlamWorldObject_Primitive::MarkForRebuild

(

)

Here is the caller graph for this function:

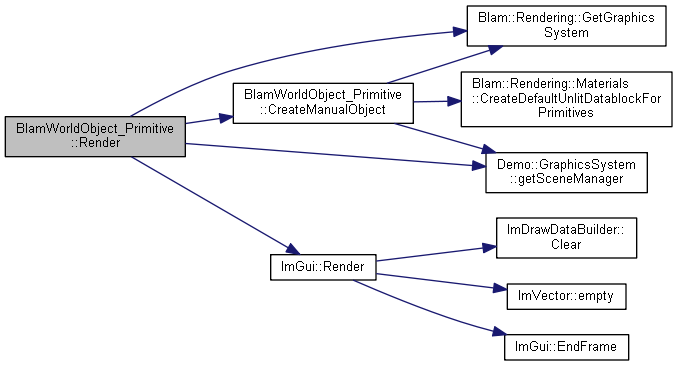

Render()

void BlamWorldObject_Primitive::Render ( )

overridevirtual

Renders the object to the screen.

Reimplemented from BlamWorldObject.

Reimplemented in BlamWorldObject_PrimitiveLine, BlamWorldObject_PrimitiveCylinder, and BlamWorldObject_PrimitiveSphere.

Here is the call graph for this function:

Here is the caller graph for this function:

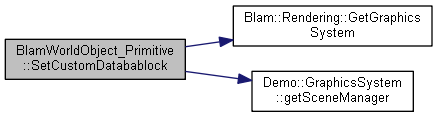

SetCustomDatabablock()

void BlamWorldObject_Primitive::SetCustomDatabablock	(	Ogre::HlmsDatablock *	datablock,
		bool	wireframe
	)

Here is the call graph for this function:

SetDepthCheckEnabled()

void BlamWorldObject_Primitive::SetDepthCheckEnabled

(

bool

enable

)

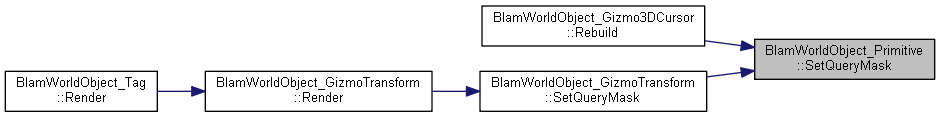

SetQueryMask()

void BlamWorldObject_Primitive::SetQueryMask

(

uint32_t

mask

)

Here is the caller graph for this function:

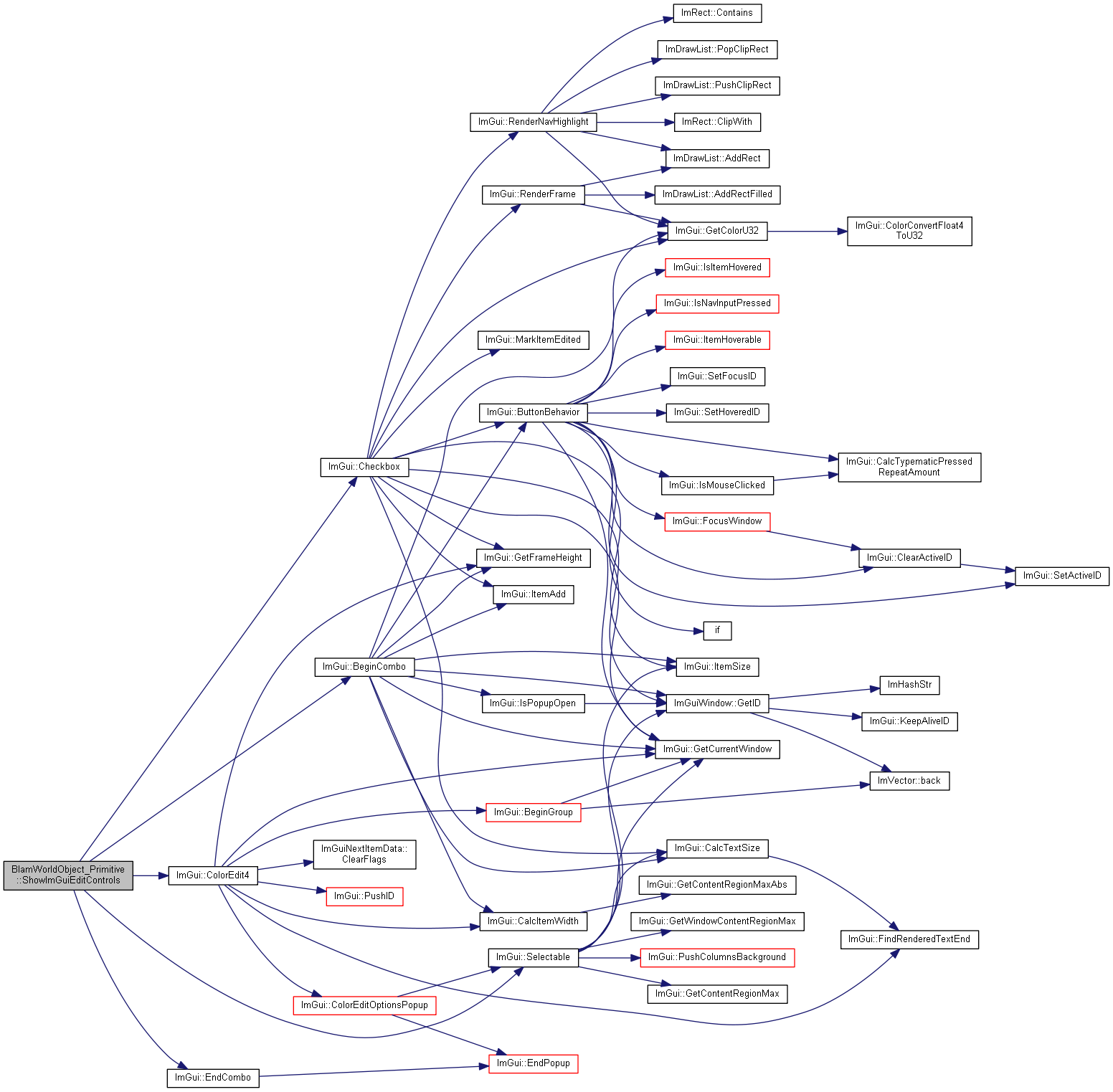

ShowImGuiEditControls()

void BlamWorldObject_Primitive::ShowImGuiEditControls ( )

overridevirtual

Reimplemented from BlamWorldObject.

Reimplemented in BlamWorldObject_PrimitiveLine, BlamWorldObject_PrimitiveCylinder, and BlamWorldObject_PrimitiveSphere.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

cast_shadows

bool BlamWorldObject_Primitive::cast_shadows = true

color

BlamColor BlamWorldObject_Primitive::color = BlamColor(255, 255, 255)

color_wireframe

BlamColor BlamWorldObject_Primitive::color_wireframe = BlamColor(255, 255, 255)

custom_datablock

bool BlamWorldObject_Primitive::custom_datablock = false

protected

custom_wireframe_datablock

bool BlamWorldObject_Primitive::custom_wireframe_datablock = false

protected

datablock

Ogre::HlmsDatablock* BlamWorldObject_Primitive::datablock = nullptr

datablock_wireframe

Ogre::HlmsDatablock* BlamWorldObject_Primitive::datablock_wireframe = nullptr

manual_object

Ogre::ManualObject* BlamWorldObject_Primitive::manual_object = nullptr

render_mode

Blam3DPrimitiveRenderMode BlamWorldObject_Primitive::render_mode = Blam3DPrimitiveRenderMode::Solid

show_backfaces

bool BlamWorldObject_Primitive::show_backfaces = false

---

The documentation for this class was generated from the following files:

• blam/api/v1/types/world_objects.h
• blam/api/v1/types/world/BlamWorldObject_Primitive.cpp
