engine_definitions.h File Reference

#include <string>

Include dependency graph for engine_definitions.h:

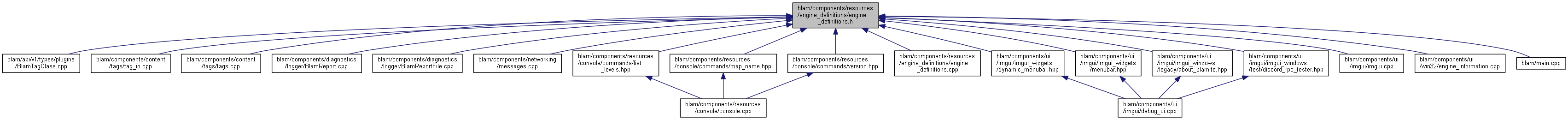

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	Blam
	Namespace surrounding all major engine components.
	Blam::BuildInfo
	Namespace containing functions which provide engine build information.

Macros
#define	REL_TYPE   "debug"
#define	DEV_MODE   true
#define	BLAM
#define	UI_API

Enumerations
enum	BlamRuntimeConfiguration {   BlamRuntimeConfiguration::CacheRelease, BlamRuntimeConfiguration::CacheDebug, BlamRuntimeConfiguration::TagDebug, BlamRuntimeConfiguration::CacheTest,   BlamRuntimeConfiguration::TagTest, BlamRuntimeConfiguration::Unspecified }
	Enumerator listing possible engine runtime configurations. More...
enum	BlamContentSource { BlamContentSource::Tags, BlamContentSource::Cache }
	Enumerator listing possible content sources. More...
enum	BlamBuildType { BlamBuildType::Debug, BlamBuildType::Test, BlamBuildType::Release }
	Enumerator listing possible build types. More...
enum	BlamVersionStringDisplayMode { BlamVersionStringDisplayMode::Default, BlamVersionStringDisplayMode::Console, BlamVersionStringDisplayMode::TextLog, BlamVersionStringDisplayMode::CrashScreen }
	Enumerator listing possible display modes for the Blamite build string. More...

Functions
BLAM BlamRuntimeConfiguration	Blam::BuildInfo::GetCurrentRuntimeConfig ()
	Retrieves the current runtime configuration. More...
BLAM BlamContentSource	Blam::BuildInfo::GetContentSource ()
	Retrieves the current content source. More...
BLAM BlamBuildType	Blam::BuildInfo::GetBuildType ()
	Retrieves the current build type. More...
BLAM std::string	Blam::BuildInfo::GetVersionBuildString (BlamVersionStringDisplayMode display_mode)
	Retrieves the build string of the engine. More...
BLAM std::string	Blam::BuildInfo::GetBuildDateTime ()
	Retrieves the build date and time of the engine, pulled directly from the __DATE__ and __TIME__ macros. More...
BLAM std::string	Blam::BuildInfo::GetReleaseType ()
	Retrieves the release type of the engine. More...

Macro Definition Documentation

BLAM

#define BLAM

DEV_MODE

#define DEV_MODE   true

REL_TYPE

#define REL_TYPE   "debug"

UI_API

#define UI_API

Enumeration Type Documentation

BlamBuildType

enum BlamBuildType

strong

Enumerator listing possible build types.

Determined by BlamRuntimeConfiguration.

Enumerator
Debug	The engine is built as a debug build. Debug builds are compiled as debug, with release optimizations disabled, and will include all built-in debugging tools.
Test	The engine is built as a test build. Test builds behave closer to Debug builds, but are compiled using Release optimizations while leaving debug features enabled.
Release	The engine is built as a release build. Release builds are compiled as release, and by default, do not include any debugging tools. If the developer chooses, these tools can still be included and enabled using command-line arguments or game scripts.

BlamContentSource

enum BlamContentSource

strong

Enumerator listing possible content sources.

Determined by BlamRuntimeConfiguration.

Enumerator
Tags	The engine will load all content from tags.
Cache	The engine will load all content from cache files.

BlamRuntimeConfiguration

enum BlamRuntimeConfiguration

strong

Enumerator listing possible engine runtime configurations.

This value is effectively set at compile-time, and is used to enable/disable certain features.

Enumerator
CacheRelease	Indicates the engine was built with the 'Cache Release' configuration. This configuration should have no debug or development tools enabled by default. The console and debug menu can be enabled using command-line switches, however most debugging functions are disabled.
CacheDebug	Indicates the engine was built with the 'Cache Debug' configuration. In this configuration, the engine is compiled with all in-engine debug tools enabled. The engine will not acknowledge loose tag files, but will instead operate using Cache files, like Release.
TagDebug	Indicates the engine was built with the 'Tag Debug' configuration. In this configuration, the engine is compiled with all engine debug tools enabled. The engine will operate using loose tag files, and will not attempt to read cache files.
CacheTest	Indicates the engine was built with the 'Cache Test' configuration. In this configuration, the engine is built for release - but includes all in-engine debug tools. The engine will load content from cache files. This build is generally used for testing release-ready content.
TagTest	Indicates the engine was built with the 'Tag Test' configuration. In this configuration, the engine is built for release - but includes all in-engine debug tools. The engine will load content from loose tag files. This build is intended for creating content using the Editing Kit, but not for any development with the game engine itself.
Unspecified	A fallback configuration that is returned in the event that no configuration is properly set. If this happens, then an error occurred during compilation or the build configuration is incorrect.

BlamVersionStringDisplayMode

enum BlamVersionStringDisplayMode

strong

Enumerator listing possible display modes for the Blamite build string.

In the Halo engine, the build version displays slightly differently depending on where it's being displayed. This enum is used to replicate that display style where appropriate.

In any other contexts besides the specific cases listed here (or ones that appear elsewhere in the Halo engine), you should just use Default.

Enumerator
Default	Indicates the build string should use the default format.
Console	Indicates the build string should be formatted for the in-game console.
TextLog	Indicates the build string should be formatted for plain text log files.
CrashScreen	Indicates the build string should be formatted for the crash screen.
