rendering.h File Reference

#include <stdint.h>
#include <sdl2/SDL.h>
#include <sdl2/SDL_events.h>
#include <OGRE/Hlms/Pbs/OgreHlmsPbsDatablock.h>
#include <OGRE/Hlms/Unlit/OgreHlmsUnlitDatablock.h>
#include <Strings/components/classes/map/map.h>
#include <string>
#include <vector>
#include "components/3rdparty/imgui/imgui.h"
#include "components/3rdparty/ogre2/GraphicsSystem.h"
#include "components/diagnostics/errors/errors.h"
#include "api/v1/types/tags.h"
#include "api/v1/types/world_objects.h"

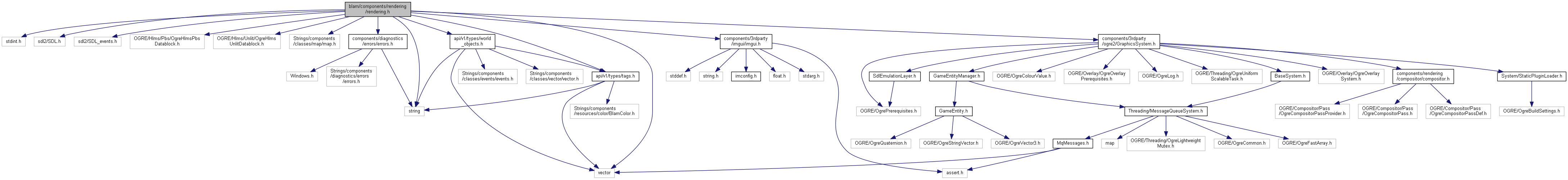

Include dependency graph for rendering.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ogre_material_instance_data
	Data structure used to store OGRE material instance data. More...
class	ogre_material_info_data
	Class used to store OGRE material information. More...
class	BlamRaycast

Namespaces
	Blam
	Namespace surrounding all major engine components.
	Blam::Rendering
	Namespace for things relating to rendering.
	Blam::Rendering::Materials
	Namespace containing functions for interacting with materials.
	Blam::Rendering::Textures
	Namespace containing functions for interacting with textures.
	Blam::Rendering::Models
	Blam::Rendering::Lights
	Blam::Rendering::Utils
	Miscellaneous utility functions for use with OGRE.

Macros
#define	BLAM
#define	GUI_RENDER_QUEUE_GROUP_ID   200
	The ID of the render queue group used for 2D rendering. More...
#define	BLAM_OGRE_RESOURCE_GROUP   Ogre::ResourceGroupManager::DEFAULT_RESOURCE_GROUP_NAME
	The name of the OGRE resource group used for engine resources. More...

Functions
BLAM bool	Blam::Rendering::Initialize ()
	Initializes the OGRE rendering library. More...
BLAM void	Blam::Rendering::RenderLoop ()
	Function to handle the render loop. More...
BLAM void	Blam::Rendering::RenderThread ()
	Function used to handle the render thread. More...
BLAM void	Blam::Rendering::PauseRenderThread ()
	Pauses the render thread. More...
BLAM void	Blam::Rendering::ResumeRenderThread ()
	Resumes the render thread. More...
BLAM void	Blam::Rendering::Shutdown ()
	Shuts down OGRE and cleans up any memory used by it. More...
BLAM void	Blam::Rendering::ProcessSDLEvents (SDL_Event *event)
	Function used to allow OGRE to handle SDL events. More...
BLAM Demo::GraphicsSystem *	Blam::Rendering::GetGraphicsSystem ()
	Retrieves the graphics system used by OGRE. More...
BLAM void	Blam::Rendering::HandleWindowReisze (int width, int height)
	Instructs OGRE to handle a window resize. More...
BLAM int	Blam::Rendering::GetRenderWidth ()
	Retrieves the current width of the OGRE viewport. More...
BLAM int	Blam::Rendering::GetRenderHeight ()
	Retrieves the current height of the OGRE viewport. More...
BLAM Ogre::Window *	Blam::Rendering::GetRenderWindow ()
	Retrieves the primary OGRE rendering window. More...
BLAM double	Blam::Rendering::GetDeltaTime ()
	Retrieves delta time that has passed since the previous frame was completed. More...
BLAM void	Blam::Rendering::TakeScreenshot ()
	Instructs OGRE to save a screenshot on the next frame. More...
BLAM void	Blam::Rendering::WriteScreenshot ()
	Saves a screenshot of the current frame to a file. More...
BLAM Ogre::SceneManager *	Blam::Rendering::Get2DSceneManager ()
	Retrieves the scene manager used to handle 2D rendering. More...
BLAM Ogre::Camera *	Blam::Rendering::Get2DCamera ()
	Retrieves the camera used to handle 2D rendering. More...
BLAM void	Blam::Rendering::DisplayBasicCrashScreen (std::string additional_info="")
	Displays a basic crash screen, with an optional message. More...
BLAM void	Blam::Rendering::DisplayDetailedCrashScreen (std::string expression, std::string file, int line, std::string message)
	Displays a detailed crash screen. More...
BLAM bool	Blam::Rendering::GetImGuiHiddenState ()
	Checks whether ImGUI is currently hidden or not. More...
BLAM BlamVector3	Blam::Rendering::GetMousePosition3D ()
BLAM BlamVector2	Blam::Rendering::GetScreenPointFrom3DPoint (BlamVector3 point)
BLAM BlamVector3	Blam::Rendering::GetGizmoMousePosition3D ()
BLAM std::vector< BlamWorldObject * >	Blam::Rendering::RaycastScreen (int screen_x, int screen_y, bool sort_by_distance=true, uint16_t max_results=0U, BlamQueryFlags query_flags=BlamQueryFlags::QF_EXCLUDE_GIZMOS)
BLAM std::vector< BlamWorldObject * >	Blam::Rendering::RaycastScreenNormalized (float screen_normalized_x, float screen_normalized_y, bool sort_by_distance=true, uint16_t max_results=0U, BlamQueryFlags query_flags=BlamQueryFlags::QF_EXCLUDE_GIZMOS)
BLAM std::vector< BlamWorldObject * >	Blam::Rendering::Raycast (BlamVector3 origin, BlamVector3 direction, bool sort_by_distance=true, uint16_t max_results=0U, BlamQueryFlags query_flags=BlamQueryFlags::QF_EXCLUDE_GIZMOS)
BLAM void	Blam::Rendering::Materials::RebuildDatablocks ()
	Rebuilds ALL datablocks (including instances) from their original tags. More...
BLAM bool	Blam::Rendering::Materials::BuildDatablockFromTag (material *material_tag, std::string tag_path)
	Creates an OGRE material datablock from a material tag. More...
BLAM void	Blam::Rendering::Materials::ReloadPendingMaterials ()
	Reloads all datablocks which are flagged as requiring a reload. More...
BLAM Ogre::HlmsDatablock *	Blam::Rendering::Materials::GetDatablockFromTag (std::string tag_path)
	Retrieves an OGRE datablock from a material tag path. More...
BLAM ogre_material_instance_data *	Blam::Rendering::Materials::GetDatablockInstanceFromTag (std::string tag_path, std::string referencing_tag_path)
	Retrieves a datablock instance from a material tag path, and a referencing tag path. More...
BLAM ogre_material_instance_data *	Blam::Rendering::Materials::CreateDatablockInstance (std::string tag_path, std::string referencing_tag_path)
	Creates a new datablock instance from a material tag path, and a referencing tag path. More...
BLAM bool	Blam::Rendering::Materials::LoadPBSDatablockFromMaterialTag (Ogre::HlmsPbsDatablock *datablock, material *material_tag)
	Loads a PBS (Physically-Based Shading) datablock from a material tag. More...
BLAM bool	Blam::Rendering::Materials::LoadUnlitDatablockFromMaterialTag (Ogre::HlmsUnlitDatablock *datablock, material *material_tag)
	Loads an Unlit datablock from a material tag. More...
BLAM Ogre::HlmsUnlitDatablock *	Blam::Rendering::Materials::CreateDefaultUnlitDatablock (std::string id)
	Creates a default Unlit datablock. More...
BLAM Ogre::HlmsUnlitDatablock *	Blam::Rendering::Materials::CreateDefaultUnlitDatablockForPrimitives (std::string id)
	Creates a default Unlit datablock for use with 2D and 3D primitives. More...
BLAM Ogre::HlmsPbsDatablock *	Blam::Rendering::Materials::CreateDefaultPbsDatablock (std::string id)
	Creates a default PBS datablock. More...
BLAM Ogre::HlmsPbsDatablock *	Blam::Rendering::Materials::CreateDefaultPbsDatablockForPrimitives (std::string id)
	Creates a default PBS datablock for use with 2D and 3D primitives. More...
BLAM void	Blam::Rendering::Textures::BuildTextureFromTag (bitmap *bitmap_tag, std::string tag_path)
	Loads a texture into OGRE from a bitmap tag. More...
BLAM Ogre::TextureGpu *	Blam::Rendering::Textures::GetTextureFromTag (std::string tag_path)
	Retrieves an OGRE texture from a tag path. More...
BLAM void	Blam::Rendering::Textures::ReloadPendingBitmaps ()
	Reloads all bitmaps that are currently pending a reload. More...
BLAM Ogre::TextureGpu *	Blam::Rendering::Textures::LoadTexture2D (std::string id, void *pixel_data, int width, int height, Ogre::PixelFormatGpu format, int bytes_per_line)
	Loads a 2D texture from data in memory. More...
BLAM void	Blam::Rendering::Models::LoadModel (render_model *model, std::string tag_path)
BLAM Ogre::MeshPtr	Blam::Rendering::Models::GetModelFromTagPath (std::string tag_path)
BLAM void	Blam::Rendering::Models::LoadPendingModels ()
BLAM void	Blam::Rendering::Models::UnloadModels ()
BLAM Ogre::Light *	Blam::Rendering::Lights::CreateLightFromTag (light *light)

Macro Definition Documentation

BLAM

#define BLAM

BLAM_OGRE_RESOURCE_GROUP

#define BLAM_OGRE_RESOURCE_GROUP   Ogre::ResourceGroupManager::DEFAULT_RESOURCE_GROUP_NAME

The name of the OGRE resource group used for engine resources.

GUI_RENDER_QUEUE_GROUP_ID

#define GUI_RENDER_QUEUE_GROUP_ID   200

The ID of the render queue group used for 2D rendering.
