BlamScenarioHierarchyNode_Group Class Reference

Class representing a group hierarchy node. More...

#include <hierarchy.h>

Inheritance diagram for BlamScenarioHierarchyNode_Group:

Collaboration diagram for BlamScenarioHierarchyNode_Group:

Public Member Functions
	BlamScenarioHierarchyNode_Group (std::string group_name, int _folder_id)
	Constructs a new hierarchy group node. More...
	~BlamScenarioHierarchyNode_Group ()
void	ReleaseData ()
	Releases any data used by this node. More...
void	AddChild (BlamScenarioHierarchyNode *node)
	Adds a new item to this group node. More...
BlamScenarioHierarchyNode *	GetChildAt (int index)
	Retrieves the child node at the specified index. More...
int	GetChildCount ()
	Retrieves the total number of child nodes. More...
void	RemoveNodeAt (int index, bool delete_object=true)
	Removes the child node at the specified index. More...
void	RemoveNode (BlamScenarioHierarchyNode *node, bool delete_object=true)
	Removes a specific child node from this group. More...
bool	HasChild (BlamScenarioHierarchyNode *node)
	Checks whether or not a node is a direct child of this node. More...
std::vector< BlamScenarioHierarchyNode_Object * >	GetAllObjectNodes ()
	Generates a list of all object nodes, within any child nodes. More...
Public Member Functions inherited from BlamScenarioHierarchyNode
	BlamScenarioHierarchyNode (BlamScenarioHierarchyNodeType _node_type)
	Constructs a new scenario hierarchy node. More...
	BlamScenarioHierarchyNode (BlamScenarioHierarchyNodeType _node_type, std::string _display_name_override)
	Constructs a new scenario hierarchy node. More...
virtual	~BlamScenarioHierarchyNode ()
BlamScenarioHierarchyNodeType	GetType ()
	Retrieves the type of this node. More...
virtual std::string	GetName ()
	Retrieves the display name of the hierarchy node. More...

Public Attributes
int	folder_id = -1
	The folder ID of this group. This number should be unique within the hierarchy. More...
Public Attributes inherited from BlamScenarioHierarchyNode
BlamScenarioHierarchyNode *	parent_node = nullptr
	The parent node, if any, of this hierarchy node. More...

Additional Inherited Members
Protected Attributes inherited from BlamScenarioHierarchyNode
bool	use_custom_name = false
	Whether or not to use a custom display name for the node. More...
std::string	display_name_override = "unspecified"
	The custom display name of this hierarchy node. More...

Detailed Description

Class representing a group hierarchy node.

Groups act as folders, allowing for better organization of objects within the hierarchy.

Constructor & Destructor Documentation

BlamScenarioHierarchyNode_Group()

BlamScenarioHierarchyNode_Group::BlamScenarioHierarchyNode_Group	(	std::string	group_name,
		int	_folder_id
	)

Constructs a new hierarchy group node.

Parameters

group_name	- The name of this group.
_folder_id	- The folder ID of this group.

~BlamScenarioHierarchyNode_Group()

BlamScenarioHierarchyNode_Group::~BlamScenarioHierarchyNode_Group

(

)

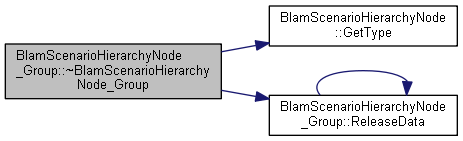

Here is the call graph for this function:

Member Function Documentation

AddChild()

void BlamScenarioHierarchyNode_Group::AddChild

(

BlamScenarioHierarchyNode *

node

)

Adds a new item to this group node.

Parameters

node	- The new child node to add.

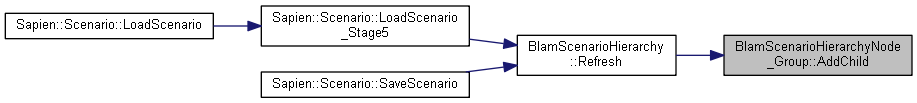

Here is the caller graph for this function:

GetAllObjectNodes()

std::vector< BlamScenarioHierarchyNode_Object * > BlamScenarioHierarchyNode_Group::GetAllObjectNodes

(

)

Generates a list of all object nodes, within any child nodes.

Returns

A list of all object nodes within this node.

Here is the call graph for this function:

Here is the caller graph for this function:

GetChildAt()

BlamScenarioHierarchyNode * BlamScenarioHierarchyNode_Group::GetChildAt

(

int

index

)

Retrieves the child node at the specified index.

Parameters

index

- The index of the desired child node.

Returns

The child node at the specified index, or nullptr if the index was out of range.

Here is the caller graph for this function:

GetChildCount()

int BlamScenarioHierarchyNode_Group::GetChildCount

(

)

Retrieves the total number of child nodes.

Returns

The total number of child nodes.

Here is the caller graph for this function:

HasChild()

bool BlamScenarioHierarchyNode_Group::HasChild

(

BlamScenarioHierarchyNode *

node

)

Checks whether or not a node is a direct child of this node.

Parameters

node	- The child node to check.

Returns

true if the specified node is a direct child of this node, otherwise returns false.

Here is the caller graph for this function:

ReleaseData()

void BlamScenarioHierarchyNode_Group::ReleaseData

(

)

Releases any data used by this node.

This will also release the data used by any and all child nodes.

Here is the call graph for this function:

Here is the caller graph for this function:

RemoveNode()

void BlamScenarioHierarchyNode_Group::RemoveNode	(	BlamScenarioHierarchyNode *	node,
		bool	delete_object = true
	)

Removes a specific child node from this group.

Note

If node is not nullptr and delete_object is set to true, then the provided node will be deleted - regardless of if it is a child of this node or not.

Parameters

node	- The node to remove.
delete_object	- Whether or not to delete the node data itself.

Here is the caller graph for this function:

RemoveNodeAt()

void BlamScenarioHierarchyNode_Group::RemoveNodeAt	(	int	index,
		bool	delete_object = true
	)

Removes the child node at the specified index.

If the specified index was out of range, then no operations are performed.

Parameters

index	- The index of the child to remove.
delete_object	- Whether or not to delete the node data itself.

Member Data Documentation

folder_id

int BlamScenarioHierarchyNode_Group::folder_id = -1

The folder ID of this group. This number should be unique within the hierarchy.

---

The documentation for this class was generated from the following files:

• HEKSapien/components/hierarchy/hierarchy.h
• HEKSapien/components/hierarchy/BlamScenarioHierarchyNode_Group.cpp
