BlamEngineViewportWidget Class Reference

Class representing the engine viewport widget. More...

#include <engine.h>

Inheritance diagram for BlamEngineViewportWidget:

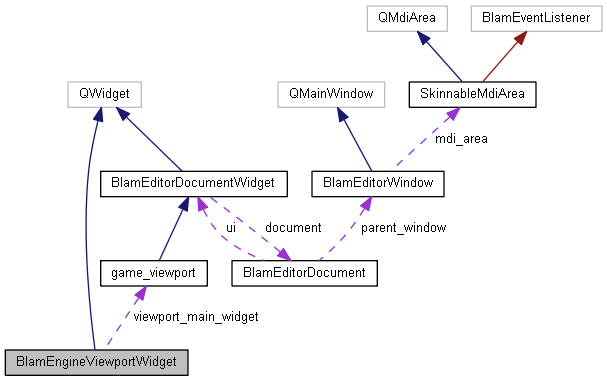

Collaboration diagram for BlamEngineViewportWidget:

Public Member Functions
	BlamEngineViewportWidget ()
	~BlamEngineViewportWidget ()
void	mouseMoveEvent (QMouseEvent *event)
void	mousePressEvent (QMouseEvent *event)
void	mouseReleaseEvent (QMouseEvent *event)
void	keyPressEvent (QKeyEvent *event)
void	keyReleaseEvent (QKeyEvent *event)
void	focusInEvent (QFocusEvent *focusInEvent)
void	focusOutEvent (QFocusEvent *focusInEvent)
void	UpdateStatusBar ()
	Updates the viewport status bar information. More...

Public Attributes
game_viewport *	viewport_main_widget = nullptr
	The viewport parent widget pointer. See game_viewport for details. More...

Detailed Description

Class representing the engine viewport widget.

This widget is a basic widget that the game engine renders onto. This widget is created from the SDL2 native window handle and used in any case where we need to have a real-time preview of any engine content.

Constructor & Destructor Documentation

BlamEngineViewportWidget()

BlamEngineViewportWidget::BlamEngineViewportWidget

(

)

~BlamEngineViewportWidget()

BlamEngineViewportWidget::~BlamEngineViewportWidget

(

)

Member Function Documentation

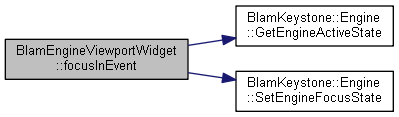

focusInEvent()

void BlamEngineViewportWidget::focusInEvent

(

QFocusEvent *

focusInEvent

)

Here is the call graph for this function:

focusOutEvent()

void BlamEngineViewportWidget::focusOutEvent

(

QFocusEvent *

focusInEvent

)

Here is the call graph for this function:

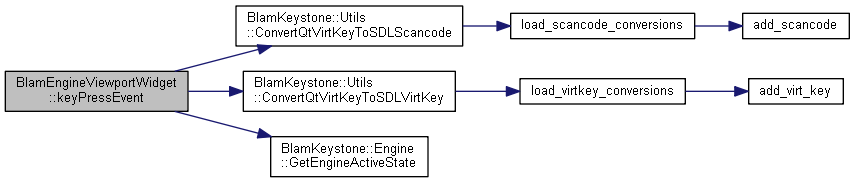

keyPressEvent()

void BlamEngineViewportWidget::keyPressEvent

(

QKeyEvent *

event

)

Here is the call graph for this function:

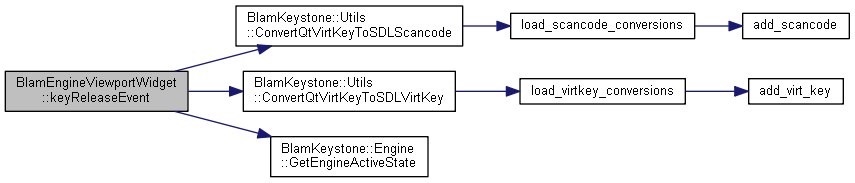

keyReleaseEvent()

void BlamEngineViewportWidget::keyReleaseEvent

(

QKeyEvent *

event

)

Here is the call graph for this function:

mouseMoveEvent()

void BlamEngineViewportWidget::mouseMoveEvent

(

QMouseEvent *

event

)

Here is the call graph for this function:

mousePressEvent()

void BlamEngineViewportWidget::mousePressEvent

(

QMouseEvent *

event

)

Here is the call graph for this function:

mouseReleaseEvent()

void BlamEngineViewportWidget::mouseReleaseEvent

(

QMouseEvent *

event

)

Here is the call graph for this function:

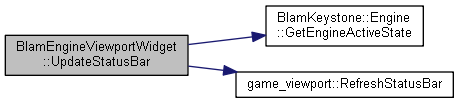

UpdateStatusBar()

void BlamEngineViewportWidget::UpdateStatusBar

(

)

Updates the viewport status bar information.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

viewport_main_widget

game_viewport* BlamEngineViewportWidget::viewport_main_widget = nullptr

The viewport parent widget pointer. See game_viewport for details.

---

The documentation for this class was generated from the following files:

• keystone/components/engine/engine.h
• keystone/components/engine/BlamEngineViewportWidget.cpp
