BlamExplorerBarTreeWidget Class Reference

#include <treewidget.h>

Inheritance diagram for BlamExplorerBarTreeWidget:

Collaboration diagram for BlamExplorerBarTreeWidget:

Public Member Functions
	BlamExplorerBarTreeWidget (BlamEditorToolWindow *_tool_window, BlamProject *_project, bool hierarchy=true)
	Creates a new Tree Widget for the Guerilla Explorer Bar. More...
	BlamExplorerBarTreeWidget (BlamEditorToolWindow *_tool_window, BlamTagTreeNode *node, bool hierarchy, BlamProject *_project=nullptr)
	Creates a new Tree Widget for the Guerilla Explorer Bar. More...
	BlamExplorerBarTreeWidget (BlamEditorToolWindow *_tool_window, BlamPlugin *_plugin)
	Creates a new Tree Widget for the Guerilla Explorer Bar. More...
	BlamExplorerBarTreeWidget (BlamEditorToolWindow *_tool_window, std::string _file_path, std::string file_extension_filter="")
	Creates a new Tree Widget for the Guerilla Explorer Bar. More...
	~BlamExplorerBarTreeWidget ()
	Destructor which releases all pointers if they are still loaded. More...
bool	IsValid ()
	Checks whether the node is valid. More...
void	Refresh ()
	Refreshes all data relating to this node. More...
void	UpdateIcon ()
	Updates the node's icon. More...
void	OpenTag ()
	This will open the tag associated with the node, if one is present. More...
void	OpenBackupTag ()
	This will open the backup tag associated with this node. More...
void	Filter (std::string search_filter, bool keep_empty_folders)
	Instructs the tree node to filter out any child items that do not contain a specified string. More...
void	ShowInformationDialog ()
	Shows the tag information dialog. More...

Public Attributes
BlamTagTreeNode *	tag_node = nullptr
	The node associated with this widget. More...

Constructor & Destructor Documentation

BlamExplorerBarTreeWidget() [1/4]

BlamExplorerBarTreeWidget::BlamExplorerBarTreeWidget	(	BlamEditorToolWindow *	_tool_window,
		BlamProject *	_project,
		bool	hierarchy = true
	)

Creates a new Tree Widget for the Guerilla Explorer Bar.

This override should ONLY be used for the root of a given project or tag folder, as it is treated differently from child nodes.

Parameters

_tool_window	- Pointer to explorer bar tool window.
_project	- The project that this node will generate children from.
hierarchy	- Whether or not the explorer is in hierarchy mode. Defaults to true.

Here is the call graph for this function:

BlamExplorerBarTreeWidget() [2/4]

BlamExplorerBarTreeWidget::BlamExplorerBarTreeWidget	(	BlamEditorToolWindow *	_tool_window,
		BlamTagTreeNode *	node,
		bool	hierarchy,
		BlamProject *	_project = nullptr
	)

Creates a new Tree Widget for the Guerilla Explorer Bar.

This override should be used for all non-root tree widgets.

Parameters

_tool_window	- Pointer to explorer bar tool window.
node	- The node that this tree widget represents.
hierarchy	- Whether or not the explorer is in hierarchy mode. Will use class view if this is false.
_project	- The project that the node belongs to. Defaults to nullptr, although this is considered invalid.

Here is the call graph for this function:

BlamExplorerBarTreeWidget() [3/4]

BlamExplorerBarTreeWidget::BlamExplorerBarTreeWidget	(	BlamEditorToolWindow *	_tool_window,
		BlamPlugin *	_plugin
	)

Creates a new Tree Widget for the Guerilla Explorer Bar.

This override is used specifically for creating containers for tag classes when the explorer is in class view.

Parameters

_tool_window	- Pointer to explorer bar tool window.
plugin	- Pointer to plugin that this node represents.

Here is the call graph for this function:

BlamExplorerBarTreeWidget() [4/4]

BlamExplorerBarTreeWidget::BlamExplorerBarTreeWidget	(	BlamEditorToolWindow *	_tool_window,
		std::string	_file_path,
		std::string	file_extension_filter = ""
	)

Creates a new Tree Widget for the Guerilla Explorer Bar.

This override is used specifically for creating tree nodes for generic files and folders.

Parameters

_tool_window	- Pointer to explorer bar tool window.
_file_path	- Path to the file or folder to create a node from.
file_extension_filter	- A list of file extensions to show by default. Separate extensions with a | character.

Here is the call graph for this function:

~BlamExplorerBarTreeWidget()

BlamExplorerBarTreeWidget::~BlamExplorerBarTreeWidget

(

)

Destructor which releases all pointers if they are still loaded.

Member Function Documentation

Filter()

void BlamExplorerBarTreeWidget::Filter	(	std::string	search_filter,
		bool	keep_empty_folders
	)

Instructs the tree node to filter out any child items that do not contain a specified string.

Parameters

search_filter	- The search filter to check against.
keep_empty_folders	- Whether or not to preserve empty folders.

Here is the call graph for this function:

Here is the caller graph for this function:

IsValid()

bool BlamExplorerBarTreeWidget::IsValid

(

)

Checks whether the node is valid.

If all data associated with this tree node is valid, this will return true.

Returns

true if the node data is valid, otherwise returns false.

Here is the caller graph for this function:

OpenBackupTag()

void BlamExplorerBarTreeWidget::OpenBackupTag

(

)

This will open the backup tag associated with this node.

This is done by checking if a file of the same path exists with a .bak file extension. If there is no backup file, this will do nothing.

Here is the call graph for this function:

OpenTag()

void BlamExplorerBarTreeWidget::OpenTag

(

)

This will open the tag associated with the node, if one is present.

If the node is a directory, this will do nothing.

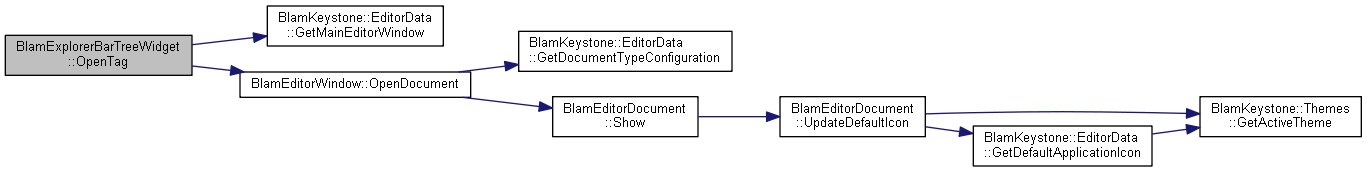

Here is the call graph for this function:

Refresh()

void BlamExplorerBarTreeWidget::Refresh

(

)

Refreshes all data relating to this node.

This will reload the icon and regenerate any child widgets.

Here is the call graph for this function:

Here is the caller graph for this function:

ShowInformationDialog()

void BlamExplorerBarTreeWidget::ShowInformationDialog

(

)

Shows the tag information dialog.

UpdateIcon()

void BlamExplorerBarTreeWidget::UpdateIcon

(

)

Updates the node's icon.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

tag_node

BlamTagTreeNode* BlamExplorerBarTreeWidget::tag_node = nullptr

The node associated with this widget.

---

The documentation for this class was generated from the following files:

• keystone/components/ui/shared/controls/explorer/treewidget/treewidget.h
• keystone/components/ui/shared/controls/explorer/treewidget/treewidget.cpp
