BlamRay Struct Reference

#include <types.h>

Public Member Functions
bool	TestRayOBB (BlamOBB *obb, BlamRaycastHit *hit_result)
	Tests a ray against an oriented bounding box and returns a hit result. More...
std::vector< BlamRaycastHit >	Cast (bool sort_by_distance, uint16_t max_results, uint32_t query_flags)
	Casts a ray against all registered world objects and returns a list of hits. More...
BlamVector3	GetPointAtDistance (float distance)
	Returns the world-space point along the ray at the given distance from the origin. More...

Public Attributes
BlamVector3	origin
BlamVector3	direction

Member Function Documentation

Cast()

std::vector< BlamRaycastHit > BlamRay::Cast	(	bool	sort_by_distance,
		uint16_t	max_results,
		uint32_t	query_flags
	)

Casts a ray against all registered world objects and returns a list of hits.

Tests the ray against each world object's bounding volume. Results can optionally be sorted by distance from the ray origin. Objects are filtered by query flags.

This function is equivalent to Ogre's RaySceneQuery and is intended to be called from the render thread. For off-thread usage, queue a pending raycast and process it on the render thread, following the same pattern as the previous Ogre implementation.

Parameters

ray	Pointer to the world-space ray to cast.
sort_by_distance	Whether to sort results nearest-first.
max_results	Maximum number of results to return.
query_flags	Bitmask to filter which objects are considered.

Returns

A list of BlamRaycastHit entries for each object the ray intersected.

Author

Claude (claude-sonnet-4-6)

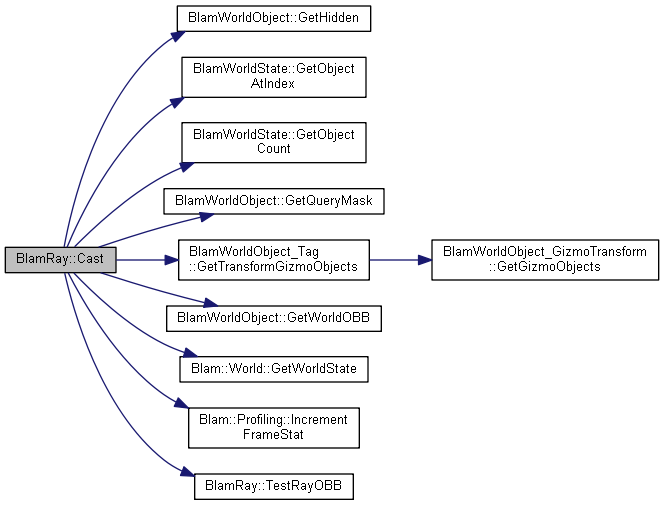

Here is the call graph for this function:

Here is the caller graph for this function:

GetPointAtDistance()

BlamVector3 BlamRay::GetPointAtDistance

(

float

distance

)

Returns the world-space point along the ray at the given distance from the origin.

Parameters

distance

Distance from the ray origin along the ray direction.

Returns

The world-space position at that distance.

Author

Claude (claude-sonnet-4-6)

Here is the caller graph for this function:

TestRayOBB()

bool BlamRay::TestRayOBB	(	BlamOBB *	obb,
		BlamRaycastHit *	hit_result
	)

Tests a ray against an oriented bounding box and returns a hit result.

Transforms the ray into the OBB's local coordinate space and performs a standard slab-method AABB intersection test. Returns a hit result with distance and world-space hit point if the ray intersects the box.

Parameters

ray	Pointer to the ray to test.
obb	Pointer to the oriented bounding box to test against.
hit_result	Pointer to the result struct to populate if a hit occurs.

Returns

True if the ray intersects the OBB, false otherwise.

Author

Claude (claude-sonnet-4-6)

Here is the caller graph for this function:

Member Data Documentation

direction

BlamVector3 BlamRay::direction

origin

BlamVector3 BlamRay::origin

---

The documentation for this struct was generated from the following files:

• blam/components/rendering/bgfx/types.h
• blam/components/rendering/bgfx/types/BlamRay.cpp
