BlamUIWidget_Console Class Reference

Class for the console UI widget. More...

#include <console.h>

Inheritance diagram for BlamUIWidget_Console:

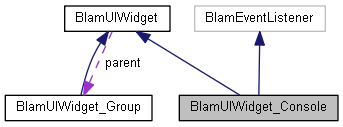

Collaboration diagram for BlamUIWidget_Console:

Public Member Functions
	BlamUIWidget_Console (BlamUIWidget_Group *_parent)
	Constructs a new console widget. More...
	~BlamUIWidget_Console ()
void	Draw () override
void	ShowImGuiPropertyEditor () override
void	UpdateMetrics () override
void	RefreshRelativePosition () override
void	OnKeyPressEvent (KeyPressEvent *event) override
void	OnCharacterInputEvent (CharacterInputEvent *event) override
void	OnTickEvent (TickEvent *event) override
void	OnLogMessageEvent (LogMessageEvent *event) override
void	PrintAsColumns (std::vector< std::string > items)
	Displays a list of strings within the console column display. More...
void	PrintAsColumns (std::vector< BlamLogMessage > items)
	Displays a list of log messages within the console column display. More...
void	ClearOutput ()
	Clears the console output. More...
Public Member Functions inherited from BlamUIWidget
	BlamUIWidget (BlamWidgetType type)
	BlamUIWidget (BlamWidgetType type, BlamUIWidget_Group *_parent)
virtual	~BlamUIWidget ()
BlamWidgetType	GetType ()
void	RefreshRelativePosition (int viewport_width, int viewport_height, BlamVector2 initial_position)
void	SetSize (BlamVector2 new_size)
virtual void	SetPosition (BlamVector2 new_position)
void	SetRotation (float new_rotation)
void	SetAnchorPosition (BlamWidgetAnchor new_anchor_position)
void	MarkForUpdate ()
BlamVector2	GetAbsolutePosition ()
BlamWidgetAnchor	GetAnchorPosition ()
virtual void	SetHidden (bool new_hidden)
bool	IsHidden ()

Additional Inherited Members
Public Attributes inherited from BlamUIWidget
std::string	display_name = "unnamed"
std::string	description = ""
BlamVector2	position = { 0, 0 }
BlamVector2	size = { 100, 100 }
float	rotation = 0.0f
int	z_index = 0
float	z_size = 1.0f
bool	auto_update = false
Ogre::HlmsDatablock *	material = nullptr
BlamUIWidget_Group *	parent = nullptr
bool	ignore_layout = false
bool	hide_in_layout = false
Protected Member Functions inherited from BlamUIWidget
int	GetAdjustedZIndex ()
Protected Attributes inherited from BlamUIWidget
BlamVector2	position_absolute = { 0, 0 }
BlamVector2	size_absolute = { 100, 100 }
bool	update = false
bool	hidden = false

Detailed Description

Class for the console UI widget.

The console allows for direct interaction with the engine through console commands. Additionally, it allows for direct execution of script functions and modification of script variables.

Constructor & Destructor Documentation

BlamUIWidget_Console()

BlamUIWidget_Console::BlamUIWidget_Console

(

BlamUIWidget_Group *

_parent

)

Constructs a new console widget.

Parameters

_parent

- The parent of this widget. Should always be the UI root.

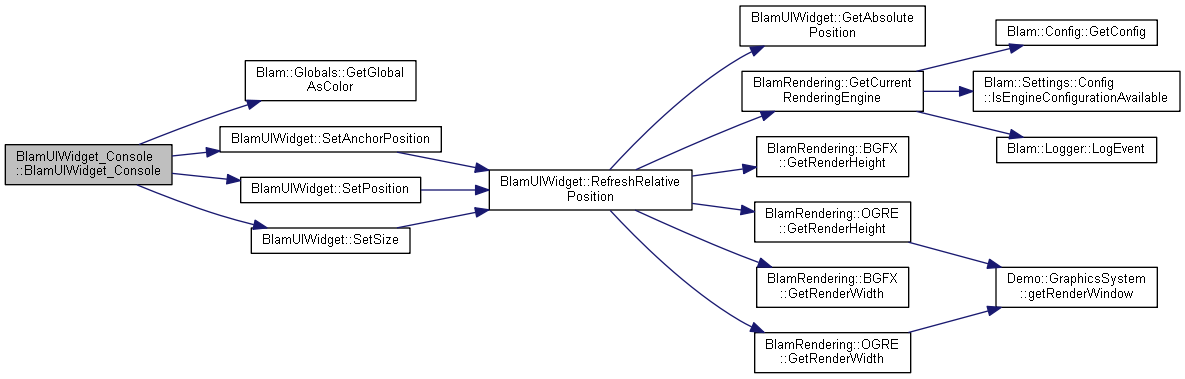

Here is the call graph for this function:

~BlamUIWidget_Console()

BlamUIWidget_Console::~BlamUIWidget_Console

(

)

Member Function Documentation

ClearOutput()

void BlamUIWidget_Console::ClearOutput

(

)

Clears the console output.

Will clear both log message history as well as column content.

Here is the call graph for this function:

Draw()

void BlamUIWidget_Console::Draw ( )

overridevirtual

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

OnCharacterInputEvent()

void BlamUIWidget_Console::OnCharacterInputEvent ( CharacterInputEvent *  event )

override

OnKeyPressEvent()

void BlamUIWidget_Console::OnKeyPressEvent ( KeyPressEvent *  event )

override

Here is the call graph for this function:

OnLogMessageEvent()

void BlamUIWidget_Console::OnLogMessageEvent ( LogMessageEvent *  event )

override

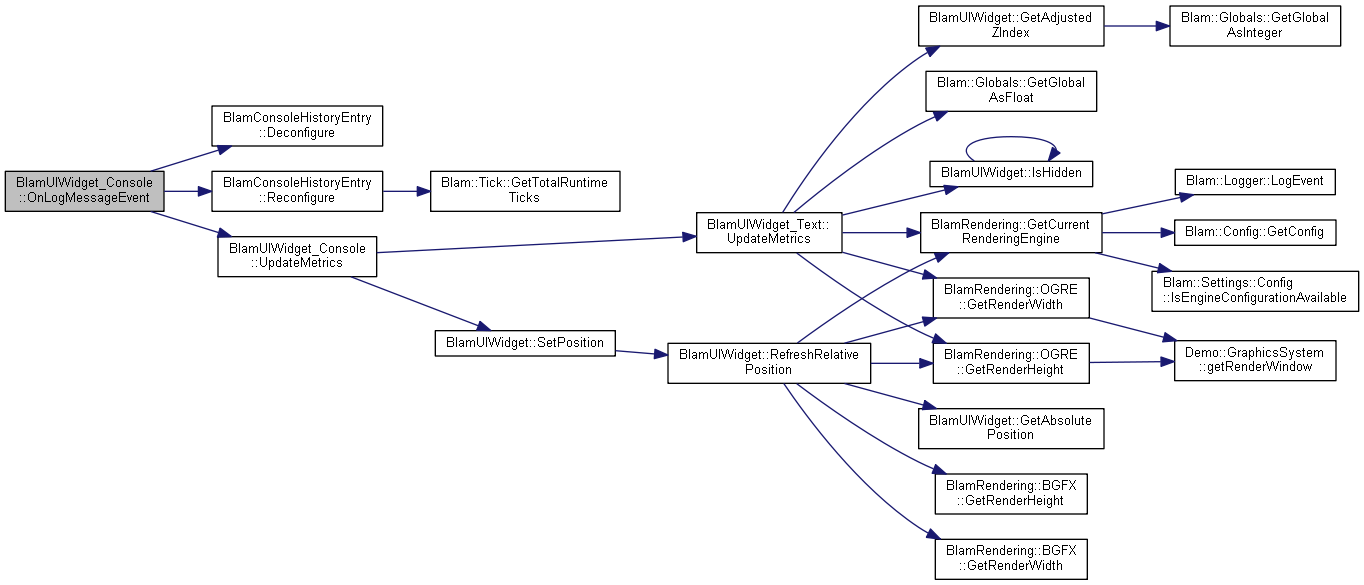

Here is the call graph for this function:

OnTickEvent()

void BlamUIWidget_Console::OnTickEvent ( TickEvent *  event )

override

Here is the call graph for this function:

PrintAsColumns() [1/2]

void BlamUIWidget_Console::PrintAsColumns

(

std::vector< BlamLogMessage >

items

)

Displays a list of log messages within the console column display.

Each item will be displayed from the top-left to the bottom-right, occupying as many rows as needed to display all items unless the amount of items exceeds the number of rows - in which case as many items will be shown, and the remainder will not be displayed. The amount of items that can be shown depeneds on the amount of console lines and the maximum amount of columns.

This method can be used to display messages with color information. No other log message information is used.

Parameters

items

- The items to display within the columns.

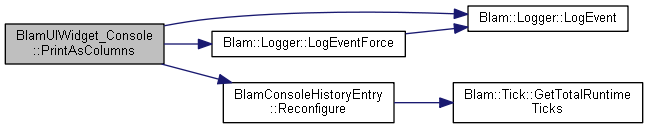

Here is the call graph for this function:

PrintAsColumns() [2/2]

void BlamUIWidget_Console::PrintAsColumns

(

std::vector< std::string >

items

)

Displays a list of strings within the console column display.

Each item will be displayed from the top-left to the bottom-right, occupying as many rows as needed to display all items unless the amount of items exceeds the number of rows - in which case as many items will be shown, and the remainder will not be displayed. The amount of items that can be shown depeneds on the amount of console lines and the maximum amount of columns.

Parameters

items

- The items to display within the columns.

Here is the call graph for this function:

RefreshRelativePosition()

void BlamUIWidget_Console::RefreshRelativePosition ( )

overridevirtual

Reimplemented from BlamUIWidget.

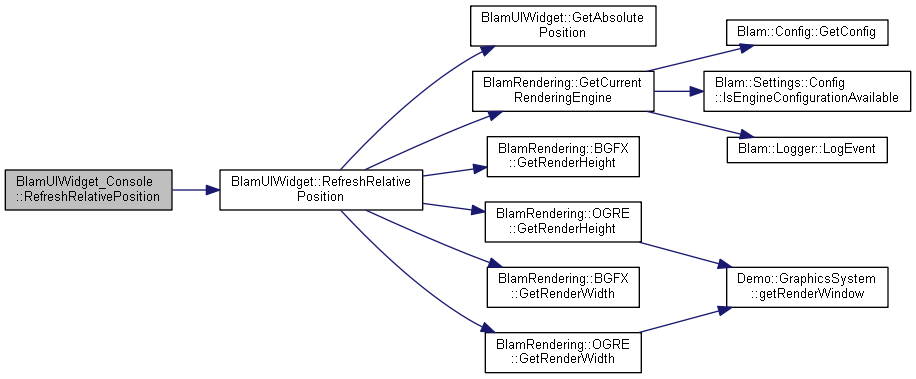

Here is the call graph for this function:

ShowImGuiPropertyEditor()

void BlamUIWidget_Console::ShowImGuiPropertyEditor ( )

overridevirtual

Reimplemented from BlamUIWidget.

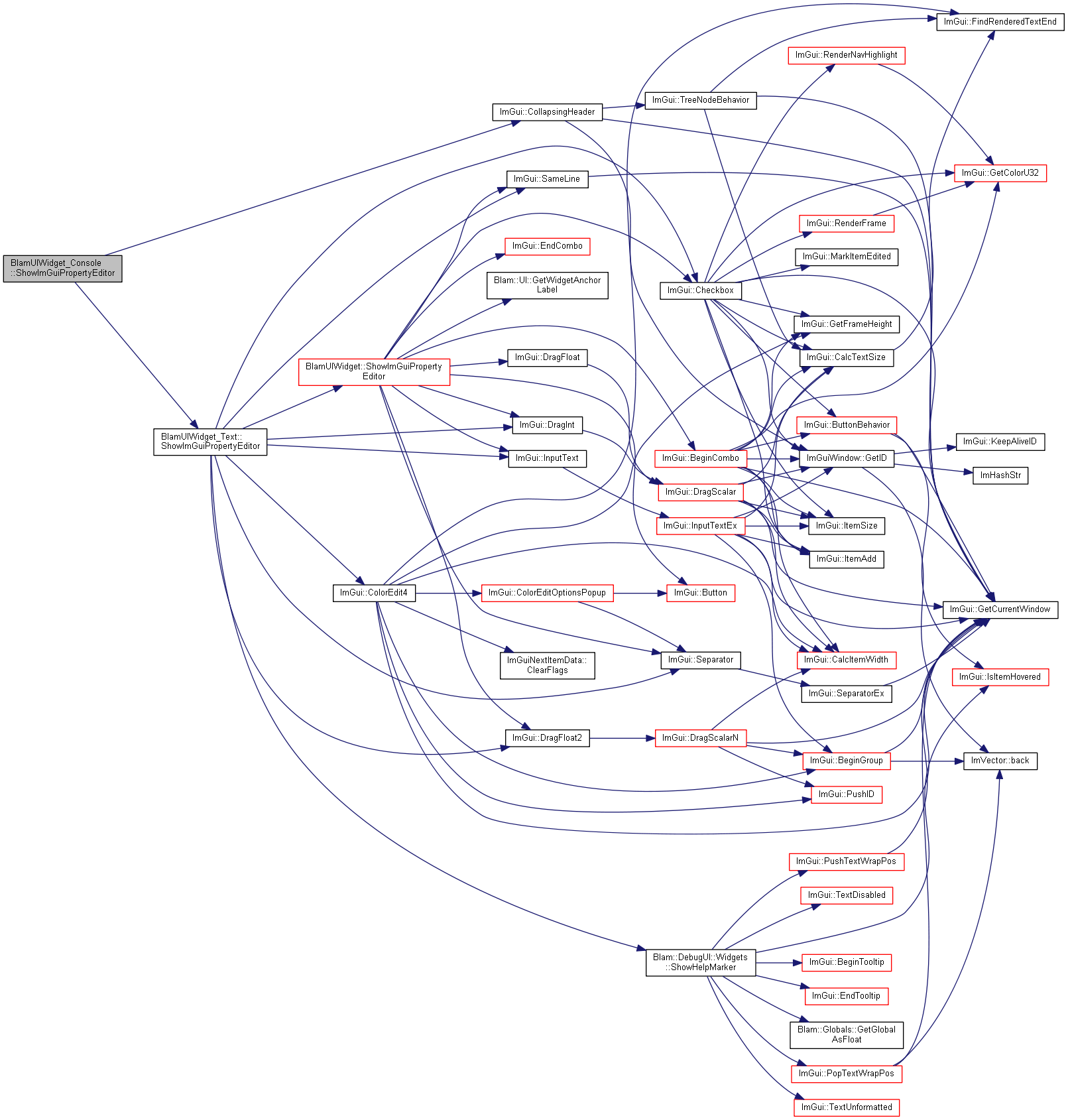

Here is the call graph for this function:

UpdateMetrics()

void BlamUIWidget_Console::UpdateMetrics ( )

overridevirtual

Reimplemented from BlamUIWidget.

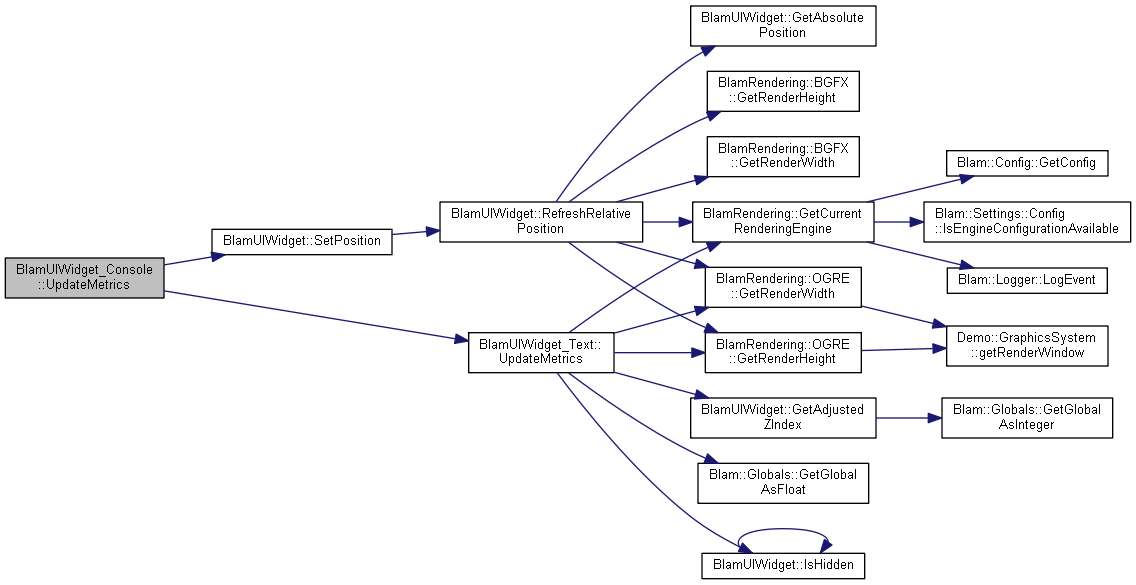

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• blam/components/ui/blam/widgets/advanced/console.h
• blam/components/ui/blam/widgets/advanced/BlamUIWidget_Console.cpp
