ui.h File Reference

#include <Strings/components/resources/color/BlamColor.h>
#include <OGRE/Overlay/OgreTextAreaOverlayElement.h>
#include <OGRE/Overlay/OgreOverlayContainer.h>
#include <OGRE/Overlay/OgrePanelOverlayElement.h>
#include <OGRE/Overlay/OgreOverlay.h>
#include <OGRE/OgreManualObject2.h>
#include <OGRE/OgreSceneManager.h>
#include <vector>
#include <string>
#include "components/core/world/world.h"
#include "components/content/tags/classes/cui_screen.h"
#include "components/content/fonts/fonts.h"

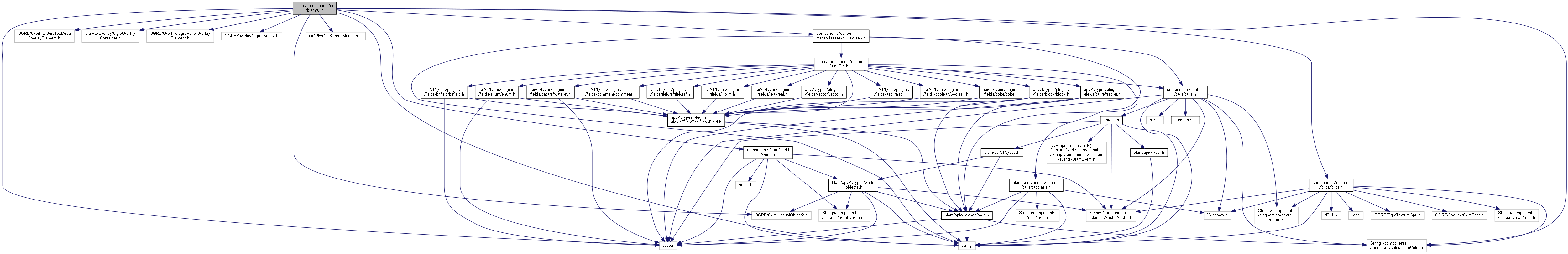

Include dependency graph for ui.h:

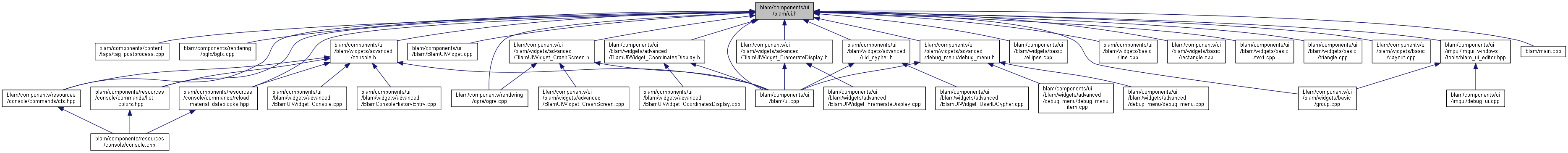

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BlamUIWidget
class	BlamUIWidget_Group
class	BlamUIWidget_VLayoutGroup
class	BlamUIWidget_BasicRectangle
class	BlamUIWidget_BasicEllipse
class	BlamUIWidget_BasicLine
class	BlamUIWidget_BasicTriangle
class	BlamUIWidget_Text

Namespaces
	Blam
	Namespace surrounding all major engine components.
	Blam::DebugUI
	Namespace containing things relating to ImGUI, and the ImGUI draw list.
	Blam::DebugUI::Windows
	Legacy namespace to contain data for the legacy ImGUI console.
	Blam::UI
	Namespace containing functions relating to the Blamite UI system.

Macros
#define	BLAM

Enumerations
enum	BlamWidgetAnchor : uint8_t {   BlamWidgetAnchor::TopCenter, BlamWidgetAnchor::Center, BlamWidgetAnchor::BottomCenter, BlamWidgetAnchor::TopLeft,   BlamWidgetAnchor::CenterLeft, BlamWidgetAnchor::BottomLeft, BlamWidgetAnchor::TopRight, BlamWidgetAnchor::CenterRight,   BlamWidgetAnchor::BottomRight, BlamWidgetAnchor::TopFill, BlamWidgetAnchor::LeftFill, BlamWidgetAnchor::RightFill,   BlamWidgetAnchor::BottomFill, BlamWidgetAnchor::Fill }
	Enumerator listing possible widget anchor positions. More...
enum	BlamWidgetType {   BlamWidgetType::Basic_Rectangle, BlamWidgetType::Basic_Ellipse, BlamWidgetType::Basic_Line, BlamWidgetType::Basic_Triangle,   BlamWidgetType::Text, BlamWidgetType::Group, BlamWidgetType::Group_VLayout, BlamWidgetType::Group_HLayout,   BlamWidgetType::Console, BlamWidgetType::UIDCypher, BlamWidgetType::FramerateDisplay, BlamWidgetType::CoordinatesDisplay,   BlamWidgetType::DebugMenu, BlamWidgetType::DebugMenuItem, BlamWidgetType::CrashScreen, BlamWidgetType::Unspecified }
	Enumerator listing possible UI widget types. More...

Functions
BLAM bool	Blam::UI::Initialize ()
BLAM void	Blam::UI::Render ()
BLAM void	Blam::UI::Shutdown ()
BLAM BlamUIWidget_Group *	Blam::UI::GetUIRoot ()
BLAM std::string	Blam::UI::GetWidgetAnchorLabel (BlamWidgetAnchor anchor_position)
BLAM bool	Blam::UI::LoadFromCUIScreenTag (std::string tag_path, cui_screen *cusc_tag)
BLAM BlamUIWidget_CrashScreen *	Blam::UI::GetCrashScreenWidget ()

Macro Definition Documentation

BLAM

#define BLAM

Enumeration Type Documentation

BlamWidgetAnchor

enum BlamWidgetAnchor : uint8_t

strong

Enumerator listing possible widget anchor positions.

In some special cases, this anchor may not always be respected.

Enumerator
TopCenter	The widget will be placed at the top-center of the screen.
Center	The widget will be placed at the center of the screen.
BottomCenter	The widget will be placed at the bottom-center of the screen.
TopLeft	The widget will be placed at the top-left of the screen.
CenterLeft	The widget will be placed at the center-left of the screen.
BottomLeft	The widget will be placed at the bottom-left of the screen.
TopRight	The widget will be placed at the top-right of the screen.
CenterRight	The widget will be placed at the center-right of the screen.
BottomRight	The widget will be placed at the bottom-right of the screen.
TopFill	The widget will fill the top of the screen, while height is left unchanged.
LeftFill	The widget will fill the left of the screen, while width is left unchanged.
RightFill	The widget will fill the right of the screen, while width is left unchanged.
BottomFill	The widget will fill the bottom of the screen, while height is left unchanged.
Fill	The widget will fill the entire screen.

BlamWidgetType

enum BlamWidgetType

strong

Enumerator listing possible UI widget types.

Enumerator
Basic_Rectangle	A basic filled or outline rectangle.
Basic_Ellipse	A basic filled or outline ellipse.
Basic_Line	A basic line.
Basic_Triangle	A basic filled or outline triangle.
Text	A text object, used to show text on-screen.
Group	A group widget, which can be used to contain any number of other widgets.
Group_VLayout	A group widget which displays all items in a vertical list.
Group_HLayout	A group widget which displays all items in a horizontal list.
Console	Special widget. Used for the in-game console.
UIDCypher	Special widget. Used for the user ID cypher.
FramerateDisplay	Special widget. Used for the framerate display.
CoordinatesDisplay	Special widget. Used for the coordinates display.
DebugMenu	Special widget. Used for the in-game debug menu.
DebugMenuItem	Special widget. Represents an item within the debug menu.
CrashScreen	Special widget. Used for the in-game crash screen.
Unspecified	Indicates the widget is of an unspecified type. Will only appear when a widget is improperly constructed.
