Class for the console UI widget. More...

#include <console.h>

Inheritance diagram for BlamUIWidget_Console:

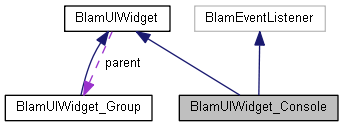

Collaboration diagram for BlamUIWidget_Console:

Public Member Functions
	BlamUIWidget_Console (BlamUIWidget_Group *_parent)
	Constructs a new console widget. More...

	~BlamUIWidget_Console ()

void	Draw () override
	Draws the widget on-screen. More...

void	ShowImGuiPropertyEditor () override
	Displays an ImGUI-based property editor. More...

void	UpdateMetrics () override
	Updates metrics for the widget. More...

void	RefreshRelativePosition () override
	Updates the relative position of the widget, relative to its parent. More...

void	OnKeyPressEvent (KeyPressEvent *event) override

void	OnCharacterInputEvent (CharacterInputEvent *event) override

void	OnTickEvent (TickEvent *event) override

void	OnLogMessageEvent (LogMessageEvent *event) override

void	PrintAsColumns (std::vector< std::string > items)
	Displays a list of strings within the console column display. More...

void	PrintAsColumns (std::vector< BlamLogMessage > items)
	Displays a list of log messages within the console column display. More...

void	ClearOutput ()
	Clears the console output. More...

Public Member Functions inherited from BlamUIWidget
	BlamUIWidget (BlamWidgetType type)
	Constructs a new UI widget. More...

	BlamUIWidget (BlamWidgetType type, BlamUIWidget_Group *_parent)
	Constructs a new UI widget. More...

virtual	~BlamUIWidget ()

BlamWidgetType	GetType ()
	Retrieves the type of this widget. More...

void	RefreshRelativePosition (int viewport_width, int viewport_height, BlamVector2 initial_position)
	Updates the relative position of the widget. More...

void	SetSize (BlamVector2 new_size)
	Sets the size of the widget. More...

virtual void	SetPosition (BlamVector2 new_position)
	Sets the position of the widget. More...

void	SetRotation (float new_rotation)
	Sets the rotation of the widget. More...

void	SetAnchorPosition (BlamWidgetAnchor new_anchor_position)
	Sets the anchor position of the widget. More...

void	MarkForUpdate ()
	Marks the widget as needing to be updated on the next draw call. More...

BlamVector2	GetAbsolutePosition ()
	Retrieves the absolute position of the widget. More...

BlamWidgetAnchor	GetAnchorPosition ()
	Retrieves the anchor position of the widget. More...

virtual void	SetHidden (bool new_hidden)
	Sets the hidden state of the widget. More...

bool	IsHidden ()
	Checks whether or not the widget is hidden. More...

Additional Inherited Members
Public Attributes inherited from BlamUIWidget
std::string	display_name = "unnamed"
	The display name of the widget. More...

std::string	description = ""
	An optional description of the widget. More...

BlamVector2	position = { 0, 0 }
	The position of the widget, relative to its parent. More...

BlamVector2	size = { 100, 100 }
	The size of the widget, relative to its parent. More...

float	rotation = 0.0f
	The rotation of the widget, in degrees. More...

int	z_index = 0
	The Z index of the widget, where higher Z orders are drawn on top. More...

float	z_size = 1.0f
	The Z size of the widget. Mostly unused. More...

bool	auto_update = false
	Whether or not the widget should always update every frame. More...

Ogre::HlmsDatablock *	material = nullptr
	The datablock used by the widget, if applicable. More...

BlamUIWidget_Group *	parent = nullptr
	The parent group of this widget, if applicable. More...

bool	ignore_layout = false
	Whether or not this widget should ignore any layout positioning. More...

bool	hide_in_layout = false
	Whether or not this widget should be hidden within its layout. More...

bool	ignore_scale_factor = false
	Whether or not this widget should ignore the UI scale factor settings. More...

Protected Member Functions inherited from BlamUIWidget
int	GetAdjustedZIndex ()
	Retrieves the adjusted Z-index of the widget. More...

Protected Attributes inherited from BlamUIWidget
BlamVector2	position_absolute = { 0, 0 }
	The absolute position of the widget on-screen. More...

BlamVector2	size_absolute = { 100, 100 }
	The absolute size of the widget on-screen. More...

bool	update = false
	Whether or not the widget needs to be updated before the next draw call. More...

bool	hidden = false
	Whether or not the widget is hidden. More...

Detailed Description

Class for the console UI widget.

The console allows for direct interaction with the engine through console commands. Additionally, it allows for direct execution of script functions and modification of script variables.

Constructor & Destructor Documentation

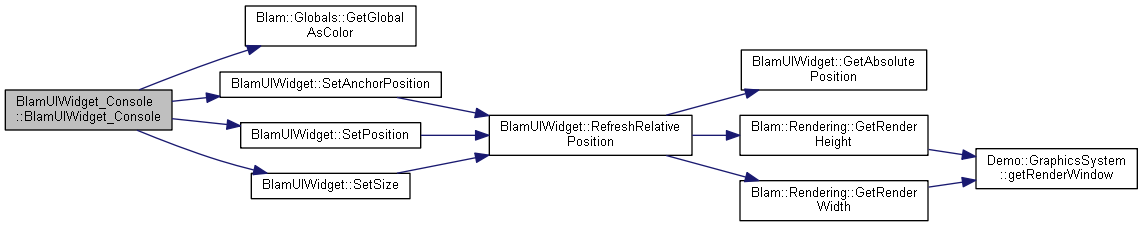

◆ BlamUIWidget_Console()

BlamUIWidget_Console::BlamUIWidget_Console ( BlamUIWidget_Group * _parent )

Constructs a new console widget.

Parameters

_parent - The parent of this widget. Should always be the UI root.

Here is the call graph for this function:

◆ ~BlamUIWidget_Console()

BlamUIWidget_Console::~BlamUIWidget_Console ( )

Member Function Documentation

◆ ClearOutput()

void BlamUIWidget_Console::ClearOutput ( )

Clears the console output.

Will clear both log message history as well as column content.

Here is the call graph for this function:

Here is the caller graph for this function:

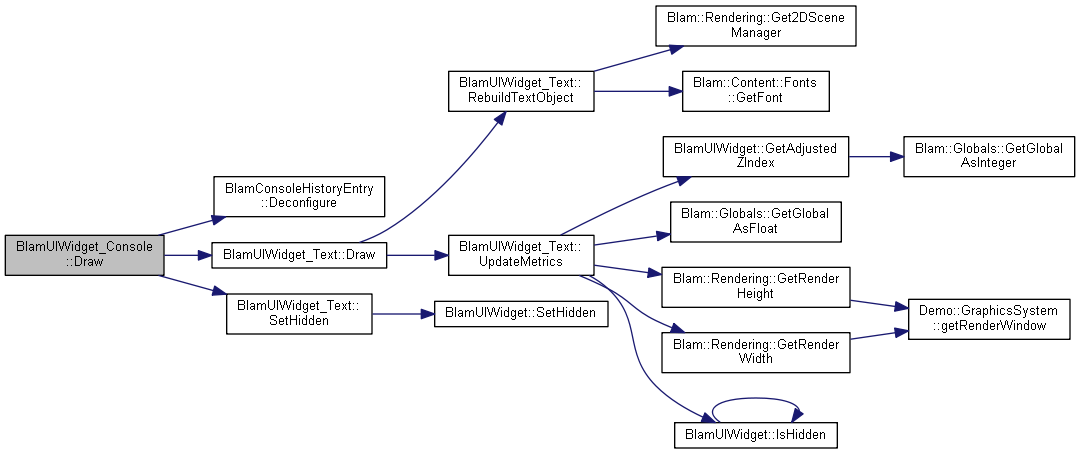

◆ Draw()

void BlamUIWidget_Console::Draw ( )

overridevirtual

Draws the widget on-screen.

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

◆ OnCharacterInputEvent()

void BlamUIWidget_Console::OnCharacterInputEvent ( CharacterInputEvent * event )

override

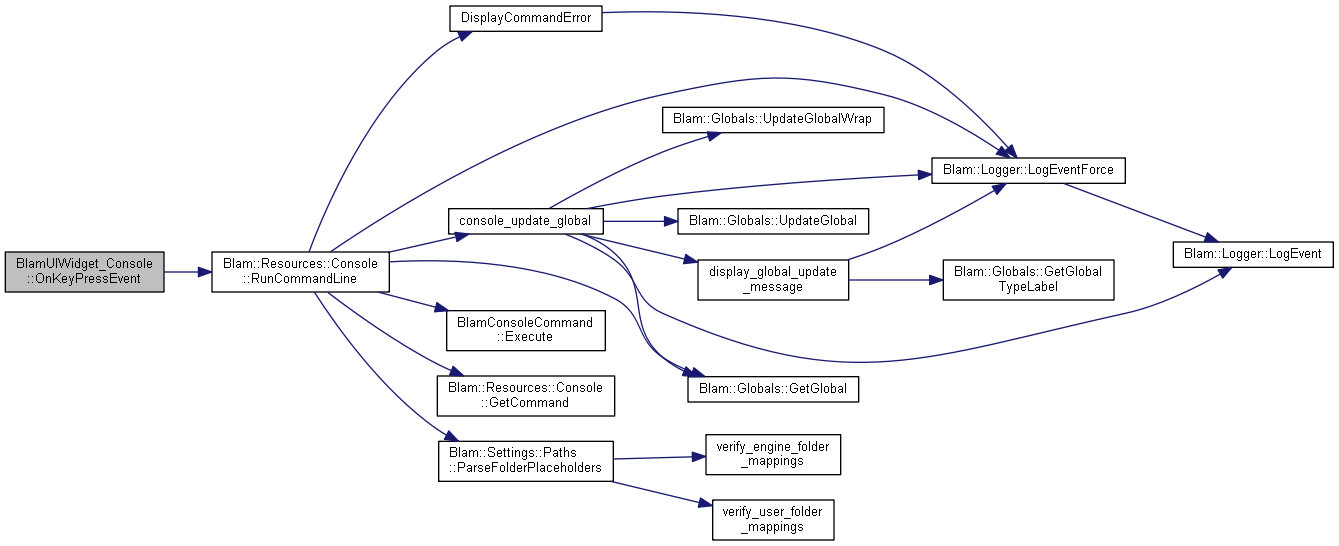

◆ OnKeyPressEvent()

void BlamUIWidget_Console::OnKeyPressEvent ( KeyPressEvent * event )

override

Here is the call graph for this function:

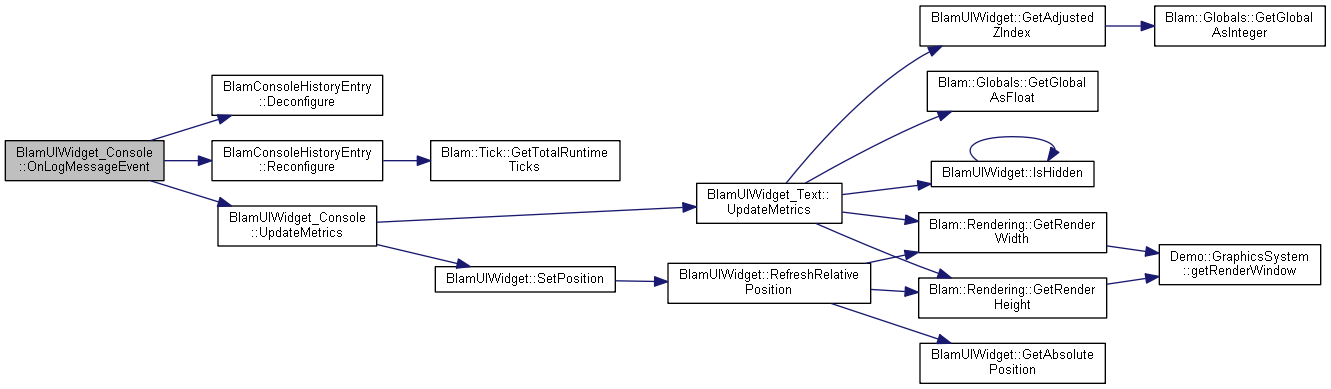

◆ OnLogMessageEvent()

void BlamUIWidget_Console::OnLogMessageEvent ( LogMessageEvent * event )

override

Here is the call graph for this function:

◆ OnTickEvent()

void BlamUIWidget_Console::OnTickEvent ( TickEvent * event )

override

Here is the call graph for this function:

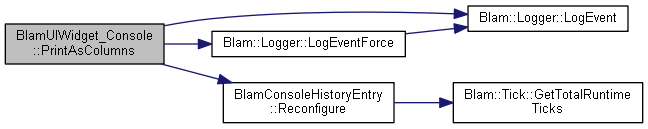

◆ PrintAsColumns() [1/2]

void BlamUIWidget_Console::PrintAsColumns ( std::vector< BlamLogMessage > items )

Displays a list of log messages within the console column display.

Each item will be displayed from the top-left to the bottom-right, occupying as many rows as needed to display all items unless the amount of items exceeds the number of rows - in which case as many items will be shown, and the remainder will not be displayed. The amount of items that can be shown depeneds on the amount of console lines and the maximum amount of columns.

This method can be used to display messages with color information. No other log message information is used.

Parameters

items - The items to display within the columns.

Here is the call graph for this function:

◆ PrintAsColumns() [2/2]

void BlamUIWidget_Console::PrintAsColumns ( std::vector< std::string > items )

Displays a list of strings within the console column display.

Each item will be displayed from the top-left to the bottom-right, occupying as many rows as needed to display all items unless the amount of items exceeds the number of rows - in which case as many items will be shown, and the remainder will not be displayed. The amount of items that can be shown depeneds on the amount of console lines and the maximum amount of columns.

Parameters

items - The items to display within the columns.

Here is the call graph for this function:

Here is the caller graph for this function:

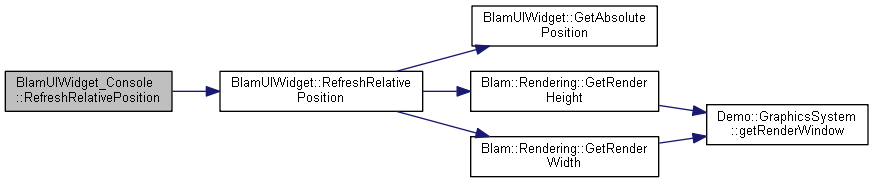

◆ RefreshRelativePosition()

void BlamUIWidget_Console::RefreshRelativePosition ( )

overridevirtual

Updates the relative position of the widget, relative to its parent.

If the widget has no parent, then it will refresh relative to the viewport instead.

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

◆ ShowImGuiPropertyEditor()

void BlamUIWidget_Console::ShowImGuiPropertyEditor ( )

overridevirtual

Displays an ImGUI-based property editor.

Used in conjunction with the UI Editor window.

Reimplemented from BlamUIWidget.

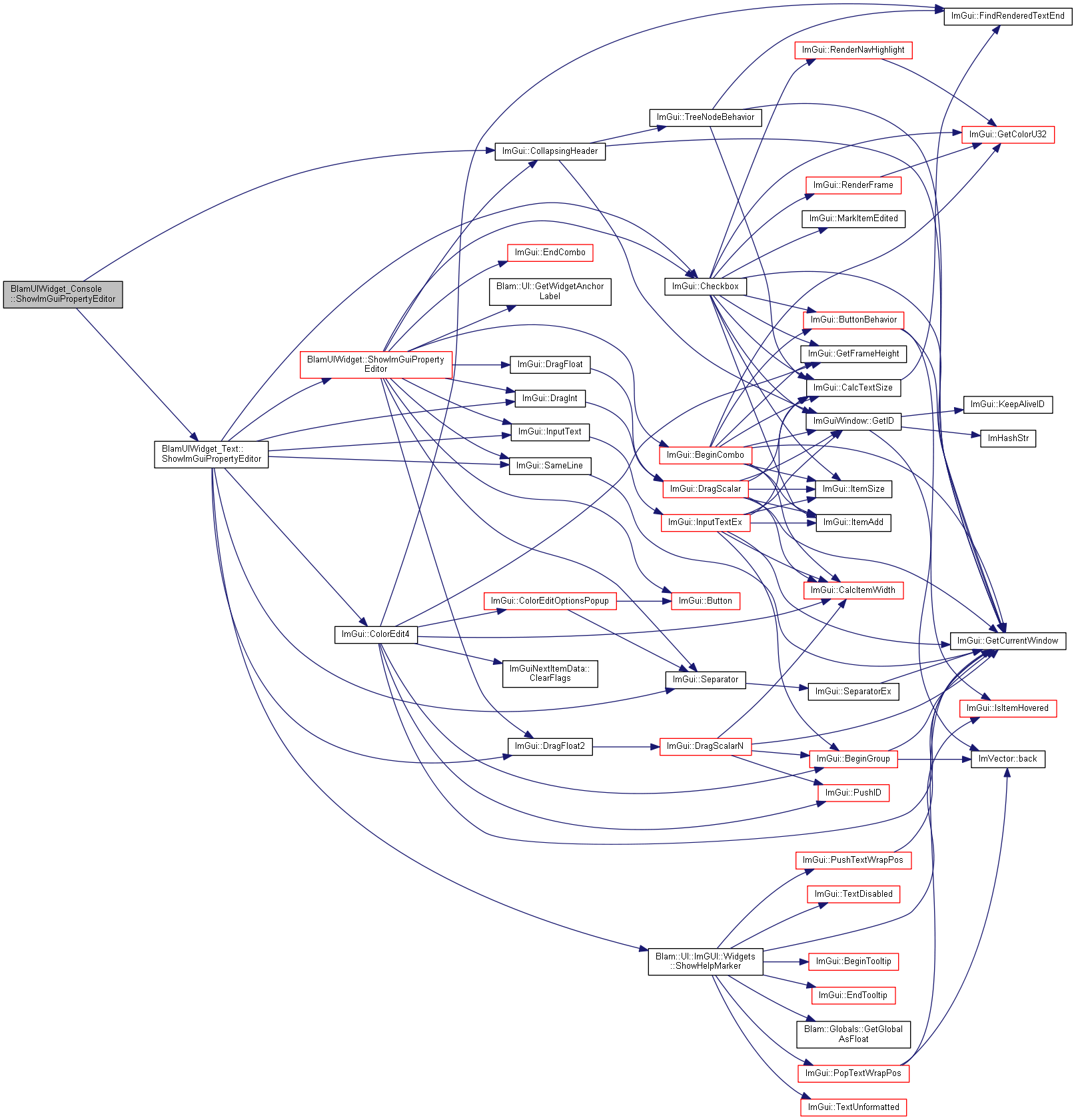

Here is the call graph for this function:

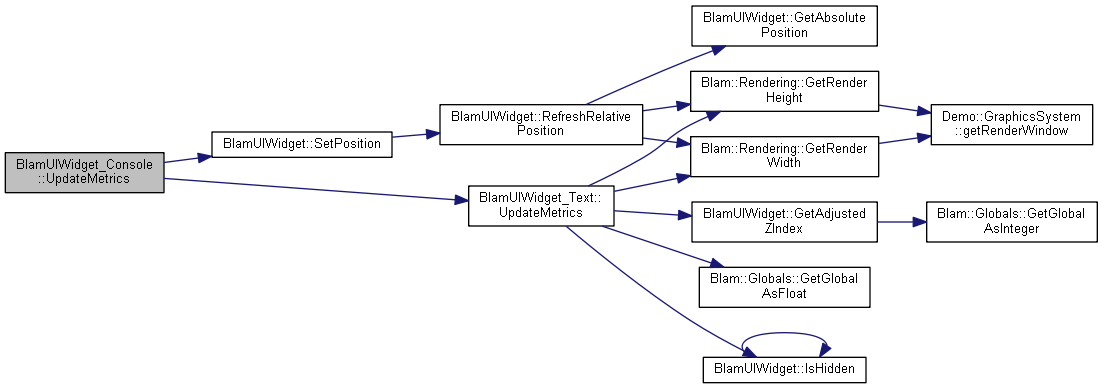

◆ UpdateMetrics()

void BlamUIWidget_Console::UpdateMetrics ( )

overridevirtual

Updates metrics for the widget.

The term "metrics" as used in this method is generally up to an individual widget class to decide. However, in most cases, it will include position, size, rotation, and color.

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

blam/components/ui/blam/widgets/advanced/console.h
blam/components/ui/blam/widgets/advanced/BlamUIWidget_Console.cpp
