ui.h File Reference

#include <Strings/components/resources/color/BlamColor.h>
#include <OGRE/Overlay/OgreTextAreaOverlayElement.h>
#include <OGRE/Overlay/OgreOverlayContainer.h>
#include <OGRE/Overlay/OgrePanelOverlayElement.h>
#include <OGRE/Overlay/OgreOverlay.h>
#include <OGRE/OgreManualObject2.h>
#include <OGRE/OgreSceneManager.h>
#include <vector>
#include <string>
#include "components/core/world/world.h"
#include "components/content/tags/classes/cui_screen.h"
#include "components/content/fonts/fonts.h"

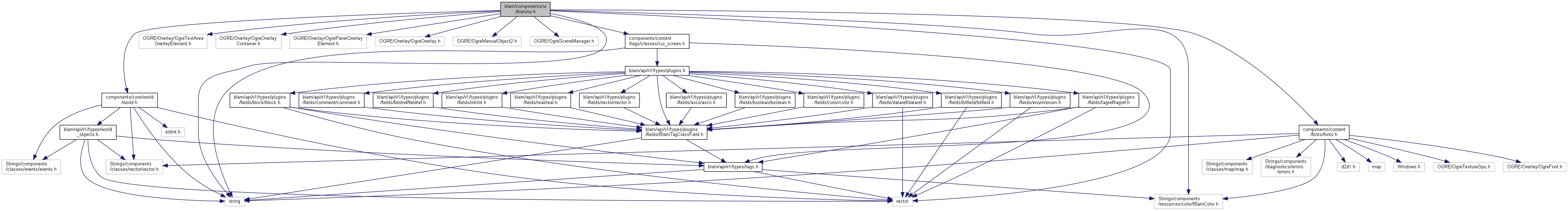

Include dependency graph for ui.h:

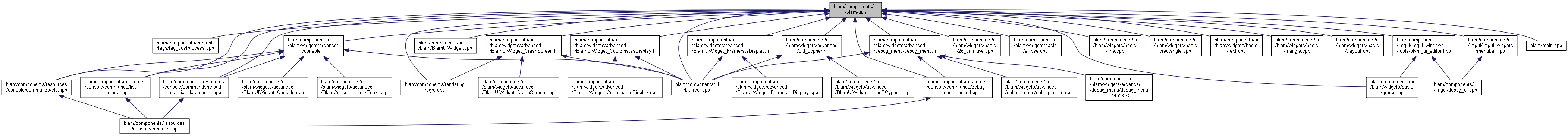

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BlamUIWidget
	Base class for a UI widget. More...
class	BlamUIWidget_Group
	Class representing a Group widget. More...
class	BlamUIWidget_VLayoutGroup
	Class representing a Vertical Layout Group widget. More...
class	BlamUIWidget_2DPrimitive
	Base class for 2D primitive widgets. More...
class	BlamUIWidget_BasicRectangle
	Class representing a basic rectangle widget. More...
class	BlamUIWidget_BasicEllipse
	Class representing a basic ellipse widget. More...
class	BlamUIWidget_BasicLine
	Class representing a basic line widget. More...
class	BlamUIWidget_BasicTriangle
	Class representing a basic triangle widget. More...
class	BlamUIWidget_Text
	Class representing a Text widget. More...

Namespaces
	Blam
	Namespace surrounding all major engine components.
	Blam::UI
	Namespace containing functions relating to the Blamite UI system.

Macros
#define	BLAM

Enumerations
enum	BlamWidgetAnchor : uint8_t {   BlamWidgetAnchor::TopCenter, BlamWidgetAnchor::Center, BlamWidgetAnchor::BottomCenter, BlamWidgetAnchor::TopLeft,   BlamWidgetAnchor::CenterLeft, BlamWidgetAnchor::BottomLeft, BlamWidgetAnchor::TopRight, BlamWidgetAnchor::CenterRight,   BlamWidgetAnchor::BottomRight, BlamWidgetAnchor::TopFill, BlamWidgetAnchor::LeftFill, BlamWidgetAnchor::RightFill,   BlamWidgetAnchor::BottomFill, BlamWidgetAnchor::Fill }
	Enumerator listing possible widget anchor positions. More...
enum	BlamWidgetType {   BlamWidgetType::Basic_Rectangle, BlamWidgetType::Basic_Ellipse, BlamWidgetType::Basic_Line, BlamWidgetType::Basic_Triangle,   BlamWidgetType::Text, BlamWidgetType::Group, BlamWidgetType::Group_VLayout, BlamWidgetType::Group_HLayout,   BlamWidgetType::Console, BlamWidgetType::UIDCypher, BlamWidgetType::FramerateDisplay, BlamWidgetType::CoordinatesDisplay,   BlamWidgetType::DebugMenu, BlamWidgetType::DebugMenuItem, BlamWidgetType::CrashScreen, BlamWidgetType::Unspecified }
	Enumerator listing possible UI widget types. More...

Functions
BLAM bool	Blam::UI::Initialize ()
	Initializes the UI system. More...
BLAM void	Blam::UI::Render ()
	Renders all UI to the screen. More...
BLAM void	Blam::UI::Shutdown ()
	Shuts down the UI system. More...
BLAM BlamUIWidget_Group *	Blam::UI::GetUIRoot ()
	Retrieves the root UI group widget. More...
BLAM std::string	Blam::UI::GetWidgetAnchorLabel (BlamWidgetAnchor anchor_position)
	Retrieves a string representation of a widget anchor position. More...
BLAM bool	Blam::UI::LoadFromCUIScreenTag (std::string tag_path, cui_screen *cusc_tag)
	Creates a new UI widget from a cui_screen tag. More...
BLAM BlamUIWidget_CrashScreen *	Blam::UI::GetCrashScreenWidget ()
	Retrieves the built-in crash screen widget. More...
BLAM BlamUIWidget_DebugMenu *	Blam::UI::GetDebugMenuWidget ()
	Retrieves the built-in debug menu widget. More...

Macro Definition Documentation

BLAM

#define BLAM

Enumeration Type Documentation

BlamWidgetAnchor

enum BlamWidgetAnchor : uint8_t

strong

Enumerator listing possible widget anchor positions.

In some special cases, this anchor may not always be respected.

Enumerator
TopCenter	The widget will be placed at the top-center of the screen.
Center	The widget will be placed at the center of the screen.
BottomCenter	The widget will be placed at the bottom-center of the screen.
TopLeft	The widget will be placed at the top-left of the screen.
CenterLeft	The widget will be placed at the center-left of the screen.
BottomLeft	The widget will be placed at the bottom-left of the screen.
TopRight	The widget will be placed at the top-right of the screen.
CenterRight	The widget will be placed at the center-right of the screen.
BottomRight	The widget will be placed at the bottom-right of the screen.
TopFill	The widget will fill the top of the screen, while height is left unchanged.
LeftFill	The widget will fill the left of the screen, while width is left unchanged.
RightFill	The widget will fill the right of the screen, while width is left unchanged.
BottomFill	The widget will fill the bottom of the screen, while height is left unchanged.
Fill	The widget will fill the entire screen.

BlamWidgetType

enum BlamWidgetType

strong

Enumerator listing possible UI widget types.

Todo:

All of the widgets listed as "special widgets" should eventually be moved to either an engine extension, or to tags. In either case, they shouldn't be baked into the UI system at this fundamental level - we need a way for custom widgets to work with this.

Enumerator
Basic_Rectangle	A basic filled or outline rectangle.
Basic_Ellipse	A basic filled or outline ellipse.
Basic_Line	A basic line.
Basic_Triangle	A basic filled or outline triangle.
Text	A text object, used to show text on-screen.
Group	A group widget, which can be used to contain any number of other widgets.
Group_VLayout	A group widget which displays all items in a vertical list.
Group_HLayout	A group widget which displays all items in a horizontal list.
Console	Special widget. Used for the in-game console.
UIDCypher	Special widget. Used for the user ID cypher.
FramerateDisplay	Special widget. Used for the framerate display.
CoordinatesDisplay	Special widget. Used for the coordinates display.
DebugMenu	Special widget. Used for the in-game debug menu.
DebugMenuItem	Special widget. Represents an item within the debug menu.
CrashScreen	Special widget. Used for the in-game crash screen.
Unspecified	Indicates the widget is of an unspecified type. Will only appear when a widget is improperly constructed.
