BlamUIWidget_Text Class Reference

Class representing a Text widget. More...

#include <ui.h>

Inheritance diagram for BlamUIWidget_Text:

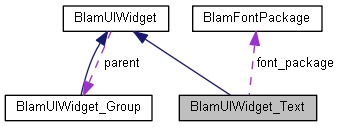

Collaboration diagram for BlamUIWidget_Text:

Public Member Functions
	BlamUIWidget_Text (BlamUIWidget_Group *_parent)
	~BlamUIWidget_Text ()
void	Draw () override
	Draws the widget on-screen. More...
void	ShowImGuiPropertyEditor () override
	Displays an ImGUI-based property editor. More...
void	UpdateMetrics () override
	Updates metrics for the widget. More...
void	SetHidden (bool new_hidden) override
	Sets the hidden state of the widget. More...
void	RebuildTextObject ()
	Regenerates the text object. More...
Public Member Functions inherited from BlamUIWidget
	BlamUIWidget (BlamWidgetType type)
	Constructs a new UI widget. More...
	BlamUIWidget (BlamWidgetType type, BlamUIWidget_Group *_parent)
	Constructs a new UI widget. More...
virtual	~BlamUIWidget ()
BlamWidgetType	GetType ()
	Retrieves the type of this widget. More...
virtual void	RefreshRelativePosition ()
	Updates the relative position of the widget, relative to its parent. More...
void	RefreshRelativePosition (int viewport_width, int viewport_height, BlamVector2 initial_position)
	Updates the relative position of the widget. More...
void	SetSize (BlamVector2 new_size)
	Sets the size of the widget. More...
virtual void	SetPosition (BlamVector2 new_position)
	Sets the position of the widget. More...
void	SetRotation (float new_rotation)
	Sets the rotation of the widget. More...
void	SetAnchorPosition (BlamWidgetAnchor new_anchor_position)
	Sets the anchor position of the widget. More...
void	MarkForUpdate ()
	Marks the widget as needing to be updated on the next draw call. More...
BlamVector2	GetAbsolutePosition ()
	Retrieves the absolute position of the widget. More...
BlamWidgetAnchor	GetAnchorPosition ()
	Retrieves the anchor position of the widget. More...
bool	IsHidden ()
	Checks whether or not the widget is hidden. More...

Public Attributes
bool	auto_scale_shadow = true
	Whether or not to automatically scale the text shadow based on text size. More...
int	character_height = 16
	The line height of this text widget, in pixels. More...
BlamVector2	shadow_offset = { 1, 1 }
	The offset of the text shadow, in pixels. More...
BlamColor	color = BlamColor(255, 255, 255)
	The text foreground color. More...
BlamColor	shadow_color = BlamColor(0, 0, 0)
	The text shadow color. More...
std::string	font_name = "fixedsys"
	The name of the font package to use for this text widget. More...
BlamFontPackage *	font_package = nullptr
	The font package being used for this text widget. More...
std::string	text = "blam!"
	The text to display within this text widget. More...
Public Attributes inherited from BlamUIWidget
std::string	display_name = "unnamed"
	The display name of the widget. More...
std::string	description = ""
	An optional description of the widget. More...
BlamVector2	position = { 0, 0 }
	The position of the widget, relative to its parent. More...
BlamVector2	size = { 100, 100 }
	The size of the widget, relative to its parent. More...
float	rotation = 0.0f
	The rotation of the widget, in degrees. More...
int	z_index = 0
	The Z index of the widget, where higher Z orders are drawn on top. More...
float	z_size = 1.0f
	The Z size of the widget. Mostly unused. More...
bool	auto_update = false
	Whether or not the widget should always update every frame. More...
Ogre::HlmsDatablock *	material = nullptr
	The datablock used by the widget, if applicable. More...
BlamUIWidget_Group *	parent = nullptr
	The parent group of this widget, if applicable. More...
bool	ignore_layout = false
	Whether or not this widget should ignore any layout positioning. More...
bool	hide_in_layout = false
	Whether or not this widget should be hidden within its layout. More...
bool	ignore_scale_factor = false
	Whether or not this widget should ignore the UI scale factor settings. More...

Additional Inherited Members
Protected Member Functions inherited from BlamUIWidget
int	GetAdjustedZIndex ()
	Retrieves the adjusted Z-index of the widget. More...
Protected Attributes inherited from BlamUIWidget
BlamVector2	position_absolute = { 0, 0 }
	The absolute position of the widget on-screen. More...
BlamVector2	size_absolute = { 100, 100 }
	The absolute size of the widget on-screen. More...
bool	update = false
	Whether or not the widget needs to be updated before the next draw call. More...
bool	hidden = false
	Whether or not the widget is hidden. More...

Detailed Description

Class representing a Text widget.

This widget allows for text to be displayed on-screen. It supports all font packages that the engine has available, and can be freely sized and positioned. It also supports multi-line text and includes a simple drop-shadow out of the box.

Constructor & Destructor Documentation

BlamUIWidget_Text()

BlamUIWidget_Text::BlamUIWidget_Text

(

BlamUIWidget_Group *

_parent

)

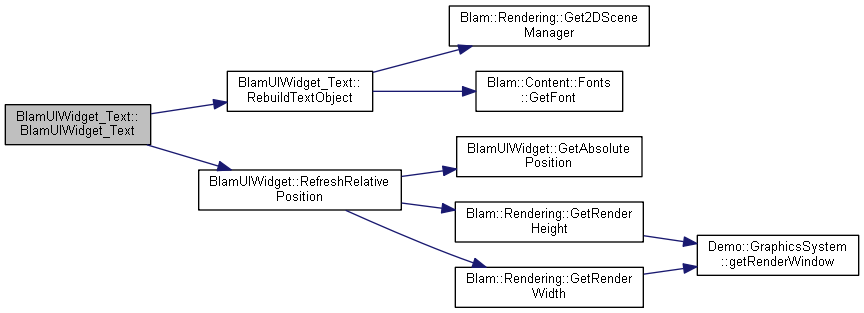

Here is the call graph for this function:

~BlamUIWidget_Text()

BlamUIWidget_Text::~BlamUIWidget_Text

(

)

Here is the call graph for this function:

Member Function Documentation

Draw()

void BlamUIWidget_Text::Draw ( )

overridevirtual

Draws the widget on-screen.

Reimplemented from BlamUIWidget.

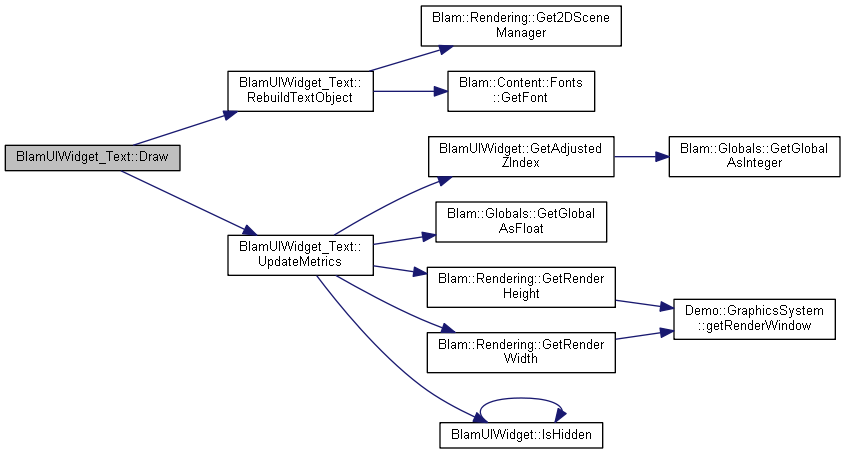

Here is the call graph for this function:

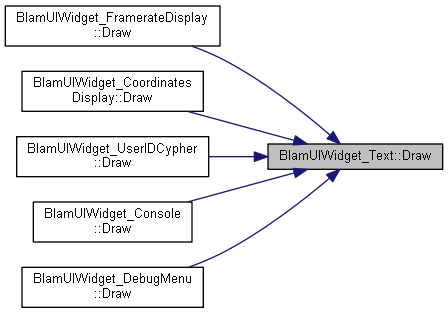

Here is the caller graph for this function:

RebuildTextObject()

void BlamUIWidget_Text::RebuildTextObject

(

)

Regenerates the text object.

This takes care of destroying any existing objects used, and generating a new manual object, scene node, and datablocks.

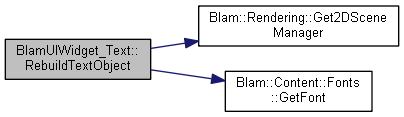

Here is the call graph for this function:

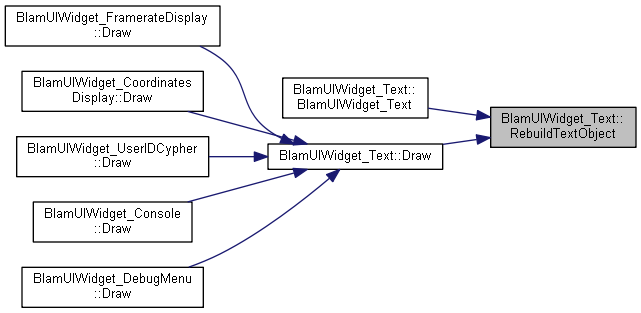

Here is the caller graph for this function:

SetHidden()

void BlamUIWidget_Text::SetHidden ( bool  new_hidden )

overridevirtual

Sets the hidden state of the widget.

Parameters

new_hidden

- Whether or not the widget should be hidden.

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

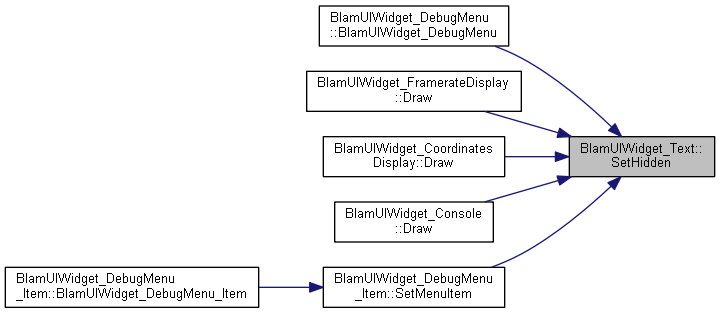

Here is the caller graph for this function:

ShowImGuiPropertyEditor()

void BlamUIWidget_Text::ShowImGuiPropertyEditor ( )

overridevirtual

Displays an ImGUI-based property editor.

Used in conjunction with the UI Editor window.

Reimplemented from BlamUIWidget.

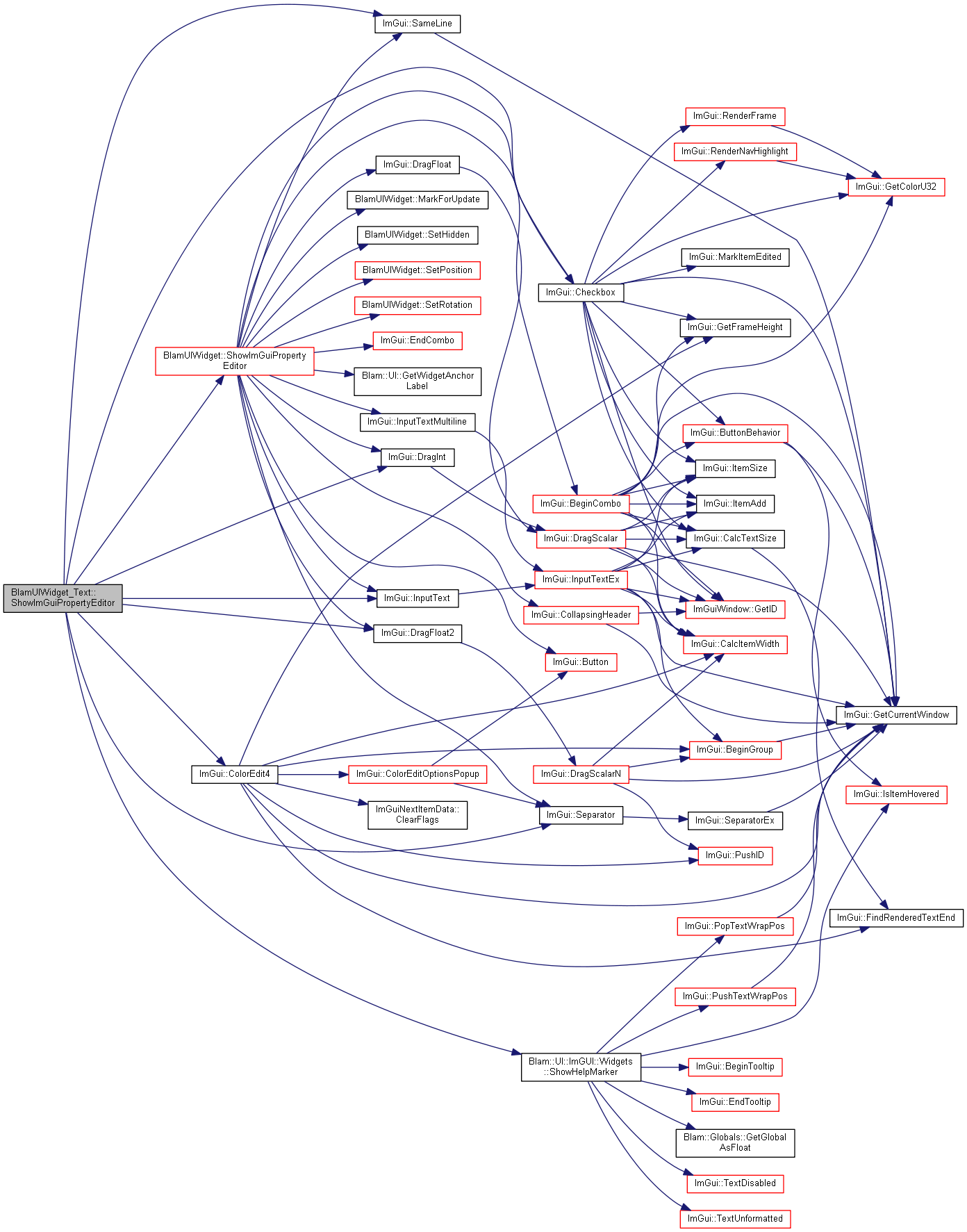

Here is the call graph for this function:

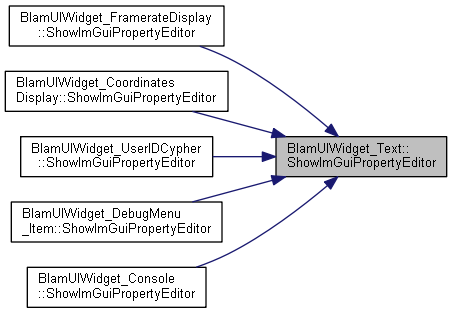

Here is the caller graph for this function:

UpdateMetrics()

void BlamUIWidget_Text::UpdateMetrics ( )

overridevirtual

Updates metrics for the widget.

The term "metrics" as used in this method is generally up to an individual widget class to decide. However, in most cases, it will include position, size, rotation, and color.

Reimplemented from BlamUIWidget.

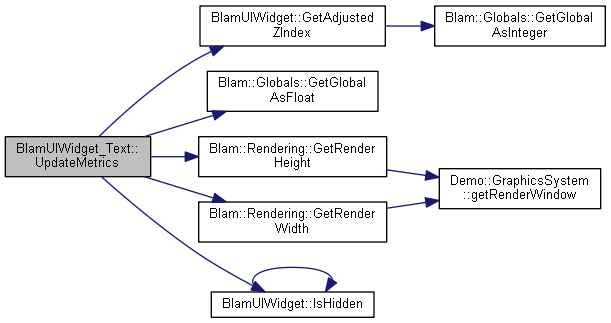

Here is the call graph for this function:

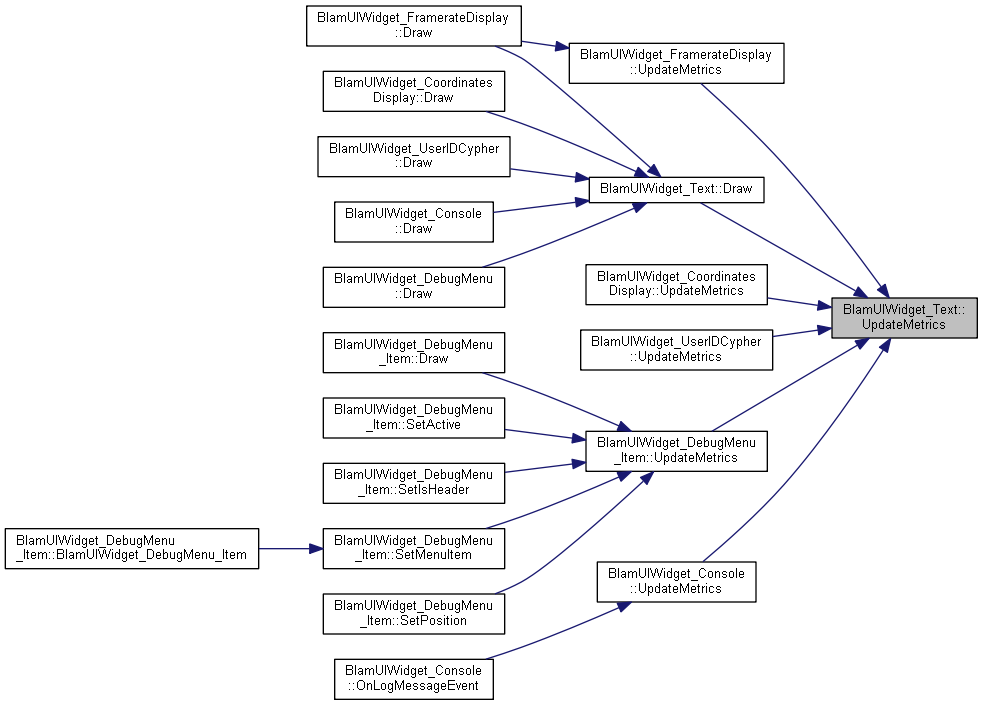

Here is the caller graph for this function:

Member Data Documentation

auto_scale_shadow

bool BlamUIWidget_Text::auto_scale_shadow = true

Whether or not to automatically scale the text shadow based on text size.

character_height

int BlamUIWidget_Text::character_height = 16

The line height of this text widget, in pixels.

color

BlamColor BlamUIWidget_Text::color = BlamColor(255, 255, 255)

The text foreground color.

font_name

std::string BlamUIWidget_Text::font_name = "fixedsys"

The name of the font package to use for this text widget.

font_package

BlamFontPackage* BlamUIWidget_Text::font_package = nullptr

The font package being used for this text widget.

shadow_color

BlamColor BlamUIWidget_Text::shadow_color = BlamColor(0, 0, 0)

The text shadow color.

shadow_offset

BlamVector2 BlamUIWidget_Text::shadow_offset = { 1, 1 }

The offset of the text shadow, in pixels.

text

std::string BlamUIWidget_Text::text = "blam!"

The text to display within this text widget.

---

The documentation for this class was generated from the following files:

• blam/components/ui/blam/ui.h
• blam/components/ui/blam/widgets/basic/text.cpp
