UI widget for the user ID cypher display. More...

#include <uid_cypher.h>

Inheritance diagram for BlamUIWidget_UserIDCypher:

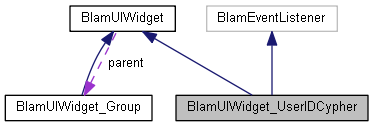

Collaboration diagram for BlamUIWidget_UserIDCypher:

Public Member Functions
	BlamUIWidget_UserIDCypher (BlamUIWidget_Group *_parent)
	Constructs a new user ID cypher widget. More...

	~BlamUIWidget_UserIDCypher ()
	Destroys the user ID cypher widget. More...

void	Draw () override
	Draws the widget on-screen. More...

void	ShowImGuiPropertyEditor () override
	Displays an ImGUI-based property editor. More...

void	UpdateMetrics () override
	Updates metrics for the widget. More...

void	RefreshRelativePosition () override
	Updates the relative position of the widget, relative to its parent. More...

void	OnTickEvent (TickEvent *event) override

Public Member Functions inherited from BlamUIWidget
	BlamUIWidget (BlamWidgetType type)
	Constructs a new UI widget. More...

	BlamUIWidget (BlamWidgetType type, BlamUIWidget_Group *_parent)
	Constructs a new UI widget. More...

virtual	~BlamUIWidget ()

BlamWidgetType	GetType ()
	Retrieves the type of this widget. More...

void	RefreshRelativePosition (int viewport_width, int viewport_height, BlamVector2 initial_position)
	Updates the relative position of the widget. More...

void	SetSize (BlamVector2 new_size)
	Sets the size of the widget. More...

virtual void	SetPosition (BlamVector2 new_position)
	Sets the position of the widget. More...

void	SetRotation (float new_rotation)
	Sets the rotation of the widget. More...

void	SetAnchorPosition (BlamWidgetAnchor new_anchor_position)
	Sets the anchor position of the widget. More...

void	MarkForUpdate ()
	Marks the widget as needing to be updated on the next draw call. More...

BlamVector2	GetAbsolutePosition ()
	Retrieves the absolute position of the widget. More...

BlamWidgetAnchor	GetAnchorPosition ()
	Retrieves the anchor position of the widget. More...

virtual void	SetHidden (bool new_hidden)
	Sets the hidden state of the widget. More...

bool	IsHidden ()
	Checks whether or not the widget is hidden. More...

Additional Inherited Members
Public Attributes inherited from BlamUIWidget
std::string	display_name = "unnamed"
	The display name of the widget. More...

std::string	description = ""
	An optional description of the widget. More...

BlamVector2	position = { 0, 0 }
	The position of the widget, relative to its parent. More...

BlamVector2	size = { 100, 100 }
	The size of the widget, relative to its parent. More...

float	rotation = 0.0f
	The rotation of the widget, in degrees. More...

int	z_index = 0
	The Z index of the widget, where higher Z orders are drawn on top. More...

float	z_size = 1.0f
	The Z size of the widget. Mostly unused. More...

bool	auto_update = false
	Whether or not the widget should always update every frame. More...

Ogre::HlmsDatablock *	material = nullptr
	The datablock used by the widget, if applicable. More...

BlamUIWidget_Group *	parent = nullptr
	The parent group of this widget, if applicable. More...

bool	ignore_layout = false
	Whether or not this widget should ignore any layout positioning. More...

bool	hide_in_layout = false
	Whether or not this widget should be hidden within its layout. More...

bool	ignore_scale_factor = false
	Whether or not this widget should ignore the UI scale factor settings. More...

Protected Member Functions inherited from BlamUIWidget
int	GetAdjustedZIndex ()
	Retrieves the adjusted Z-index of the widget. More...

Protected Attributes inherited from BlamUIWidget
BlamVector2	position_absolute = { 0, 0 }
	The absolute position of the widget on-screen. More...

BlamVector2	size_absolute = { 100, 100 }
	The absolute size of the widget on-screen. More...

bool	update = false
	Whether or not the widget needs to be updated before the next draw call. More...

bool	hidden = false
	Whether or not the widget is hidden. More...

Detailed Description

UI widget for the user ID cypher display.

This will display a pair of two numbers that, when used together, can be used to identify a player from any footage or screenshot of a pre-release build of the engine. This can be used to ensure that in cases where we don't want certain content leaked, we can identify any potential leaker source.

Todo:: This cypher expects a "user ID" value - which currently does not get used. For the time being, the cypher will operate with a user ID of 0 - causing both numbers to be identical. As soon as we have some kind of system for user login/authentication, this should be updated to use that value instead.

Constructor & Destructor Documentation

◆ BlamUIWidget_UserIDCypher()

BlamUIWidget_UserIDCypher::BlamUIWidget_UserIDCypher ( BlamUIWidget_Group * _parent )

Constructs a new user ID cypher widget.

Parameters

parent - The parent of this widget.

Here is the call graph for this function:

◆ ~BlamUIWidget_UserIDCypher()

BlamUIWidget_UserIDCypher::~BlamUIWidget_UserIDCypher ( )

Destroys the user ID cypher widget.

Will unregister the listener and release any memory.

Member Function Documentation

◆ Draw()

void BlamUIWidget_UserIDCypher::Draw ( )

overridevirtual

Draws the widget on-screen.

Reimplemented from BlamUIWidget.

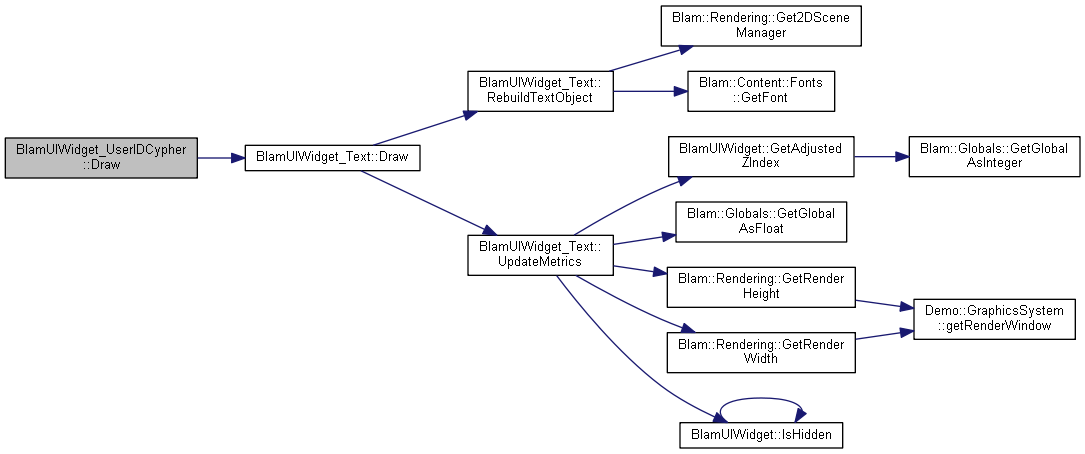

Here is the call graph for this function:

◆ OnTickEvent()

void BlamUIWidget_UserIDCypher::OnTickEvent ( TickEvent * event )

override

Here is the call graph for this function:

◆ RefreshRelativePosition()

void BlamUIWidget_UserIDCypher::RefreshRelativePosition ( )

overridevirtual

Updates the relative position of the widget, relative to its parent.

If the widget has no parent, then it will refresh relative to the viewport instead.

Reimplemented from BlamUIWidget.

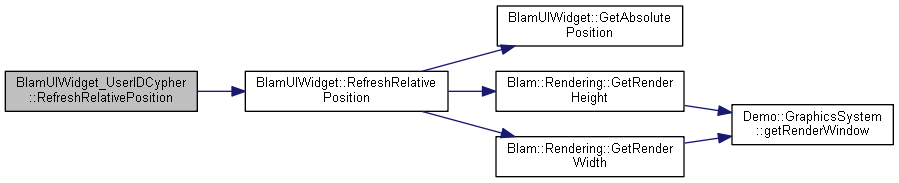

Here is the call graph for this function:

◆ ShowImGuiPropertyEditor()

void BlamUIWidget_UserIDCypher::ShowImGuiPropertyEditor ( )

overridevirtual

Displays an ImGUI-based property editor.

Used in conjunction with the UI Editor window.

Reimplemented from BlamUIWidget.

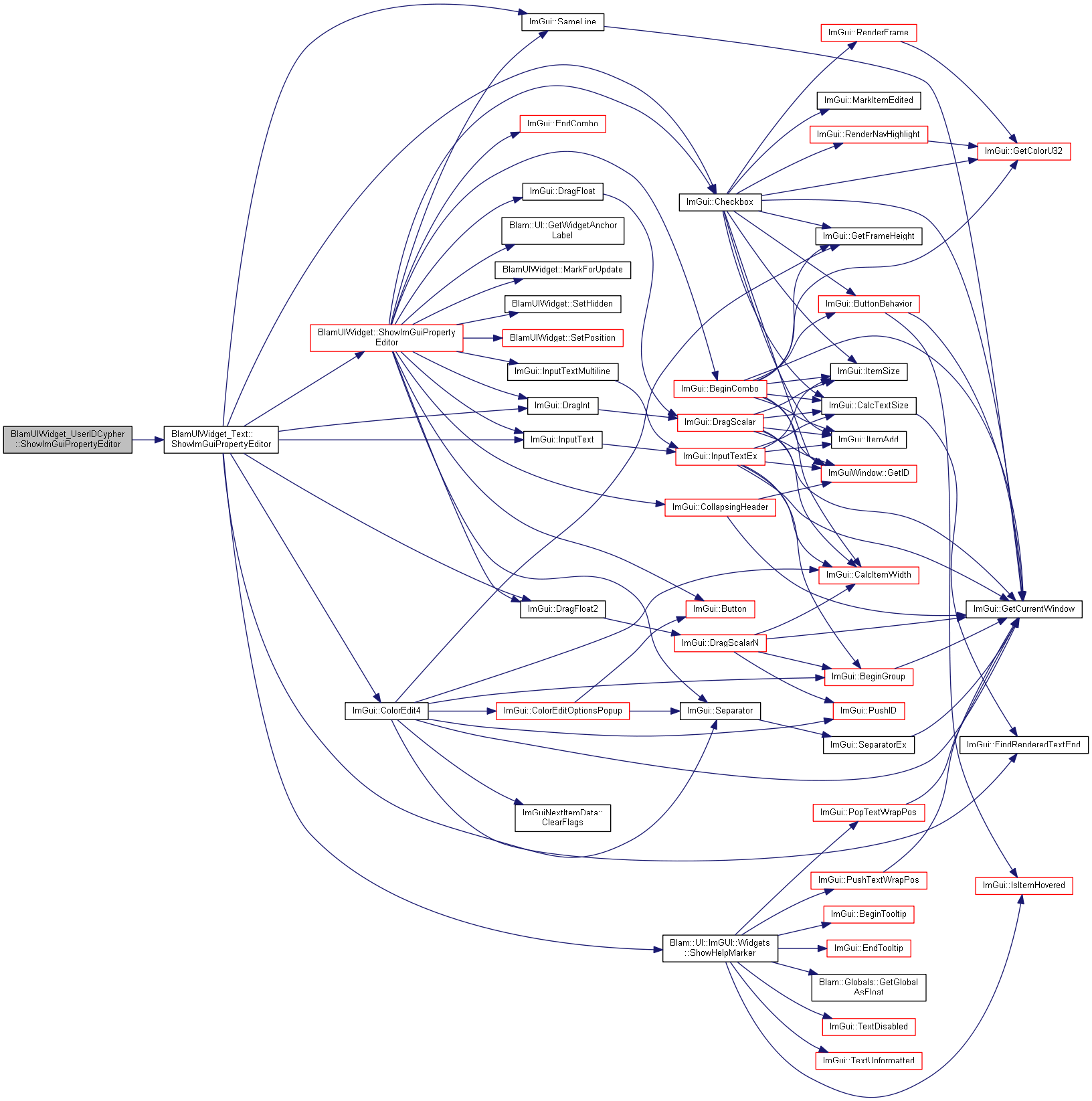

Here is the call graph for this function:

◆ UpdateMetrics()

void BlamUIWidget_UserIDCypher::UpdateMetrics ( )

overridevirtual

Updates metrics for the widget.

The term "metrics" as used in this method is generally up to an individual widget class to decide. However, in most cases, it will include position, size, rotation, and color.

Reimplemented from BlamUIWidget.

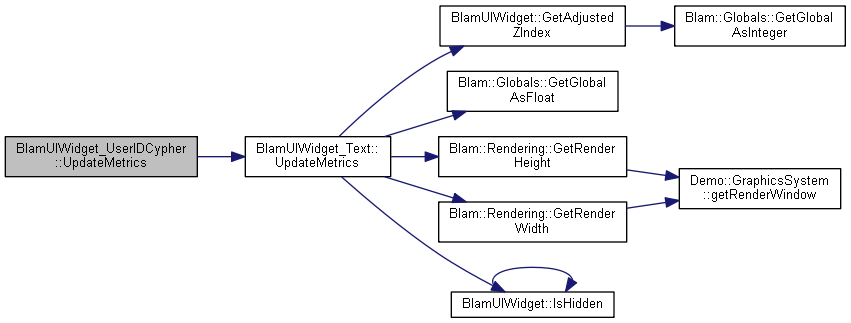

Here is the call graph for this function:

The documentation for this class was generated from the following files:

blam/components/ui/blam/widgets/advanced/uid_cypher.h
blam/components/ui/blam/widgets/advanced/BlamUIWidget_UserIDCypher.cpp
