imgui.h File Reference

#include <SDL2/SDL_events.h>
#include <map>
#include "components/diagnostics/errors/errors.h"
#include "components/3rdparty/imgui/imgui.h"

Include dependency graph for imgui.h:

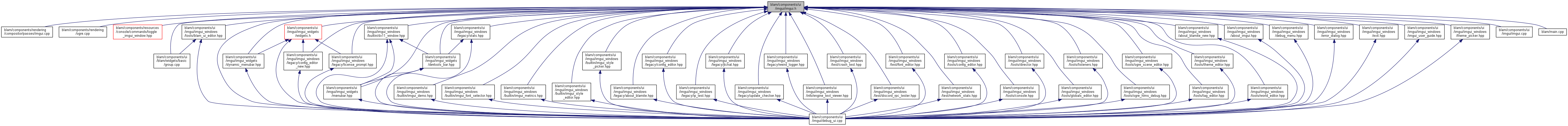

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	BlamImGuiWindow
	Class representing an ImGUI window. More...

Namespaces
	Blam
	Namespace surrounding all major engine components.
	Blam::UI
	Namespace containing functions relating to the Blamite UI system.
	Blam::UI::ImGUI
	Namespace for anything related to ImGUI.

Macros
#define	duigvs(x)   Blam::UI::ImGUI::GetVisibility(x)
	Macro for Blam::DebugUI::GetVisibility(). More...
#define	BLAM

Functions
BLAM BlamResult	Blam::UI::ImGUI::Initialize ()
	Initialize ImGUI. More...
BLAM void	Blam::UI::ImGUI::RenderFrame ()
	Renders ImGUI to the application window. More...
BLAM void	Blam::UI::ImGUI::EndFrame ()
	Ends ImGUI drawing for the current frame. More...
BLAM void	Blam::UI::ImGUI::Shutdown ()
	Shuts down ImGUI and cleans up any data related to it. More...
BLAM void	Blam::UI::ImGUI::ProcessSDLEvent (SDL_Event event)
	Passes an SDL event to ImGUI for proper handling. More...
BLAM void	Blam::UI::ImGUI::BuildWindows ()
	Initializes the ImGUI draw list. More...
BLAM void	Blam::UI::ImGUI::RenderWindows ()
	Renders all ImGUI data. More...
BLAM void	Blam::UI::ImGUI::CleanupWindows ()
	Cleans up any data used by the ImGUI draw list. More...
BLAM bool *	Blam::UI::ImGUI::GetVisibility (std::string key)
	Retrieves the visibility of the specified draw list item. More...
BLAM void	Blam::UI::ImGUI::AddToWindowList (std::string key, BlamImGuiWindow *group)
	Adds a new item to the ImGUI draw list. More...
BLAM BlamImGuiWindow *	Blam::UI::ImGUI::GetImGuiWindow (std::string key)
	Retrieves a drawing group with the specified ID. More...
BLAM void	Blam::UI::ImGUI::ShowErrorDialog (const char *title, const char *message)
	Shows a simple error dialog created using ImGUI. More...
BLAM std::map< std::string, BlamImGuiWindow * > *	Blam::UI::ImGUI::GetWindowList ()
	Retrieves the current ImGUI drawing list. More...

Macro Definition Documentation

BLAM

#define BLAM

duigvs

#define duigvs

(

x

)

Blam::UI::ImGUI::GetVisibility(x)

Macro for Blam::DebugUI::GetVisibility().

See #Blam::DebugUI::GetVisibility for details.

Note

Ideally, we would keep these heavily abbreviated macros to a minimum. This (and a few others) are made as short as possible due to their frequent use, as having the full names would cause a lot of ugly-looking code.

See also

Blam::DebugUI::GetVisibility()
