materials.cpp File Reference

#include "components/rendering/rendering.h"
#include "api/v1/types/tags/classes/material.h"
#include "components/resources/engine_globals/globals.h"
#include "components/rendering/bgfx/shader_flags.h"
#include <chrono>

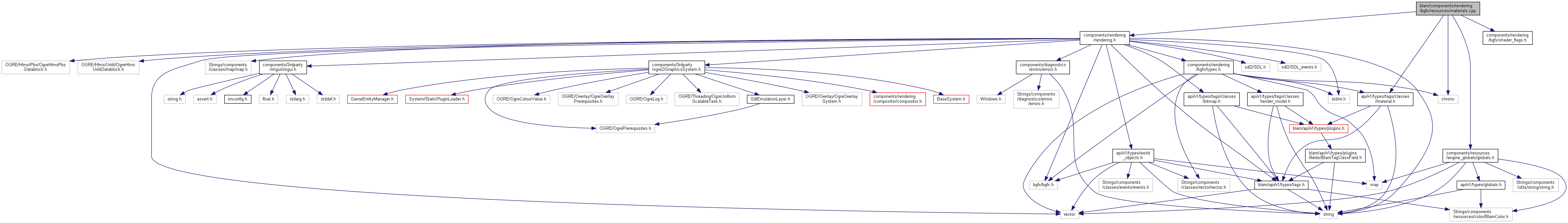

Include dependency graph for materials.cpp:

Classes
struct	pbr_uniform_data
struct	unlit_uniform_data

Macros
#define	PBR_SLOT_PARAMS_0   0
#define	PBR_SLOT_PARAMS_1   1
#define	PBR_SLOT_PARAMS_2   2
#define	PBR_SLOT_PARAMS_3   3
#define	PBR_SLOT_CLEAR_COAT   4
#define	PBR_SLOT_DETAIL_PARAMS   5
#define	PBR_SLOT_UV_ALBEDO   6
#define	PBR_SLOT_UV_NORMAL   7
#define	PBR_SLOT_UV_METAL_ROUGH   8
#define	PBR_SLOT_UV_OCCLUSION   9
#define	PBR_SLOT_UV_EMISSIVE   10
#define	PBR_SLOT_UV_SPECULAR   11
#define	PBR_SLOT_UV_DETAIL_0   12
#define	PBR_SLOT_UV_DETAIL_1   13
#define	PBR_SLOT_UV_DETAIL_2   14
#define	PBR_SLOT_UV_DETAIL_3   15
#define	PBR_SLOT_UV_DETAIL_NORM_0   16
#define	PBR_SLOT_UV_DETAIL_NORM_1   17
#define	PBR_SLOT_UV_DETAIL_NORM_2   18
#define	PBR_SLOT_UV_DETAIL_NORM_3   19
#define	PBR_SLOT_UV_DETAIL_WEIGHT   20
#define	SET_PACKED_SLOT(slot_idx, x_, y_, z_, w_)

Functions
material_filter_modes	resolve_min_filter (material_filter_modes material_filter, bitmap *bitmap_tag)
	Resolves the effective minification filter mode by combining the material's requested filter mode with the bitmap tag's filter mode and force flag. More...
material_filter_modes	resolve_mag_filter (material_filter_modes material_filter, bitmap *bitmap_tag)
	Resolves the effective magnification filter mode using the same inheritance rules as resolve_min_filter, but consulting the magnification-specific tag fields and force flag. More...
material_filter_modes	resolve_mip_filter (material_filter_modes material_filter, bitmap *bitmap_tag)
	Resolves the effective mip filter mode using the same inheritance rules as resolve_min_filter, but consulting the mip-specific tag fields and force flag. More...
uint64_t	build_sampler_flags (material_filter_modes min_filter, material_filter_modes mag_filter, material_filter_modes mip_filter, material_wrap_modes wrap_x, material_wrap_modes wrap_y, material_wrap_modes wrap_z)
	Computes the bgfx sampler flag bits that correspond to the requested min/mag/mip filter modes and wrap modes for one texture. More...
uint64_t	compute_sampler_flags_for_texture (material_filter_modes material_min, material_filter_modes material_mag, material_filter_modes material_mip, material_wrap_modes wrap_x, material_wrap_modes wrap_y, material_wrap_modes wrap_z, bitmap *bitmap_tag)
	Computes the final bgfx sampler flags for one material texture binding. More...

Macro Definition Documentation

PBR_SLOT_CLEAR_COAT

#define PBR_SLOT_CLEAR_COAT   4

PBR_SLOT_DETAIL_PARAMS

#define PBR_SLOT_DETAIL_PARAMS   5

PBR_SLOT_PARAMS_0

#define PBR_SLOT_PARAMS_0   0

PBR_SLOT_PARAMS_1

#define PBR_SLOT_PARAMS_1   1

PBR_SLOT_PARAMS_2

#define PBR_SLOT_PARAMS_2   2

PBR_SLOT_PARAMS_3

#define PBR_SLOT_PARAMS_3   3

PBR_SLOT_UV_ALBEDO

#define PBR_SLOT_UV_ALBEDO   6

PBR_SLOT_UV_DETAIL_0

#define PBR_SLOT_UV_DETAIL_0   12

PBR_SLOT_UV_DETAIL_1

#define PBR_SLOT_UV_DETAIL_1   13

PBR_SLOT_UV_DETAIL_2

#define PBR_SLOT_UV_DETAIL_2   14

PBR_SLOT_UV_DETAIL_3

#define PBR_SLOT_UV_DETAIL_3   15

PBR_SLOT_UV_DETAIL_NORM_0

#define PBR_SLOT_UV_DETAIL_NORM_0   16

PBR_SLOT_UV_DETAIL_NORM_1

#define PBR_SLOT_UV_DETAIL_NORM_1   17

PBR_SLOT_UV_DETAIL_NORM_2

#define PBR_SLOT_UV_DETAIL_NORM_2   18

PBR_SLOT_UV_DETAIL_NORM_3

#define PBR_SLOT_UV_DETAIL_NORM_3   19

PBR_SLOT_UV_DETAIL_WEIGHT

#define PBR_SLOT_UV_DETAIL_WEIGHT   20

PBR_SLOT_UV_EMISSIVE

#define PBR_SLOT_UV_EMISSIVE   10

PBR_SLOT_UV_METAL_ROUGH

#define PBR_SLOT_UV_METAL_ROUGH   8

PBR_SLOT_UV_NORMAL

#define PBR_SLOT_UV_NORMAL   7

PBR_SLOT_UV_OCCLUSION

#define PBR_SLOT_UV_OCCLUSION   9

PBR_SLOT_UV_SPECULAR

#define PBR_SLOT_UV_SPECULAR   11

SET_PACKED_SLOT

#define SET_PACKED_SLOT	(		slot_idx,
			x_,
			y_,
			z_,
			w_
	)

Value:

        state->packed_pbr_data[(slot_idx) * 4 + 0] = (x_); \
        state->packed_pbr_data[(slot_idx) * 4 + 1] = (y_); \
        state->packed_pbr_data[(slot_idx) * 4 + 2] = (z_); \
        state->packed_pbr_data[(slot_idx) * 4 + 3] = (w_)

Function Documentation

build_sampler_flags()

uint64_t build_sampler_flags	(	material_filter_modes	min_filter,
		material_filter_modes	mag_filter,
		material_filter_modes	mip_filter,
		material_wrap_modes	wrap_x,
		material_wrap_modes	wrap_y,
		material_wrap_modes	wrap_z
	)

Computes the bgfx sampler flag bits that correspond to the requested min/mag/mip filter modes and wrap modes for one texture.

The output is the bitwise-OR of bgfx's BGFX_SAMPLER_* macros, suitable for passing to bgfx::setTexture's flags parameter. Filter modes that match bgfx's defaults (linear filtering, wrap addressing) contribute no bits.

"none" filter is treated as point filter since bgfx doesn't have a true "no filter" concept and point is the closest equivalent.

Parameters

min_filter	- The resolved minification filter mode.
mag_filter	- The resolved magnification filter mode.
mip_filter	- The resolved mip filter mode.
wrap_x	- Wrap mode for the U/X texture coordinate.
wrap_y	- Wrap mode for the V/Y texture coordinate.
wrap_z	- Wrap mode for the W/Z texture coordinate (used by 3D/cube textures).

Returns

A uint64_t containing the bitwise-OR of all applicable BGFX_SAMPLER_* bits.

Author

Claude (Opus 4.7)

Here is the caller graph for this function:

compute_sampler_flags_for_texture()

uint64_t compute_sampler_flags_for_texture	(	material_filter_modes	material_min,
		material_filter_modes	material_mag,
		material_filter_modes	material_mip,
		material_wrap_modes	wrap_x,
		material_wrap_modes	wrap_y,
		material_wrap_modes	wrap_z,
		bitmap *	bitmap_tag
	)

Computes the final bgfx sampler flags for one material texture binding.

Resolves the inherit_from_bitmap and force_*_filtering_mode logic between the material's per-texture sampler settings and the bitmap tag's settings, then maps the resolved filter and wrap modes to bgfx flag bits.

Parameters

material_min	- The material's requested minification filter mode.
material_mag	- The material's requested magnification filter mode.
material_mip	- The material's requested mip filter mode.
wrap_x	- Wrap mode for the U/X texture coordinate.
wrap_y	- Wrap mode for the V/Y texture coordinate.
wrap_z	- Wrap mode for the W/Z texture coordinate.
bitmap_tag	- The bitmap being sampled (may be nullptr if not resolved).

Returns

The complete sampler flag set for bgfx::setTexture.

Author

Claude (Opus 4.7)

Here is the call graph for this function:

resolve_mag_filter()

material_filter_modes resolve_mag_filter	(	material_filter_modes	material_filter,
		bitmap *	bitmap_tag
	)

Resolves the effective magnification filter mode using the same inheritance rules as resolve_min_filter, but consulting the magnification-specific tag fields and force flag.

Parameters

material_filter	- The material's per-texture filter mode setting.
bitmap	- Pointer to the bitmap tag (or nullptr if no bitmap was found).

Returns

The resolved filter mode that should actually be used.

Author

Claude (Opus 4.7)

Here is the caller graph for this function:

resolve_min_filter()

material_filter_modes resolve_min_filter	(	material_filter_modes	material_filter,
		bitmap *	bitmap_tag
	)

Resolves the effective minification filter mode by combining the material's requested filter mode with the bitmap tag's filter mode and force flag.

If the bitmap has its force_min_filtering_mode flag set OR the material asks to inherit, the bitmap's filter mode wins. Otherwise the material's choice wins. Used by compute_sampler_flags_for_texture.

Parameters

material_filter	- The material's per-texture filter mode setting.
bitmap	- Pointer to the bitmap tag (or nullptr if no bitmap was found).

Returns

The resolved filter mode that should actually be used.

Author

Claude (Opus 4.7)

Here is the caller graph for this function:

resolve_mip_filter()

material_filter_modes resolve_mip_filter	(	material_filter_modes	material_filter,
		bitmap *	bitmap_tag
	)

Resolves the effective mip filter mode using the same inheritance rules as resolve_min_filter, but consulting the mip-specific tag fields and force flag.

Parameters

material_filter	- The material's per-texture filter mode setting.
bitmap	- Pointer to the bitmap tag (or nullptr if no bitmap was found).

Returns

The resolved filter mode that should actually be used.

Author

Claude (Opus 4.7)

Here is the caller graph for this function:
