Base class for 2D primitive widgets. More...

#include <ui.h>

Inheritance diagram for BlamUIWidget_2DPrimitive:

Collaboration diagram for BlamUIWidget_2DPrimitive:

Classes
struct	Blam2DLine

struct	Blam2DTriangle

struct	Blam2DVertex

Public Member Functions
	BlamUIWidget_2DPrimitive (BlamWidgetType _type, BlamUIWidget_Group *_parent)
	Constructs a new 2D Primitive widget. More...

	~BlamUIWidget_2DPrimitive ()

void	Draw () override
	Draws the widget on-screen. More...

void	ShowImGuiPropertyEditor () override
	Displays an ImGUI-based property editor. More...

void	UpdateMetrics () override
	Updates metrics for the widget. More...

void	SetHidden (bool new_hidden) override
	Sets the hidden state of the widget. More...

virtual void	GenerateManualObject ()
	Virtual method used to generate the manual object. More...

Public Member Functions inherited from BlamUIWidget
	BlamUIWidget (BlamWidgetType type)
	Constructs a new UI widget. More...

	BlamUIWidget (BlamWidgetType type, BlamUIWidget_Group *_parent)
	Constructs a new UI widget. More...

	BlamUIWidget (std::string type)
	Constructs a new UI widget. More...

	BlamUIWidget (std::string type, BlamUIWidget_Group *_parent)
	Constructs a new UI widget. More...

virtual	~BlamUIWidget ()

BlamWidgetType	GetType ()
	Retrieves the type of this widget. More...

virtual void	RefreshRelativePosition ()
	Updates the relative position of the widget, relative to its parent. More...

void	RefreshRelativePosition (int viewport_width, int viewport_height, BlamVector2 initial_position)
	Updates the relative position of the widget. More...

void	SetSize (BlamVector2 new_size)
	Sets the size of the widget. More...

virtual void	SetPosition (BlamVector2 new_position)
	Sets the position of the widget. More...

void	SetRotation (float new_rotation)
	Sets the rotation of the widget. More...

void	SetAnchorPosition (BlamWidgetAnchor new_anchor_position)
	Sets the anchor position of the widget. More...

void	MarkForUpdate ()
	Marks the widget as needing to be updated on the next draw call. More...

bool	IsMarkedForUpdate ()

void	SetMarkedForUpdate (bool _update)

BlamVector2	GetAbsolutePosition ()
	Retrieves the absolute position of the widget. More...

BlamWidgetAnchor	GetAnchorPosition ()
	Retrieves the anchor position of the widget. More...

bool	IsHidden ()
	Checks whether or not the widget is hidden. More...

std::string	GetCustomType ()
	Retrieves the custom type name of this widget. More...

Public Attributes
BlamColor	color = BlamColor(255, 255, 255)
	The color of the widget. More...

Public Attributes inherited from BlamUIWidget
std::string	display_name = "unnamed"
	The display name of the widget. More...

std::string	description = ""
	An optional description of the widget. More...

BlamVector2	position = { 0, 0 }
	The position of the widget, relative to its parent. More...

BlamVector2	size = { 100, 100 }
	The size of the widget, relative to its parent. More...

float	rotation = 0.0f
	The rotation of the widget, in degrees. More...

int	z_index = 0
	The Z index of the widget, where higher Z orders are drawn on top. More...

float	z_size = 1.0f
	The Z size of the widget. Mostly unused. More...

bool	auto_update = false
	Whether or not the widget should always update every frame. More...

Ogre::HlmsDatablock *	material = nullptr
	The datablock used by the widget, if applicable. More...

BlamUIWidget_Group *	parent = nullptr
	The parent group of this widget, if applicable. More...

bool	ignore_layout = false
	Whether or not this widget should ignore any layout positioning. More...

bool	hide_in_layout = false
	Whether or not this widget should be hidden within its layout. More...

bool	ignore_scale_factor = false
	Whether or not this widget should ignore the UI scale factor settings. More...

Protected Member Functions
void	AddVertex (float x, float y, float z)

void	AddTriangle (uint16_t x, uint16_t y, uint16_t z)

void	AddLine (uint16_t x, uint16_t y)

Protected Member Functions inherited from BlamUIWidget
int	GetAdjustedZIndex ()
	Retrieves the adjusted Z-index of the widget. More...

Protected Attributes
bgfx::VertexLayout	vertex_layout
	The vertex layout used for 2D primitives. More...

std::vector< Blam2DVertex >	vertices = std::vector<Blam2DVertex>()

std::vector< Blam2DTriangle >	triangles = std::vector<Blam2DTriangle>()

std::vector< Blam2DLine >	lines = std::vector<Blam2DLine>()

bgfx::VertexBufferHandle	vertex_buffer = { bgfx::kInvalidHandle }

bgfx::IndexBufferHandle	index_buffer = { bgfx::kInvalidHandle }

uint64_t	state_flags = 0

Ogre::ManualObject *	manual_object = nullptr
	The manual object associated with this widget. More...

Ogre::HlmsUnlitDatablock *	datablock = nullptr
	The datablock associated with this widget. More...

Ogre::SceneNode *	node = nullptr
	The scene node associated with this widget. More...

bool	last_hide_state = false
	The last known hidden state. Used to automatically update the widget visibility. More...

bool	needs_regen = true
	Whether or not the manual object needs to be regenerated. More...

Protected Attributes inherited from BlamUIWidget
BlamVector2	position_absolute = { 0, 0 }
	The absolute position of the widget on-screen. More...

BlamVector2	size_absolute = { 100, 100 }
	The absolute size of the widget on-screen. More...

Detailed Description

Base class for 2D primitive widgets.

This class acts as a base class for all types of 2D primitives, such as rectangles, ellipses, lines, and triangles.

Constructor & Destructor Documentation

◆ BlamUIWidget_2DPrimitive()

BlamUIWidget_2DPrimitive::BlamUIWidget_2DPrimitive	(	BlamWidgetType	_type,
		BlamUIWidget_Group *	_parent
	)

Constructs a new 2D Primitive widget.

Parameters

_type	- The type of this widget.
_parent	- The parent group that this widget belongs to.

Here is the call graph for this function:

◆ ~BlamUIWidget_2DPrimitive()

BlamUIWidget_2DPrimitive::~BlamUIWidget_2DPrimitive ( )

Here is the call graph for this function:

Member Function Documentation

◆ AddLine()

void BlamUIWidget_2DPrimitive::AddLine	(	uint16_t	x,
		uint16_t	y
	)

protected

Here is the caller graph for this function:

◆ AddTriangle()

void BlamUIWidget_2DPrimitive::AddTriangle	(	uint16_t	x,
		uint16_t	y,
		uint16_t	z
	)

protected

Here is the caller graph for this function:

◆ AddVertex()

void BlamUIWidget_2DPrimitive::AddVertex	(	float	x,
		float	y,
		float	z
	)

protected

Here is the caller graph for this function:

◆ Draw()

void BlamUIWidget_2DPrimitive::Draw ( )

overridevirtual

Draws the widget on-screen.

Reimplemented from BlamUIWidget.

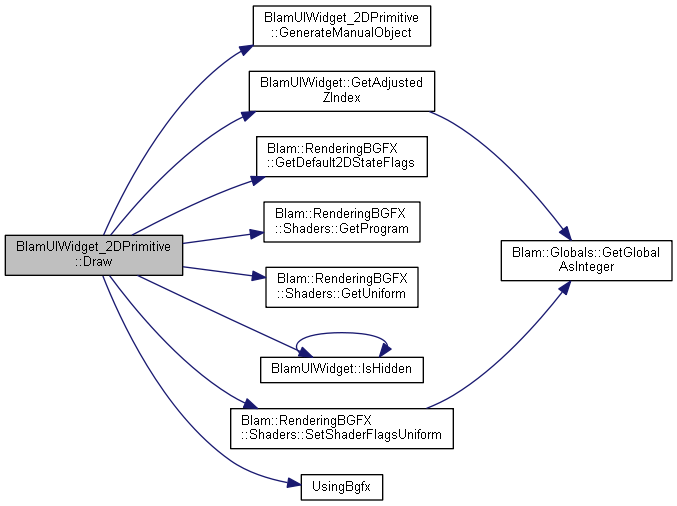

Here is the call graph for this function:

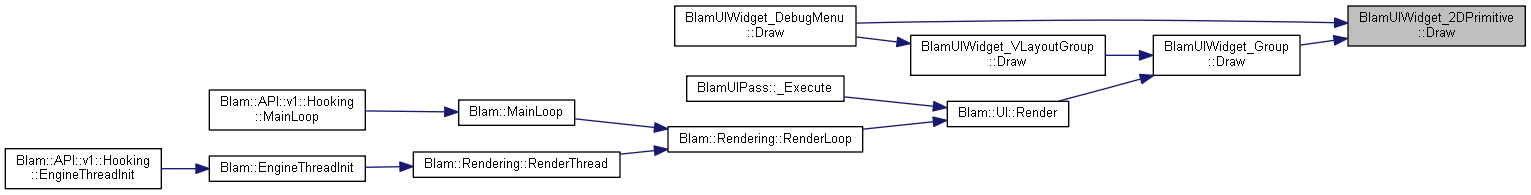

Here is the caller graph for this function:

◆ GenerateManualObject()

virtual void BlamUIWidget_2DPrimitive::GenerateManualObject ( )

inlinevirtual

Virtual method used to generate the manual object.

This method is overridden by any classes which inherit from this one, and is used to populate the vertices, triangles, and/or lines within the manual object as needed.

Reimplemented in BlamUIWidget_BasicLine, BlamUIWidget_BasicEllipse, and BlamUIWidget_BasicRectangle.

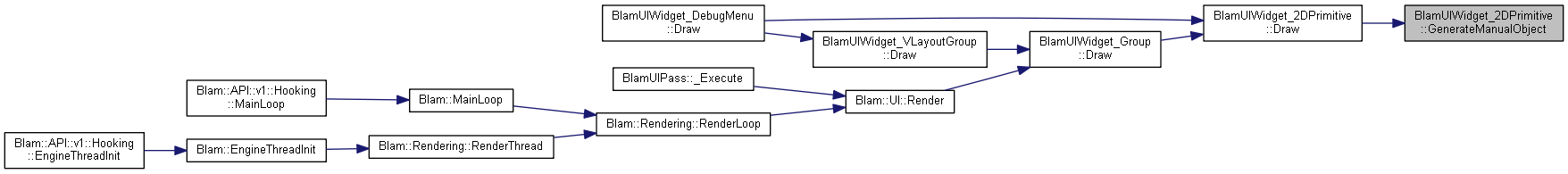

Here is the caller graph for this function:

◆ SetHidden()

void BlamUIWidget_2DPrimitive::SetHidden ( bool new_hidden )

overridevirtual

Sets the hidden state of the widget.

Parameters

new_hidden - Whether or not the widget should be hidden.

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

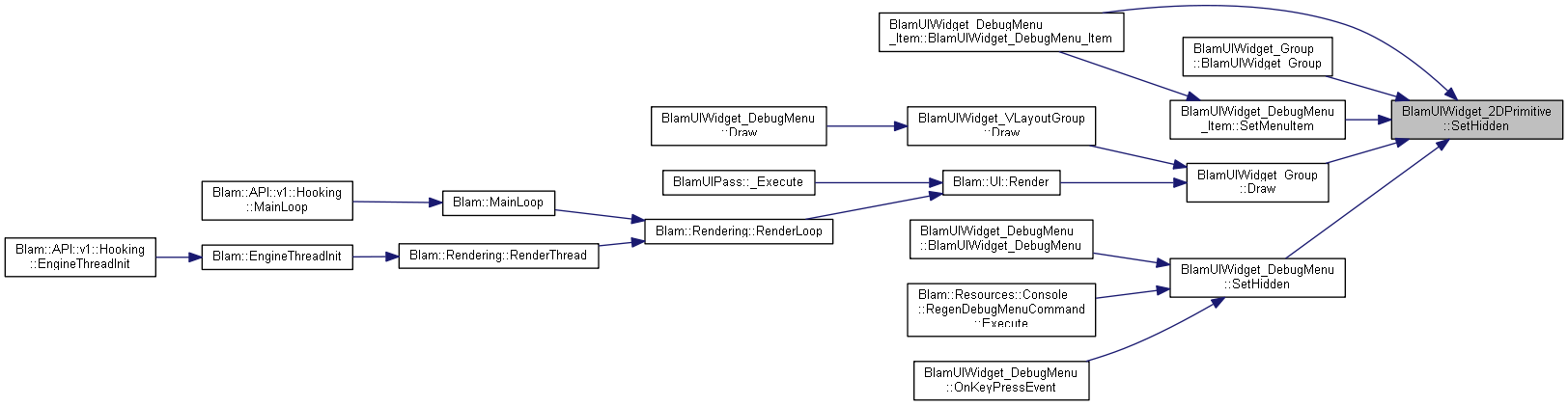

Here is the caller graph for this function:

◆ ShowImGuiPropertyEditor()

void BlamUIWidget_2DPrimitive::ShowImGuiPropertyEditor ( )

overridevirtual

Displays an ImGUI-based property editor.

Used in conjunction with the UI Editor window.

Reimplemented from BlamUIWidget.

Reimplemented in BlamUIWidget_BasicTriangle, BlamUIWidget_BasicLine, BlamUIWidget_BasicEllipse, and BlamUIWidget_BasicRectangle.

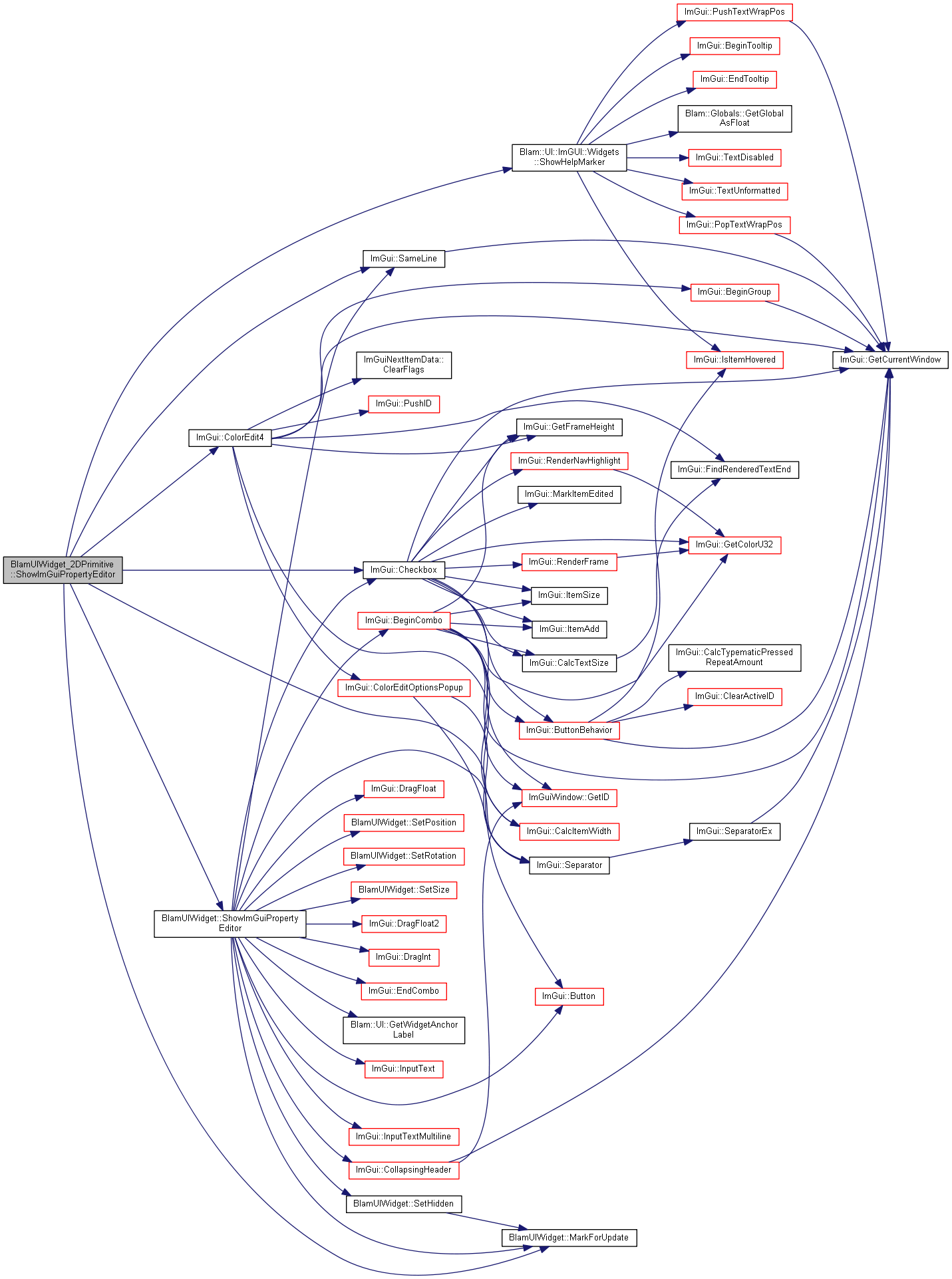

Here is the call graph for this function:

◆ UpdateMetrics()

void BlamUIWidget_2DPrimitive::UpdateMetrics ( )

overridevirtual

Updates metrics for the widget.

The term "metrics" as used in this method is generally up to an individual widget class to decide. However, in most cases, it will include position, size, rotation, and color.

Note: This should NOT be called from threads besides the rendering thread. To update metrics from other threads, use MarkForUpdate.

Reimplemented from BlamUIWidget.

Here is the call graph for this function:

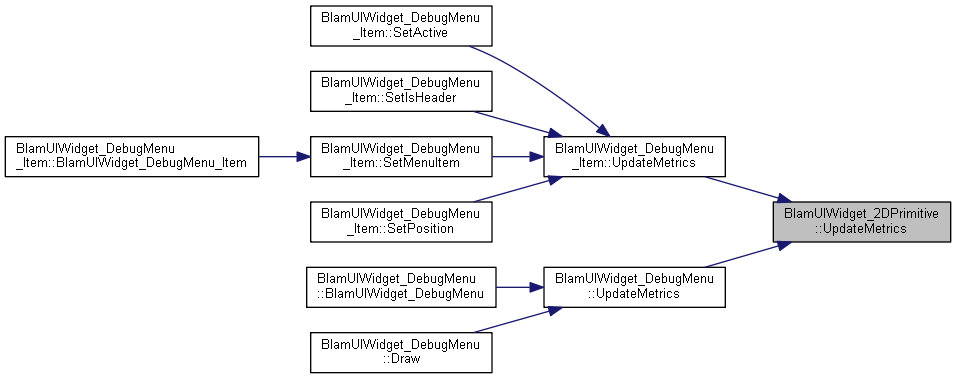

Here is the caller graph for this function:

Member Data Documentation

◆ color

BlamColor BlamUIWidget_2DPrimitive::color = BlamColor(255, 255, 255)

The color of the widget.

◆ datablock

Ogre::HlmsUnlitDatablock* BlamUIWidget_2DPrimitive::datablock = nullptr

protected

The datablock associated with this widget.

◆ index_buffer

bgfx::IndexBufferHandle BlamUIWidget_2DPrimitive::index_buffer = { bgfx::kInvalidHandle }

protected

◆ last_hide_state

bool BlamUIWidget_2DPrimitive::last_hide_state = false

protected

The last known hidden state. Used to automatically update the widget visibility.

◆ lines

std::vector<Blam2DLine> BlamUIWidget_2DPrimitive::lines = std::vector<Blam2DLine>()

protected

◆ manual_object

Ogre::ManualObject* BlamUIWidget_2DPrimitive::manual_object = nullptr

protected

The manual object associated with this widget.

◆ needs_regen

bool BlamUIWidget_2DPrimitive::needs_regen = true

protected

Whether or not the manual object needs to be regenerated.

◆ node

Ogre::SceneNode* BlamUIWidget_2DPrimitive::node = nullptr

protected

The scene node associated with this widget.

◆ state_flags

uint64_t BlamUIWidget_2DPrimitive::state_flags = 0

protected

◆ triangles

std::vector<Blam2DTriangle> BlamUIWidget_2DPrimitive::triangles = std::vector<Blam2DTriangle>()

protected

◆ vertex_buffer

bgfx::VertexBufferHandle BlamUIWidget_2DPrimitive::vertex_buffer = { bgfx::kInvalidHandle }

protected

◆ vertex_layout

bgfx::VertexLayout BlamUIWidget_2DPrimitive::vertex_layout

protected

The vertex layout used for 2D primitives.

◆ vertices

std::vector<Blam2DVertex> BlamUIWidget_2DPrimitive::vertices = std::vector<Blam2DVertex>()

protected

The documentation for this class was generated from the following files:

blam/components/ui/blam/ui.h
blam/components/ui/blam/widgets/basic/2d_primitive.cpp
