Class representing a basic rectangle widget. More...
#include <ui.h>
Inheritance diagram for BlamUIWidget_BasicRectangle: Collaboration diagram for BlamUIWidget_BasicRectangle:Public Member Functions | |
| BlamUIWidget_BasicRectangle (BlamUIWidget_Group *_parent) | |
| void | ShowImGuiPropertyEditor () override |
| Displays an ImGUI-based property editor. More... | |
| void | GenerateManualObject () override |
| Virtual method used to generate the manual object. More... | |
| Public Member Functions inherited from BlamUIWidget_2DPrimitive | |
| BlamUIWidget_2DPrimitive (BlamWidgetType _type, BlamUIWidget_Group *_parent) | |
| Constructs a new 2D Primitive widget. More... | |
| ~BlamUIWidget_2DPrimitive () | |
| void | Draw () override |
| Draws the widget on-screen. More... | |
| void | UpdateMetrics () override |
| Updates metrics for the widget. More... | |
| void | SetHidden (bool new_hidden) override |
| Sets the hidden state of the widget. More... | |
| Public Member Functions inherited from BlamUIWidget | |
| BlamUIWidget (BlamWidgetType type) | |
| Constructs a new UI widget. More... | |
| BlamUIWidget (BlamWidgetType type, BlamUIWidget_Group *_parent) | |
| Constructs a new UI widget. More... | |
| BlamUIWidget (std::string type) | |
| Constructs a new UI widget. More... | |
| BlamUIWidget (std::string type, BlamUIWidget_Group *_parent) | |
| Constructs a new UI widget. More... | |
| virtual | ~BlamUIWidget () |
| BlamWidgetType | GetType () |
| Retrieves the type of this widget. More... | |
| virtual void | RefreshRelativePosition () |
| Updates the relative position of the widget, relative to its parent. More... | |
| void | RefreshRelativePosition (int viewport_width, int viewport_height, BlamVector2 initial_position) |
| Updates the relative position of the widget. More... | |
| void | SetSize (BlamVector2 new_size) |
| Sets the size of the widget. More... | |
| virtual void | SetPosition (BlamVector2 new_position) |
| Sets the position of the widget. More... | |
| void | SetRotation (float new_rotation) |
| Sets the rotation of the widget. More... | |
| void | SetAnchorPosition (BlamWidgetAnchor new_anchor_position) |
| Sets the anchor position of the widget. More... | |
| void | MarkForUpdate () |
| Marks the widget as needing to be updated on the next draw call. More... | |
| bool | IsMarkedForUpdate () |
| void | SetMarkedForUpdate (bool _update) |
| BlamVector2 | GetAbsolutePosition () |
| Retrieves the absolute position of the widget. More... | |
| BlamWidgetAnchor | GetAnchorPosition () |
| Retrieves the anchor position of the widget. More... | |
| bool | IsHidden () |
| Checks whether or not the widget is hidden. More... | |
| std::string | GetCustomType () |
| Retrieves the custom type name of this widget. More... | |
Public Attributes | |
| bool | solid = true |
| Whether or not this primitive is solid, or an outline. More... | |
| int | thickness = 1 |
The thickness of the primitive. Only used when solid is set to false. More... | |
| Public Attributes inherited from BlamUIWidget_2DPrimitive | |
| BlamColor | color = BlamColor(255, 255, 255) |
| The color of the widget. More... | |
| Public Attributes inherited from BlamUIWidget | |
| std::string | display_name = "unnamed" |
| The display name of the widget. More... | |
| std::string | description = "" |
| An optional description of the widget. More... | |
| BlamVector2 | position = { 0, 0 } |
| The position of the widget, relative to its parent. More... | |
| BlamVector2 | size = { 100, 100 } |
| The size of the widget, relative to its parent. More... | |
| float | rotation = 0.0f |
| The rotation of the widget, in degrees. More... | |
| int | z_index = 0 |
| The Z index of the widget, where higher Z orders are drawn on top. More... | |
| float | z_size = 1.0f |
| The Z size of the widget. Mostly unused. More... | |
| bool | auto_update = false |
| Whether or not the widget should always update every frame. More... | |
| Ogre::HlmsDatablock * | material = nullptr |
| The datablock used by the widget, if applicable. More... | |
| BlamUIWidget_Group * | parent = nullptr |
| The parent group of this widget, if applicable. More... | |
| bool | ignore_layout = false |
| Whether or not this widget should ignore any layout positioning. More... | |
| bool | hide_in_layout = false |
| Whether or not this widget should be hidden within its layout. More... | |
| bool | ignore_scale_factor = false |
| Whether or not this widget should ignore the UI scale factor settings. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from BlamUIWidget_2DPrimitive | |
| void | AddVertex (float x, float y, float z) |
| void | AddTriangle (uint16_t x, uint16_t y, uint16_t z) |
| void | AddLine (uint16_t x, uint16_t y) |
| Protected Member Functions inherited from BlamUIWidget | |
| int | GetAdjustedZIndex () |
| Retrieves the adjusted Z-index of the widget. More... | |
| Protected Attributes inherited from BlamUIWidget_2DPrimitive | |
| bgfx::VertexLayout | vertex_layout |
| The vertex layout used for 2D primitives. More... | |
| std::vector< Blam2DVertex > | vertices = std::vector<Blam2DVertex>() |
| std::vector< Blam2DTriangle > | triangles = std::vector<Blam2DTriangle>() |
| std::vector< Blam2DLine > | lines = std::vector<Blam2DLine>() |
| bgfx::VertexBufferHandle | vertex_buffer = { bgfx::kInvalidHandle } |
| bgfx::IndexBufferHandle | index_buffer = { bgfx::kInvalidHandle } |
| uint64_t | state_flags = 0 |
| Ogre::ManualObject * | manual_object = nullptr |
| The manual object associated with this widget. More... | |
| Ogre::HlmsUnlitDatablock * | datablock = nullptr |
| The datablock associated with this widget. More... | |
| Ogre::SceneNode * | node = nullptr |
| The scene node associated with this widget. More... | |
| bool | last_hide_state = false |
| The last known hidden state. Used to automatically update the widget visibility. More... | |
| bool | needs_regen = true |
| Whether or not the manual object needs to be regenerated. More... | |
| Protected Attributes inherited from BlamUIWidget | |
| BlamVector2 | position_absolute = { 0, 0 } |
| The absolute position of the widget on-screen. More... | |
| BlamVector2 | size_absolute = { 100, 100 } |
| The absolute size of the widget on-screen. More... | |
Class representing a basic rectangle widget.
This widget allows for the displaying of a generic colored rectangle on-screen, which can be displayed either as an outline or as a solid box.
| BlamUIWidget_BasicRectangle::BlamUIWidget_BasicRectangle | ( | BlamUIWidget_Group * | _parent | ) |
|
overridevirtual |
Virtual method used to generate the manual object.
This method is overridden by any classes which inherit from this one, and is used to populate the vertices, triangles, and/or lines within the manual object as needed.
Reimplemented from BlamUIWidget_2DPrimitive.

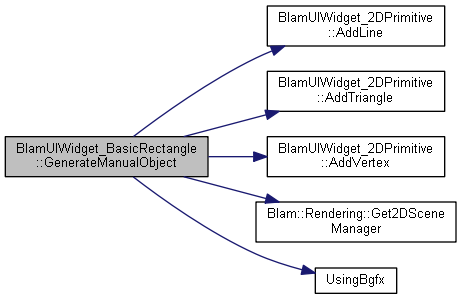

Here is the call graph for this function:
|
overridevirtual |
Displays an ImGUI-based property editor.
Used in conjunction with the UI Editor window.
Reimplemented from BlamUIWidget_2DPrimitive.

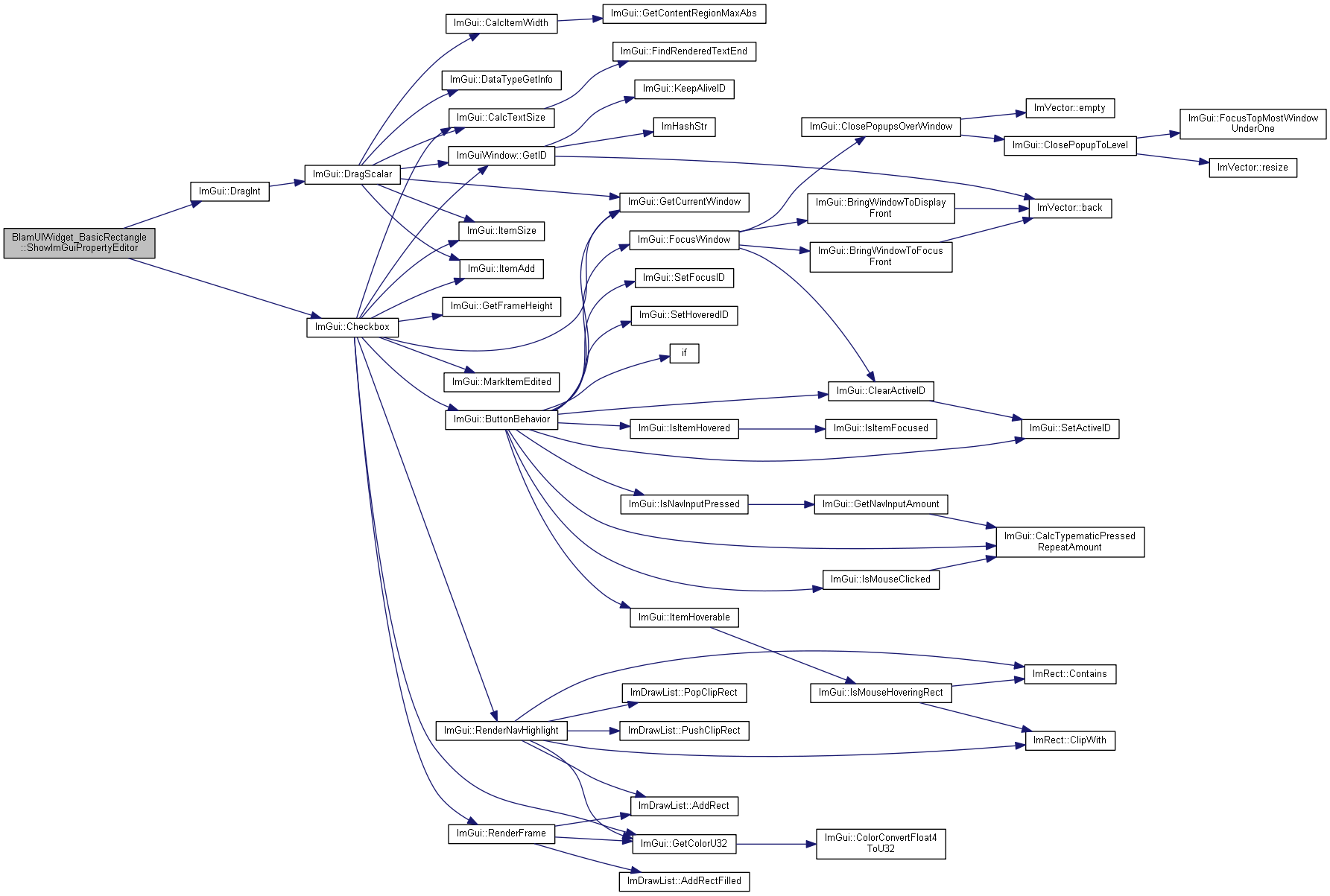

Here is the call graph for this function: Here is the caller graph for this function:| bool BlamUIWidget_BasicRectangle::solid = true |
Whether or not this primitive is solid, or an outline.
| int BlamUIWidget_BasicRectangle::thickness = 1 |
The thickness of the primitive. Only used when solid is set to false.
