Class for Euler rotations. More...

#include <OgreEuler.h>

Public Member Functions
	Euler ()
	Default constructor. More...

	Euler (const Radian &y, const Radian &p=Radian(0.0f), const Radian &r=Radian(0.0f))
	Constructor which takes yaw, pitch and roll values. More...

	Euler (Real y, Real p=0.0f, Real r=0.0f)
	Constructor which takes yaw, pitch and roll values as reals (radians). More...

	Euler (const Quaternion &quaternion)
	Default constructor with presets. More...

	Euler (const Matrix3 &matrix)

Radian	yaw () const
	Get the Yaw angle. More...

Radian	pitch () const
	Get the Pitch angle. More...

Radian	roll () const
	Get the Roll angle. More...

Euler &	setYaw (Radian y)
	Set the yaw. More...

Euler &	setPitch (Radian p)
	Set the pitch. More...

Euler &	setRoll (Radian r)
	Set the roll. More...

Euler &	orientation (const Radian &y, const Radian &p, const Radian &r)
	Set all rotations at once. More...

Euler &	yaw (const Radian &y)
	Apply a relative yaw. More...

Euler &	pitch (const Radian &p)
	Apply a relative pitch. More...

Euler &	roll (const Radian &r)
	Apply a relative roll. More...

Euler &	rotate (const Radian &y, const Radian &p, const Radian &r)
	Apply all relative rotations at once. More...

Vector3	forward () const
	Get a vector pointing forwards. More...

Vector3	right () const
	Get a vector pointing to the right. More...

Vector3	up () const
	Get a vector pointing up. More...

Quaternion	toQuaternion () const
	Calculate the quaternion of the euler object. More...

	operator Quaternion () const
	Casting operator. This allows any ogre function that wants a Quaternion to accept a Euler instead. More...

Euler &	fromQuaternion (const Quaternion &quaternion)
	Calculate the current euler angles of a given quaternion object. More...

Euler &	fromMatrix3 (const Matrix3 &matrix)
	Calculate the current euler angles of a given matrix object. More...

Euler &	direction (const Vector3 &v, bool setYaw=true, bool setPitch=true)
	Set the yaw and pitch to face in the given direction. More...

Euler &	normalise (bool normYaw=true, bool normPitch=true, bool normRoll=true)
	Normalise the selected rotations to be within the +/-180 degree range. More...

Euler	rotationTo (const Vector3 &dir, bool setYaw=true, bool setPitch=true, bool shortest=true) const
	Return the relative euler angles required to rotate from the current forward direction to the specified dir vector. More...

Euler &	limitYaw (const Radian &limit)
	Clamp the yaw angle to a range of +/-limit. More...

Euler &	limitPitch (const Radian &limit)
	Clamp the pitch angle to a range of +/-limit. More...

Euler &	limitRoll (const Radian &limit)
	Clamp the roll angle to a range of +/-limit. More...

Euler	operator+ (const Euler &rhs) const
	Add two euler objects. More...

Euler	operator- (const Euler &rhs) const
	Subtract two euler objects. More...

Euler	operator* (Real rhs) const
	Interpolate the euler angles by rhs. More...

Quaternion	operator* (Euler rhs) const
	Multiply two eulers. More...

Vector3	operator* (const Vector3 &rhs) const
	Apply the euler rotation to the vector rhs. More...

Euler &	operator= (const Euler &src)
	Copy assignment operator (Euler) More...

Euler &	operator= (const Quaternion &quaternion)
	Copy assignment operator (Quaternion) More...

Euler &	operator= (const Matrix3 &matrix)
	Copy assignment operator (Matrix3) More...

Protected Member Functions
void	wrapAngle (Radian &angle)

void	limitAngle (Radian &angle, const Radian &limit)

Protected Attributes
Radian	mYaw
	Rotation around the Y axis. More...

Radian	mPitch
	Rotation around the X axis. More...

Radian	mRoll
	Rotation around the Z axis. More...

Quaternion	mCachedQuaternion
	Cached quaternion equivalent of this euler object. More...

bool	mChanged
	Is the cached quaternion out of date? More...

Friends
std::ostream &	operator<< (std::ostream &o, const Euler &e)
	Stream operator, for printing the euler component angles to a stream. More...

Euler	operator* (Real lhs, const Euler &rhs)
	Interpolate the euler angle by lhs. More...

bool	operator== (const Euler &left, const Euler &right)

bool	operator!= (const Euler &left, const Euler &right)

bool	sameOrientation (const Euler &left, const Euler &right)

Detailed Description

Class for Euler rotations.

Yaw is a rotation around the Y axis.	Pitch is a rotation around the X axis.	Roll is a rotation around the Z axis.

Constructor & Destructor Documentation

◆ Euler() [1/5]

Ogre::Euler::Euler ( )

inline

Default constructor.

Here is the caller graph for this function:

◆ Euler() [2/5]

Ogre::Euler::Euler	(	const Radian &	y,
		const Radian &	p = `Radian(0.0f)`,
		const Radian &	r = `Radian(0.0f)`
	)

inline

Constructor which takes yaw, pitch and roll values.

Parameters

y	Starting value for yaw
p	Starting value for pitch
r	Starting value for roll

◆ Euler() [3/5]

Ogre::Euler::Euler	(	Real	y,
		Real	p = `0.0f`,
		Real	r = `0.0f`
	)

inline

Constructor which takes yaw, pitch and roll values as reals (radians).

Parameters

y	Starting value for yaw [radian]
p	Starting value for pitch [radian]
r	Starting value for roll [radian]

◆ Euler() [4/5]

Ogre::Euler::Euler ( const Quaternion & quaternion )

inlineexplicit

Default constructor with presets.

Parameters

quaternion Calculate starting values from this quaternion

Here is the call graph for this function:

◆ Euler() [5/5]

Ogre::Euler::Euler ( const Matrix3 & matrix )

inlineexplicit

Here is the call graph for this function:

Member Function Documentation

◆ direction()

Euler& Ogre::Euler::direction	(	const Vector3 &	v,
		bool	setYaw = `true`,
		bool	setPitch = `true`
	)

inline

Set the yaw and pitch to face in the given direction.

The direction doesn't need to be normalised. Roll is always unaffected.

Parameters

setYaw	If false, the yaw isn't changed.
setPitch	If false, the pitch isn't changed.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ forward()

Vector3 Ogre::Euler::forward ( ) const

inline

Get a vector pointing forwards.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fromMatrix3()

Euler& Ogre::Euler::fromMatrix3 ( const Matrix3 & matrix )

inline

Calculate the current euler angles of a given matrix object.

Parameters

matrix Matrix3 which is used to calculate current euler angles.

Here is the caller graph for this function:

◆ fromQuaternion()

Euler& Ogre::Euler::fromQuaternion ( const Quaternion & quaternion )

inline

Calculate the current euler angles of a given quaternion object.

Parameters

quaternion Quaternion which is used to calculate current euler angles.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ limitAngle()

void Ogre::Euler::limitAngle	(	Radian &	angle,
		const Radian &	limit
	)

inlineprotected

Here is the caller graph for this function:

◆ limitPitch()

Euler& Ogre::Euler::limitPitch ( const Radian & limit )

inline

Clamp the pitch angle to a range of +/-limit.

Here is the call graph for this function:

◆ limitRoll()

Euler& Ogre::Euler::limitRoll ( const Radian & limit )

inline

Clamp the roll angle to a range of +/-limit.

Here is the call graph for this function:

◆ limitYaw()

Euler& Ogre::Euler::limitYaw ( const Radian & limit )

inline

Clamp the yaw angle to a range of +/-limit.

Here is the call graph for this function:

◆ normalise()

Euler& Ogre::Euler::normalise	(	bool	normYaw = `true`,
		bool	normPitch = `true`,
		bool	normRoll = `true`
	)

inline

Normalise the selected rotations to be within the +/-180 degree range.

The normalise uses a wrap around, so for example a yaw of 360 degrees becomes 0 degrees, and -190 degrees becomes 170.

Parameters

normYaw	If false, the yaw isn't normalized.
normPitch	If false, the pitch isn't normalized.
normRoll	If false, the roll isn't normalized.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator Quaternion()

Ogre::Euler::operator Quaternion ( ) const

inline

Casting operator. This allows any ogre function that wants a Quaternion to accept a Euler instead.

Here is the call graph for this function:

◆ operator*() [1/3]

Vector3 Ogre::Euler::operator* ( const Vector3 & rhs ) const

inline

Apply the euler rotation to the vector rhs.

Here is the call graph for this function:

◆ operator*() [2/3]

Quaternion Ogre::Euler::operator* ( Euler rhs ) const

inline

Multiply two eulers.

This has the same effect as multiplying quaternions.

Returns: The result is a quaternion.

Here is the call graph for this function:

◆ operator*() [3/3]

Euler Ogre::Euler::operator* ( Real rhs ) const

inline

Interpolate the euler angles by rhs.

Here is the call graph for this function:

◆ operator+()

Euler Ogre::Euler::operator+ ( const Euler & rhs ) const

inline

Add two euler objects.

Here is the call graph for this function:

◆ operator-()

Euler Ogre::Euler::operator- ( const Euler & rhs ) const

inline

Subtract two euler objects.

This finds the difference as relative angles.

Here is the call graph for this function:

◆ operator=() [1/3]

Euler& Ogre::Euler::operator= ( const Euler & src )

inline

Copy assignment operator (Euler)

Here is the call graph for this function:

◆ operator=() [2/3]

Euler& Ogre::Euler::operator= ( const Matrix3 & matrix )

inline

Copy assignment operator (Matrix3)

Here is the call graph for this function:

◆ operator=() [3/3]

Euler& Ogre::Euler::operator= ( const Quaternion & quaternion )

inline

Copy assignment operator (Quaternion)

Here is the call graph for this function:

◆ orientation()

Euler& Ogre::Euler::orientation	(	const Radian &	y,
		const Radian &	p,
		const Radian &	r
	)

inline

Set all rotations at once.

Parameters

y	New value for yaw
p	New value for pitch
r	New value for roll

Here is the caller graph for this function:

◆ pitch() [1/2]

Radian Ogre::Euler::pitch ( ) const

inline

Get the Pitch angle.

Here is the caller graph for this function:

◆ pitch() [2/2]

Euler& Ogre::Euler::pitch ( const Radian & p )

inline

Apply a relative pitch.

Parameters

p	Angle to add on current pitch

◆ right()

Vector3 Ogre::Euler::right ( ) const

inline

Get a vector pointing to the right.

Here is the call graph for this function:

◆ roll() [1/2]

Radian Ogre::Euler::roll ( ) const

inline

Get the Roll angle.

Here is the caller graph for this function:

◆ roll() [2/2]

Euler& Ogre::Euler::roll ( const Radian & r )

inline

Apply a relative roll.

Parameters

r	Angle to add on current roll

◆ rotate()

Euler& Ogre::Euler::rotate	(	const Radian &	y,
		const Radian &	p,
		const Radian &	r
	)

inline

Apply all relative rotations at once.

Parameters

y	Angle to add on current yaw
p	Angle to add on current pitch
r	Angle to add on current roll

◆ rotationTo()

Euler Ogre::Euler::rotationTo	(	const Vector3 &	dir,
		bool	setYaw = `true`,
		bool	setPitch = `true`,
		bool	shortest = `true`
	)		const

inline

Return the relative euler angles required to rotate from the current forward direction to the specified dir vector.

The result euler can then be added to the current euler to immediately face dir. The rotation won't flip upside down then roll instead of a 180 degree yaw.

Parameters

setYaw	If false, the angle is set to 0. If true, the angle is calculated.
setPitch	If false, the angle is set to 0. If true, the angle is calculated.
shortest	If false, the full value of each angle is used. If true, the angles are normalised and the shortest rotation is found to face the correct direction. For example, when false a yaw of 1000 degrees and a dir of (0,0,-1) will return a -1000 degree yaw. When true, the same yaw and dir would give 80 degrees (1080 degrees faces the same way as (0,0,-1).

Here is the call graph for this function:

◆ setPitch()

Euler& Ogre::Euler::setPitch ( Radian p )

inline

Set the pitch.

Parameters

p	New value for pitch

Here is the caller graph for this function:

◆ setRoll()

Euler& Ogre::Euler::setRoll ( Radian r )

inline

Set the roll.

Parameters

r	New value for roll

Here is the caller graph for this function:

◆ setYaw()

Euler& Ogre::Euler::setYaw ( Radian y )

inline

Set the yaw.

Parameters

y	New value for yaw

Here is the caller graph for this function:

◆ toQuaternion()

Quaternion Ogre::Euler::toQuaternion ( ) const

inline

Calculate the quaternion of the euler object.

The result is cached, it is only recalculated when the component euler angles are changed.

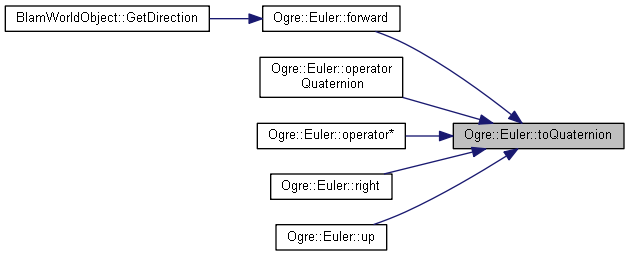

Here is the caller graph for this function:

◆ up()

Vector3 Ogre::Euler::up ( ) const

inline

Get a vector pointing up.

Here is the call graph for this function:

◆ wrapAngle()

void Ogre::Euler::wrapAngle ( Radian & angle )

inlineprotected

Here is the caller graph for this function:

◆ yaw() [1/2]

Radian Ogre::Euler::yaw ( ) const

inline

Get the Yaw angle.

Here is the caller graph for this function:

◆ yaw() [2/2]

Euler& Ogre::Euler::yaw ( const Radian & y )

inline

Apply a relative yaw.

Parameters

y	Angle to add on current yaw

Friends And Related Function Documentation

◆ operator!=

bool operator!=	(	const Euler &	left,
		const Euler &	right
	)

friend

◆ operator*

Euler operator*	(	Real	lhs,
		const Euler &	rhs
	)

friend

Interpolate the euler angle by lhs.

◆ operator<<

std::ostream& operator<<	(	std::ostream &	o,
		const Euler &	e
	)

friend

Stream operator, for printing the euler component angles to a stream.

◆ operator==

bool operator==	(	const Euler &	left,
		const Euler &	right
	)

friend

◆ sameOrientation

bool sameOrientation	(	const Euler &	left,
		const Euler &	right
	)

friend

Member Data Documentation

◆ mCachedQuaternion

Quaternion Ogre::Euler::mCachedQuaternion

mutableprotected

Cached quaternion equivalent of this euler object.

◆ mChanged

bool Ogre::Euler::mChanged

mutableprotected

Is the cached quaternion out of date?

◆ mPitch

Radian Ogre::Euler::mPitch

protected

Rotation around the X axis.

◆ mRoll

Radian Ogre::Euler::mRoll

protected

Rotation around the Z axis.

◆ mYaw

Radian Ogre::Euler::mYaw

protected

Rotation around the Y axis.

The documentation for this class was generated from the following file:

blam/components/3rdparty/ogre2/OgreEuler.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Euler() [1/5]

◆ Euler() [2/5]

◆ Euler() [3/5]

◆ Euler() [4/5]

◆ Euler() [5/5]

Member Function Documentation

◆ direction()

◆ forward()

◆ fromMatrix3()

◆ fromQuaternion()

◆ limitAngle()

◆ limitPitch()

◆ limitRoll()

◆ limitYaw()

◆ normalise()

◆ operator Quaternion()

◆ operator*() [1/3]

◆ operator*() [2/3]

◆ operator*() [3/3]

◆ operator+()

◆ operator-()

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ orientation()

◆ pitch() [1/2]

◆ pitch() [2/2]

◆ right()

◆ roll() [1/2]

◆ roll() [2/2]

◆ rotate()

◆ rotationTo()

◆ setPitch()

◆ setRoll()

◆ setYaw()

◆ toQuaternion()

◆ up()

◆ wrapAngle()

◆ yaw() [1/2]

◆ yaw() [2/2]

Friends And Related Function Documentation

◆ operator!=

◆ operator*

◆ operator<<

◆ operator==

◆ sameOrientation

Member Data Documentation

◆ mCachedQuaternion

◆ mChanged

◆ mPitch

◆ mRoll

◆ mYaw
